Tractor · 2008Unverified

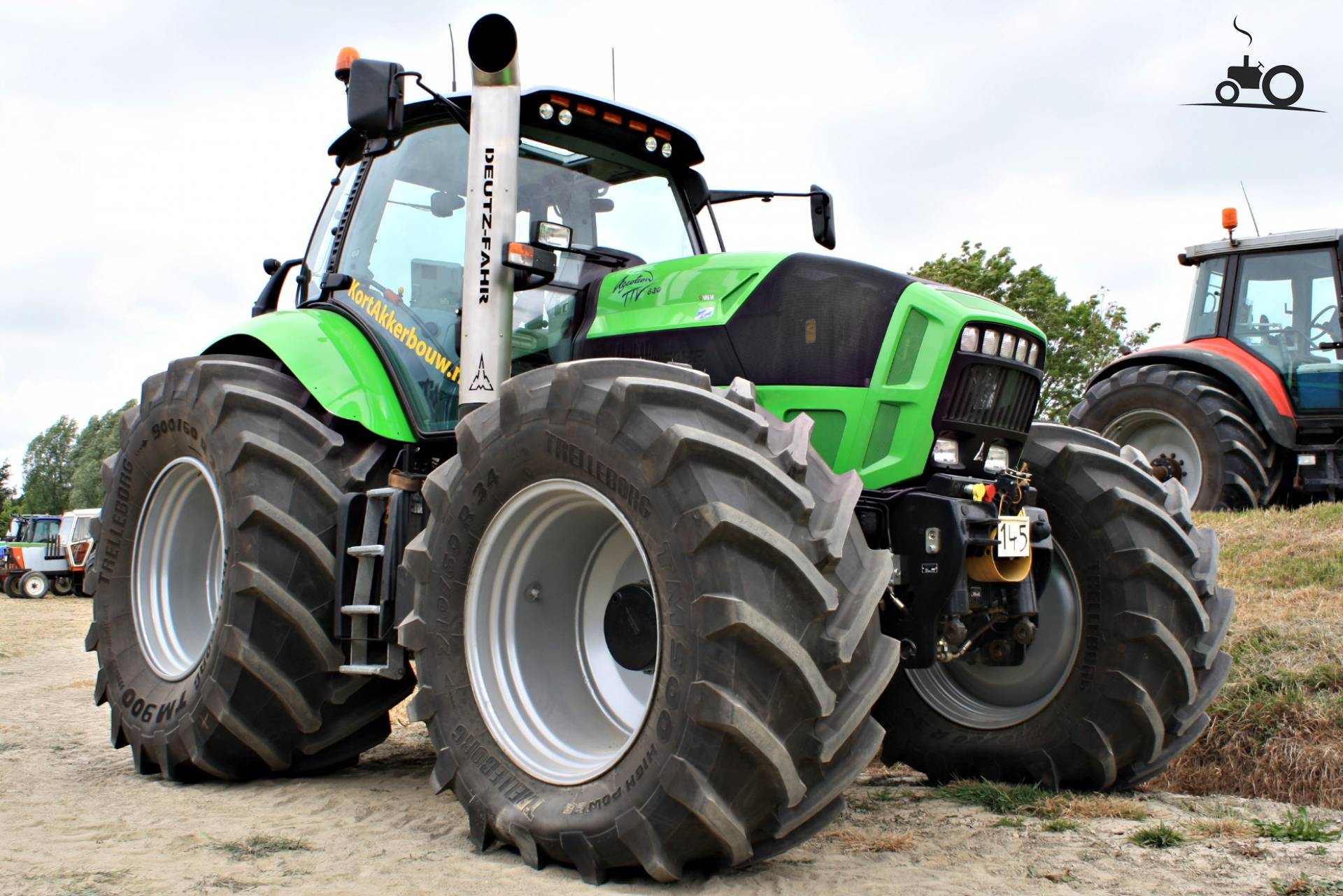

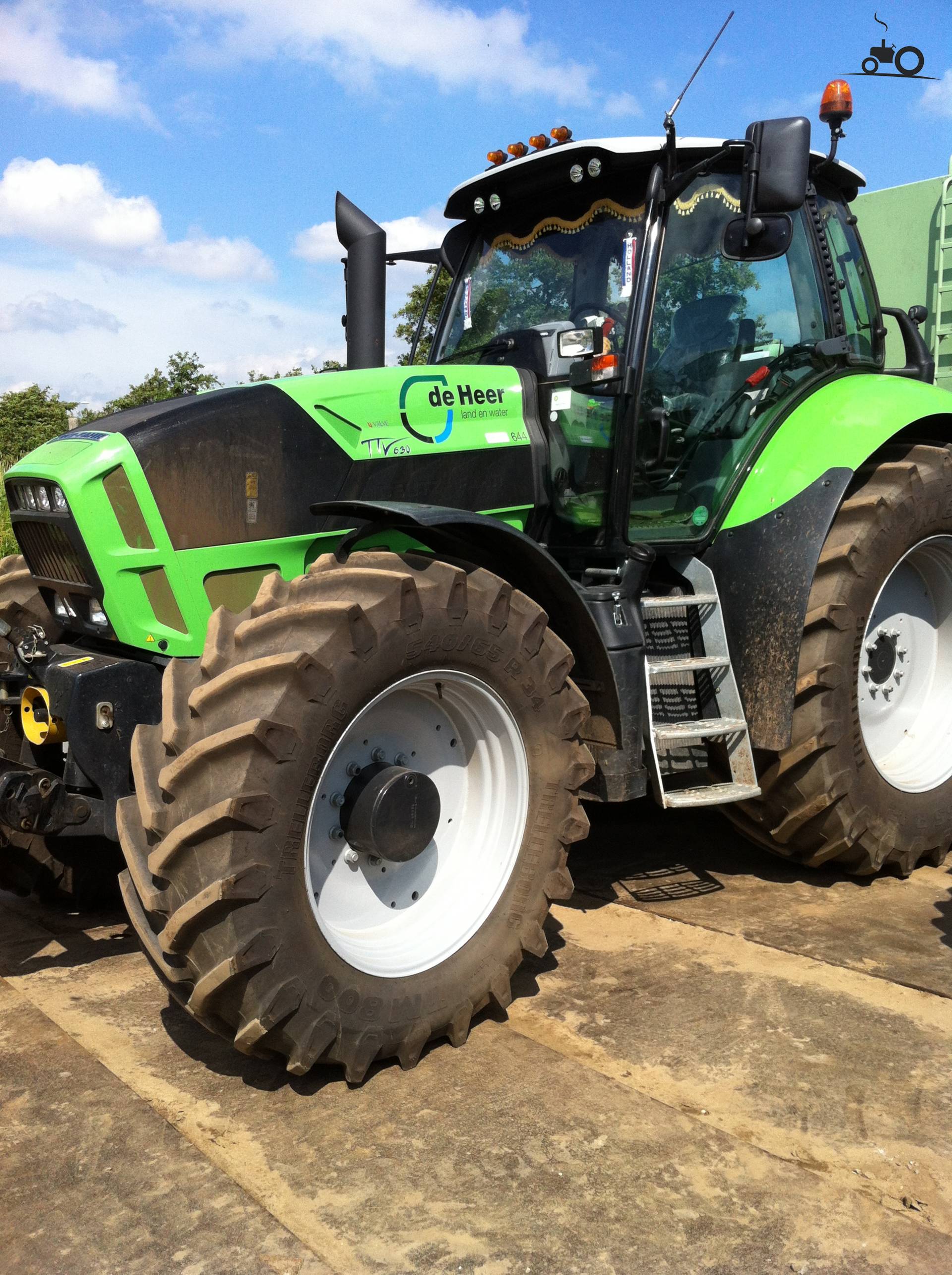

Deutz-Fahr Agrotron TTV 630
Deutz-Fahr Agrotron TTV 630 — Agrotron TTV Series · 203 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
203 hp
Weight
7225 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Four-wheel driveReference
Differential lockautomatic front and rear differential locksReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning. Mechical or semi-active pneumatic suspension optional.Reference
Engine
Deutz 6.1L 6-cyl dieselReference
Fuel tank305.1 LReference
Fuel tank434.9 LReference
Engine (net)151.4 kWReference
Deutz TCD 2012 L6 4VReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.1 LReference
Bore/Stroke101 x 126 mmReference
Rated Power (net)151.4 kWReference
Maximum Power (net)165.5 kWReference
Fuel systemcommon railReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Starter power4.0 kWReference
Oil change500 hReference
PTO & Hydraulics
Typeload sensingReference
Valves4 to 7Reference
Pump flow110.1 lpmReference
Pump flow160.1 lpmReference
Steering flow43.9 lpmReference
Rear TypeIII/IIReference
Controlposition and draft controlReference
Rear lift10000 kgReference
Front HitchIII/IIReference
Front lift4500 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/540E/1000/1000EReference
Engine RPM540@1946Reference
Engine RPM540E@1645Reference
Engine RPM1000@1946Reference
Engine RPM1000E@1645Reference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@1960Reference
Engine RPM1000E@1600Reference
Dimensions
Wheelbase281 cmReference
Weight7225 kgReference
Front tire480/70R30Reference
Rear tire580/70R42Reference
Standard tires (ag)Front: 480/70R30. Rear: 580/70R42Reference
Optional tires (ag)Front: 600/70R30. Rear: 710/70R38Reference
Optional tires (ag)Front: 600/70R30. Rear: 620/70R42Reference
Optional tires (ag)Front: 540/65R34. Rear: 650/65R42Reference
Optional tires (ag)Front: 600/70R30. Rear: 650/65R42Reference
Length480 cmReference
Width272 cmReference
Height (cab)315 cmReference
Electrical
Charging systemalternatorReference
Charging amps200Reference
Battery volts12Reference
Battery AH190Reference
Transmission
Oil capacity104.0 LReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
