Tractor · 2006Unverified

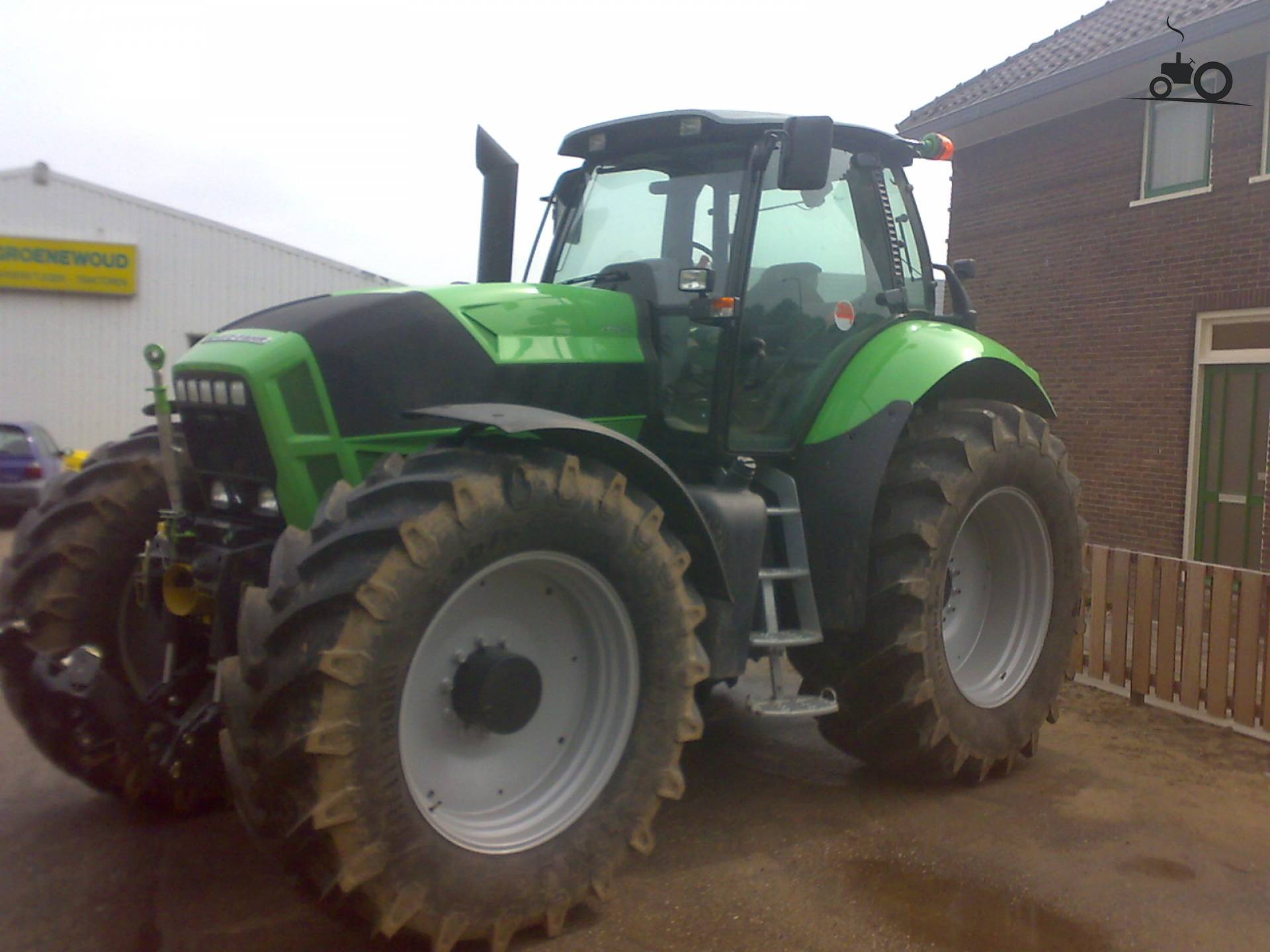

Deutz-Fahr Agrotron X710
Deutz-Fahr Agrotron X710 — Agrotron X Series · 216 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
216 hp
Weight
10435 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Deutz 7.1L 6-cyl dieselReference
Fuel tank425.1 LReference
Fuel tank584.8 LReference
Engine (gross)161.0 kWReference
Engine (max)184.0 kWReference
Deutz TCD2013 L06 4VReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.1 LReference
Bore/Stroke108 x 130 mmReference
Rated Power (gross)161.0 kWReference
Maximum Power (gross)184.0 kWReference
Fuel systemcommon railReference
Rated RPM2300Reference
Torque961.1 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Starter power4.0 kWReference
Oil capacity28.0 LReference
Transmission
40-speedReference
Gears40 forward and reverseReference
Six synchronized gears (1-6) in four power shift ranges (L/M/H/S) with power shuttle. Additional creeper range with four gears (1-4) in four ranges (L/M/H/S).Reference
PTO & Hydraulics
Typeload sensingReference
Pressure200.0 barReference
Pump flow120.0 lpmReference
Steering flow57.2 lpmReference
Steering press.185.0 barReference
Rear TypeIIIReference
Rear lift10500 kgReference
Front HitchIIReference
Front lift4998 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540E/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase309 cmReference
Weight10435 kgReference
Front tire520/70R34Reference
Rear tire710/70R42Reference
Standard tires (ag)Front: 520/70R34. Rear: 710/70R42Reference
Optional tires (ag)Front: 18.4R30. Rear: 20.8R42Reference
Optional tires (ag)Front: 18.4R34. Rear: 20.8R42Reference
Optional tires (ag)Front: 480/70R34. Rear: 650/85R38Reference
Optional tires (ag)Front: 520/70R30. Rear: 580/70R42Reference
Optional tires (ag)Front: 520/70R30. Rear: 650/65R42Reference
Length540 cmReference
Width275 cmReference
Height (cab)326 cmReference
Max weight14000 kgReference
Electrical
Charging systemalternatorReference
Charging amps200Reference
Battery volts12Reference
Battery AH180Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
