Tractor · 2008Unverified

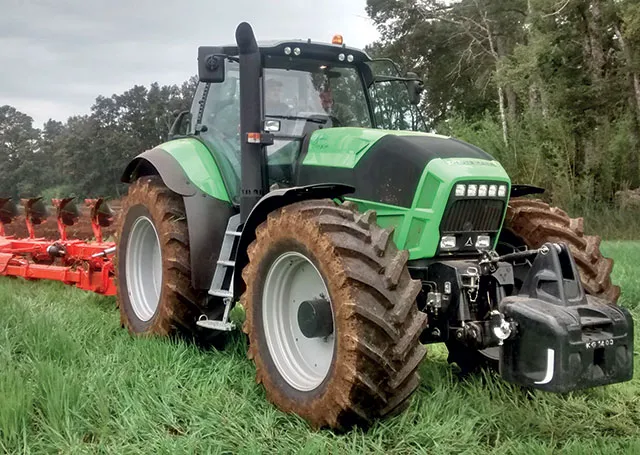

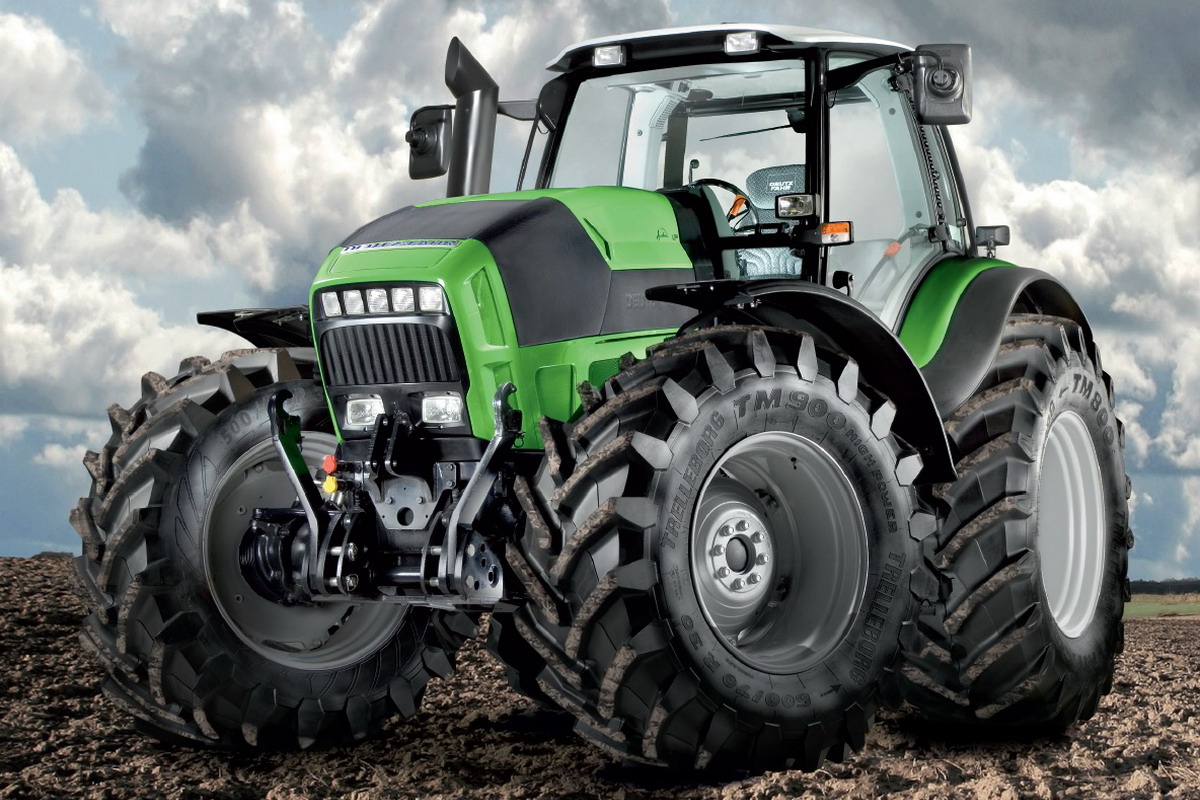

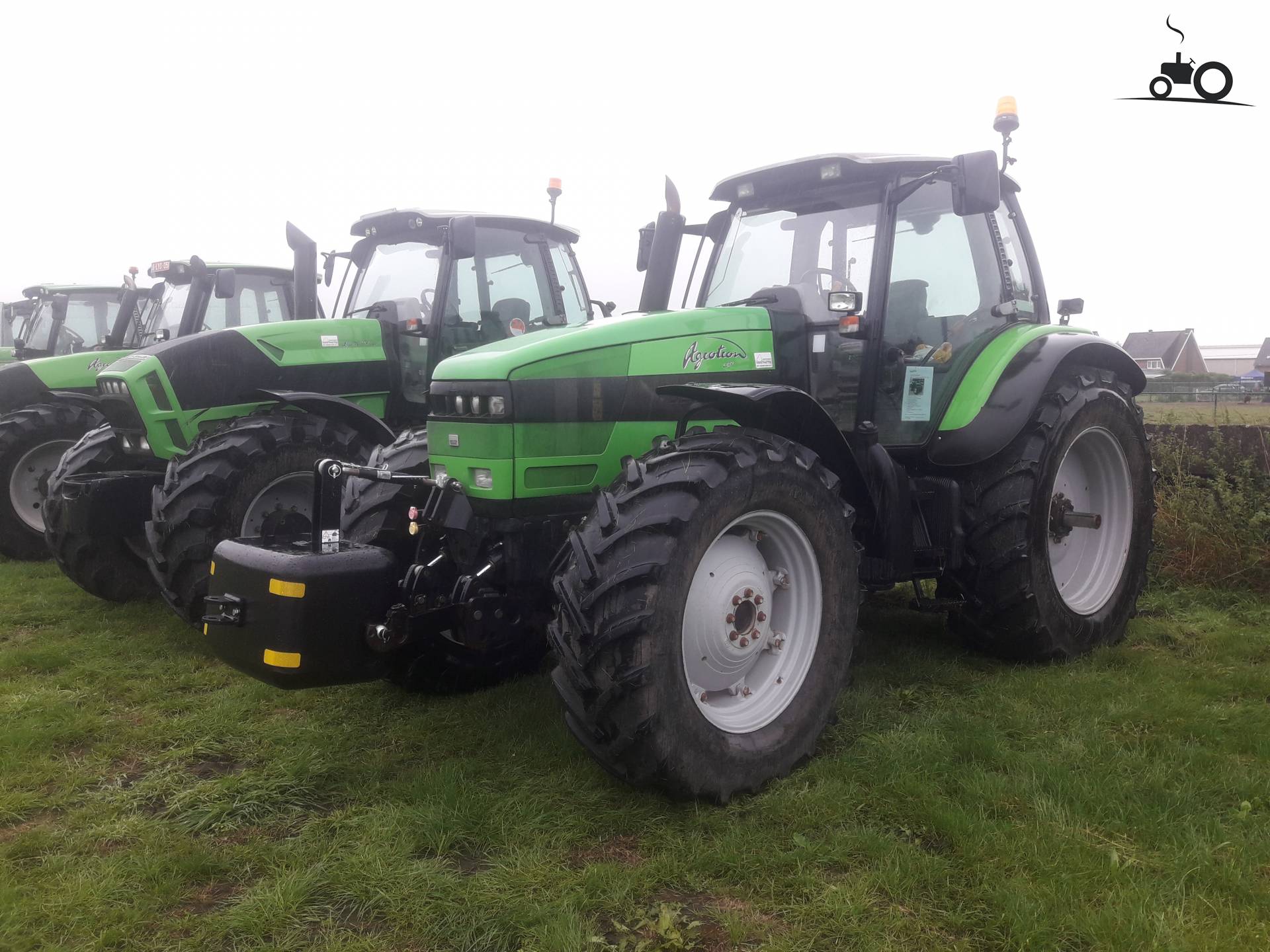

Deutz-Fahr Argotron L 720
Deutz-Fahr Argotron L 720 — Agrotron L Series · 211 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
211 hp
Weight
7520 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-Fahr (a part of SAME)Reference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Cab standard with air-conditioning.Reference
Engine
Deutz 7.1L 6-cyl dieselReference
Fuel tank380.0 LReference
Engine (gross)157.0 kWReference
Engine (max)162.0 kWReference
Deutz TCD2013L06Reference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.1 LReference
Bore/Stroke108 x 130 mmReference
Rated Power (gross)157.0 kWReference
Maximum Power (gross)162.0 kWReference
Rated RPM2350Reference
Torque836.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
27-speed power shiftReference
Typepower shiftReference
Gears27 forward and reverseReference
Nine power shift gears in three ranges.Reference
PTO & Hydraulics
Typeload sensingReference
Pump flow113.2 lpmReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase298 cmReference
Weight7520 kgReference
Front tire540/65R34Reference
Rear tire650/65R42Reference
Standard tires (ag)Front: 540/65R34. Rear: 650/65R42Reference
Length480 cmReference
Width255 cmReference
Height (cab)302 cmReference
Ground clearance61 cmReference
Front tread184 to 217 cmReference
Rear tread189 to 205 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
