Tractor · 1982Unverified

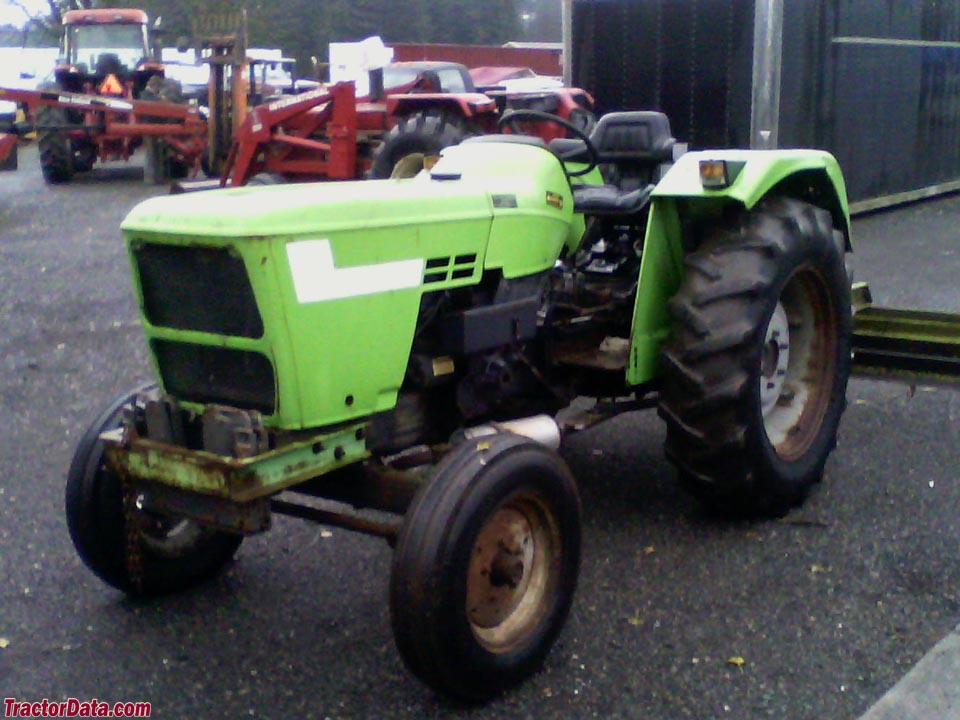

Deutz-Fahr D 3607
Deutz-Fahr D 3607 — 07 Series · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Weight
1930 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Two-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical drum brakesReference
Four-post ROPS.Reference
Engine
Deutz 1.9L 2-cyl dieselReference
Fuel tank70.0 LReference
Engine25.4 kWReference
Deutz F2L 912Reference
dieselReference
2-cylinderReference
air-cooledReference
Displacement1.9 LReference
Bore/Stroke100 x 120 mmReference
Power25.4 kWReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.7 LReference
Transmission
8-speed gearReference
TransmissionTW35.1Reference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
Four gears (1-4), plus reverse (R), in two ranges (L/H).Reference
PTO & Hydraulics
Typeopen centerReference
Pressure175.0 barReference
Valves1 to 3Reference
Pump flow35.0 lpmReference
Rear TypeIReference
Rear lift (at ends)1900 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2077Reference
Dimensions
Wheelbase186 cmReference
Weight1930 kgReference
Front tire6.50-16Reference
Rear tire13.6x28Reference
Ag front6.50-16Reference
Ag rear13.6x28Reference
Ag front6.00x16Reference
Ag rear12.4x28Reference
Ag rear9.5x32Reference
Length332 cmReference
Width160 cmReference
Height (ROPS)234 cmReference
Operating weight1930 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
