Tractor · 1980Unverified

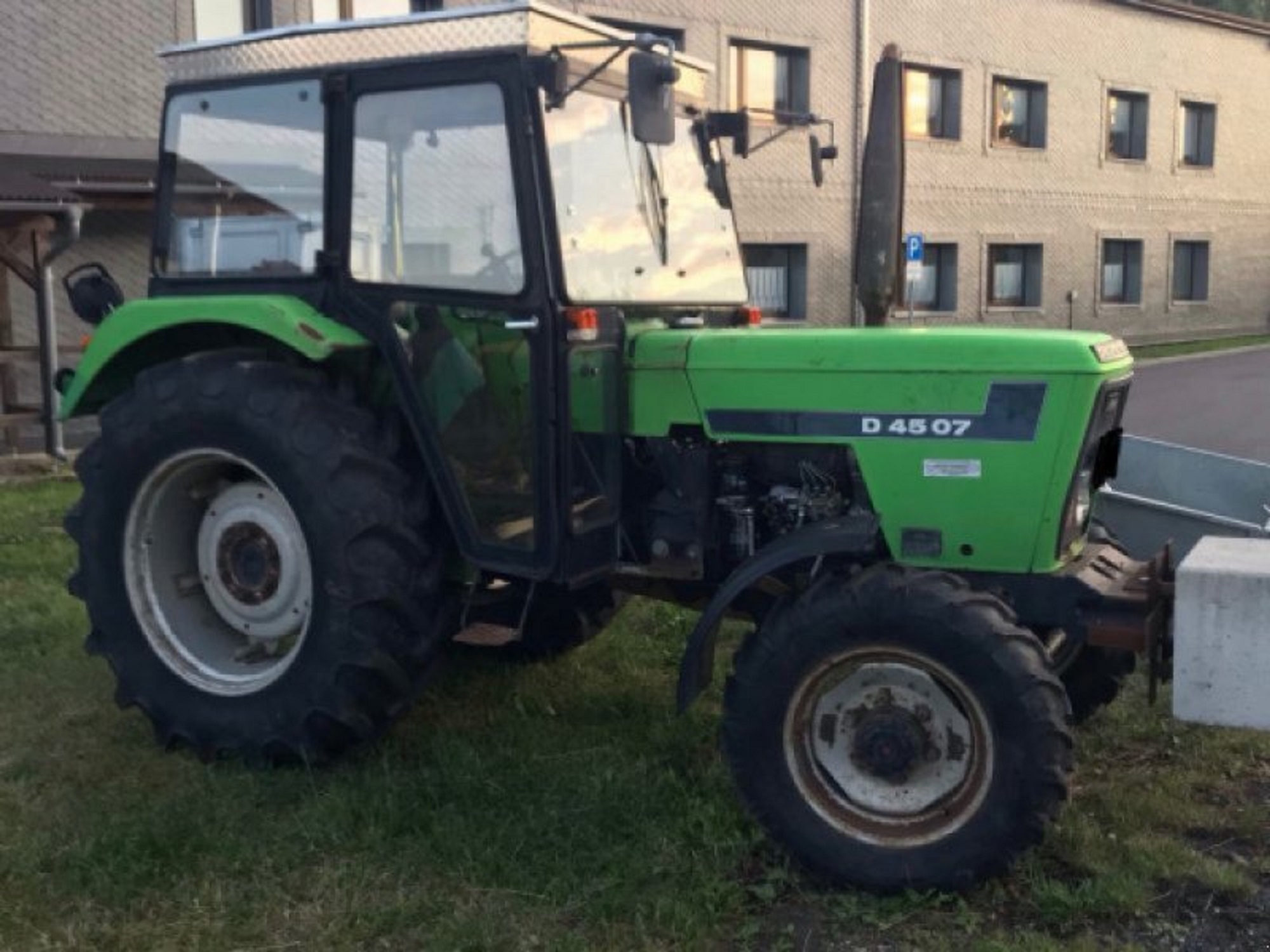

Deutz-Fahr D 4507
Deutz-Fahr D 4507 — 07 Series · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Max power
26.4 kW
Weight
4674 to 5247 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Drum brakesReference
Four-post ROPS.Reference
Engine
Deutz 2.8L 3-cyl dieselReference
Fuel tank70.0 LReference
Engine29.8 kWReference
Drawbar (tested)26.4 kWReference
DeutzReference
dieselReference
3-cylinderReference
air-cooledReference
Displacement2.8 LReference
Bore/Stroke100 x 120 mmReference
Power29.8 kWReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Power at rated engine speed32.2 kWReference
Max power26.4 kWReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
PTO (tested)32.2 kWReference
Typeopen centerReference
Pump flow34.8 lpmReference
Rear lift1900 kgReference
Rear PTO Type540Reference
Engine RPM540@2070Reference
Power at rated PTO speed31.4 kWReference
Dimensions
Wheelbase205 cmReference
Weight4674 to 5247 poundsReference
Front tire7.50-16Reference
Rear tire14.9-28Reference
Ag front7.50-16Reference
Ag front7.50-18 (4WD)Reference
Ag rear14.9-28Reference
Length348 cmReference
Height235 cmReference
2WD2120 kgReference
4WD2380 kgReference
Ballasted3352 kgReference
Test results
Diesel 8-speed 2WDSeptember 3 - 15, 1976Link: Nebraska Tractor Test 1219 fileReference
PTO performanceReference
Fuel use9.5 l/hourReference
Fuel use8.7 l/hourReference
Drawbar performanceReference
Fuel use9.1 l/hourReference
Gear 4L used for power test.Reference
Max pull2482 kgReference
Gear 2L used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
