Tractor · 1980Unverified

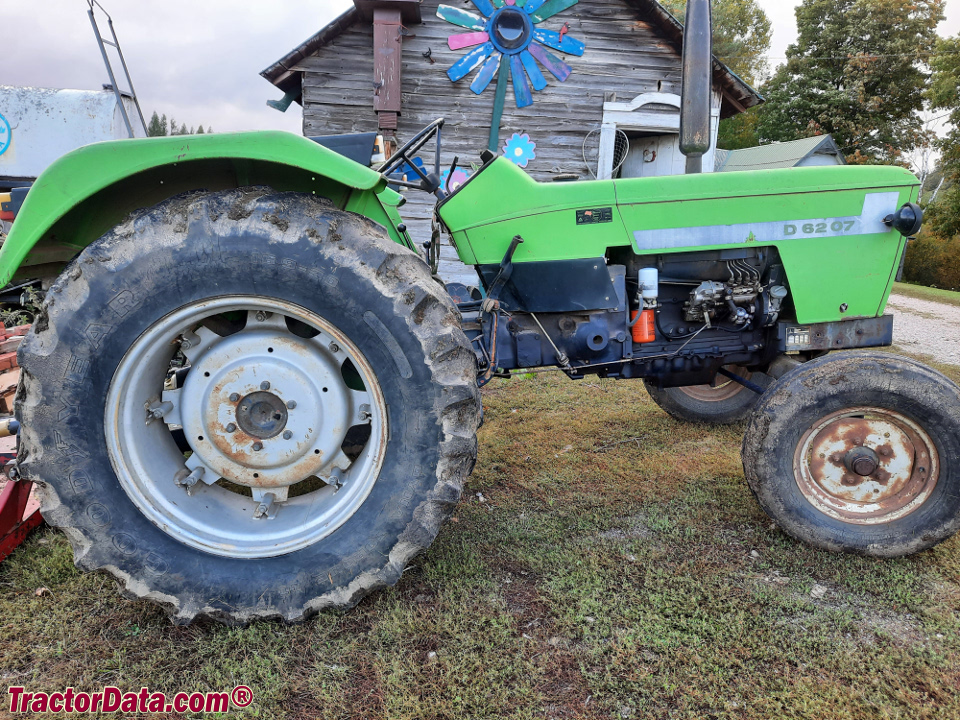

Deutz-Fahr D 6207
Deutz-Fahr D 6207 — 07 Series · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Max power
37.8 kW
Weight
6174 to 6835 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Disc brakesReference
Four-post ROPS. Cab available with heat.Reference
Engine
Deutz 3.8L 4-cyl dieselReference
Fuel tank70.0 LReference
Engine44.7 kWReference
Drawbar (tested)37.8 kWReference
Deutz F4L 912Reference
dieselReference
4-cylinderReference
air-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
Power44.7 kWReference
Air cleanerdryReference
Rated RPM2050Reference
StarterelectricReference
Starter volts12Reference
Power at rated engine speed44.9 kWReference
Max power37.8 kWReference
Transmission
9-speed synchronizedReference
TransmissionTW50.41Reference
TypesynchronizedReference
Gears9 forward and 4 reverseReference
Clutchdry dsicReference
PTO & Hydraulics
PTO (tested)44.9 kWReference
Typeopen centerReference
Pump flow42.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2404 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1889Reference
Engine RPM1000@1875Reference
Power at rated PTO speed42.5 kWReference
Dimensions
Wheelbase218 cmReference
Weight6174 to 6835 poundsReference
Front tire7.50-18Reference
2WD Rear tire13.6-36Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 13.6-36Reference
4WD Standard tires (ag)Front: 10.5-20. Rear: 13.6-36Reference
Length375 cmReference
Height248 cmReference
2800 kgReference
3100 kgReference
Ballasted3982 kgReference
Test results
Diesel 8-speed 2WDSeptember 3 - 15, 1976Link: Nebraska Tractor Test 1219 fileReference
PTO performanceReference
Fuel use12.9 l/hourReference
Fuel use12.1 l/hourReference
Drawbar performanceReference
Gear 4L used for power test.Reference
Max pull3149 kgReference
Gear 2L used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
