Tractor · 1982Unverified

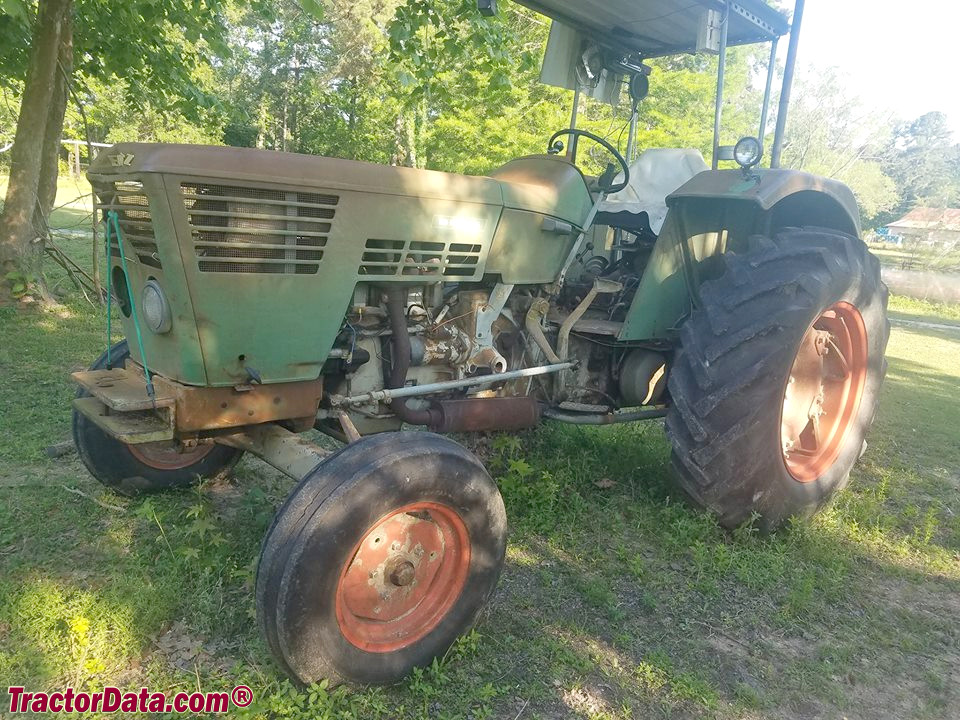

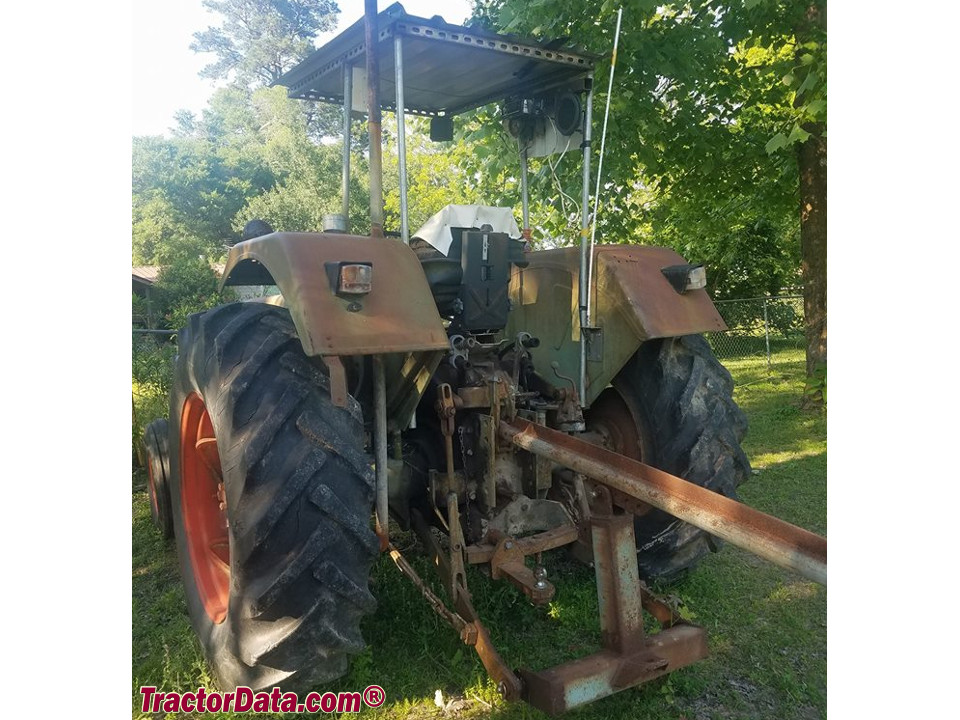

Deutz-Fahr D 6507
Deutz-Fahr D 6507 — 07 Series · 62 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
62 hp
Weight
6349 to 7055 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Mechanical disc brakesReference
Four-post ROPS. Cab available with heat.Reference
Engine
Deutz 3.8L 4-cyl dieselReference
Fuel tank90.1 LReference
Engine46.2 kWReference
Deutz F4L 912Reference
dieselReference
4-cylinderReference
air-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
Power46.2 kWReference
Rated RPM2130Reference
Starter typeelectricReference
Transmission
9-speed synchronizedReference
TransmissionTW50.41Reference
TypesynchronizedReference
Gears9 forward and 4 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure175.0 barReference
Pump flow40.1 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2404 kgReference
Front HitchIReference
Front lift1529 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
2WD Wheelbase214 cmReference
4WD Wheelbase218 cmReference
Weight6349 to 7055 poundsReference
Front tire7.50-18Reference
2WD Rear tire16.9-30Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 16.9-30Reference
4WD Standard tires (ag)Front: 10.5-20. Rear: 16.9-30Reference
2WD Length366 cmReference
4WD Length357 cmReference
Width209 cmReference
Height247 cmReference
2WD Ground clearance49 cmReference
4WD Ground clearance32 cmReference
2WD Front tread150 to 189 cmReference
2WD Operating2879 kgReference
4WD Operating3200 kgReference
Capacities
Max capacity3999 kgReference
Speeds
With 16.9-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
