Tractor · 1980Unverified

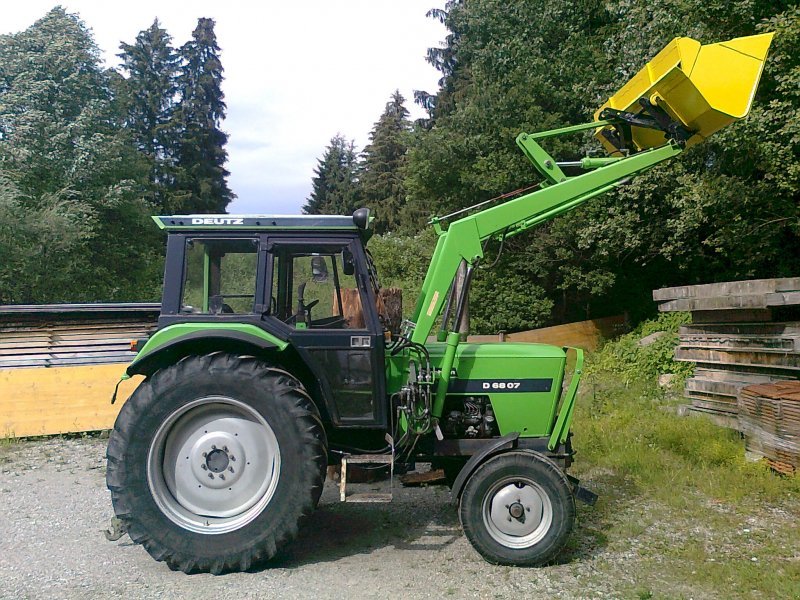

Deutz-Fahr D 6807
Deutz-Fahr D 6807 — 07 Series · 68 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
68 hp
Max power
43.7 kW
Weight
6901 to 7717 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Four-post ROPS. Cab available with heat.Reference
Engine
Deutz 3.8L 4-cyl dieselReference
Fuel tank92.0 LReference
Engine50.0 kWReference
Drawbar (tested)43.7 kWReference
Deutz F4L 912Reference
dieselReference
4-cylinderReference
air-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
Power50.0 kWReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Power at rated engine speed50.8 kWReference
Max power43.7 kWReference
Transmission
12-speed synchronizedReference
TransmissionTW56.11Reference
TypesynchronizedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
PTO (tested)50.8 kWReference
Typeopen centerReference
Pump flow40.1 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2600 kgReference
Rear lift3300 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed46.6 kWReference
Dimensions
Wheelbase243 cmReference
Weight6901 to 7717 poundsReference
Front tire7.50-18Reference
Rear tire13.6-38Reference
Ag front7.50-18Reference
Ag front11.2-24 (4WD)Reference
Ag rear13.6-38Reference
Length402 cmReference
Height270 cmReference
3130 kgReference
3500 kgReference
Ballasted4989 kgReference
Test results
Diesel 12-speed 2WDSeptember 3 - 13, 1976Link: Nebraska Tractor Test 1220 fileReference
PTO performanceReference
Fuel use15.9 l/hourReference
Fuel use14.4 l/hourReference
Drawbar performanceReference
Fuel use15.1 l/hourReference
Gear 3Z used for power test.Reference
Max pull4125 kgReference
Gear 2L used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
