Tractor · 1981Unverified

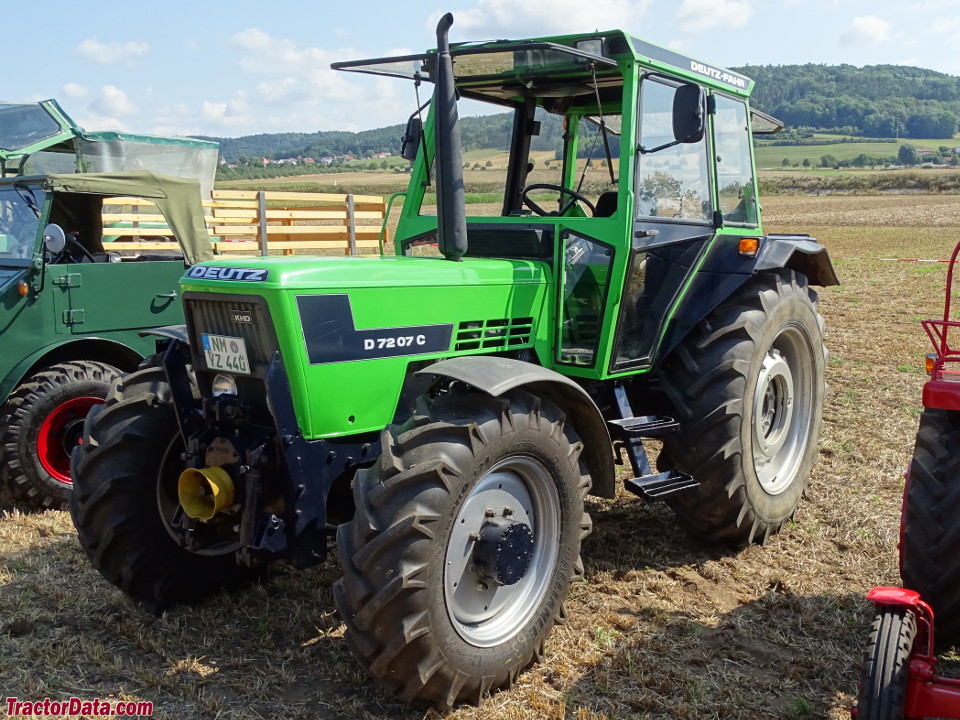

Deutz-Fahr D 7207
Deutz-Fahr D 7207 — 07 Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
7121 to 7915 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic drum brakesReference
Four-post ROPS. Cab available with heat.Reference
Engine
Deutz 3.8L 4-cyl dieselReference
Fuel tank90.1 LReference
Engine52.2 kWReference
Deutz F4L 912Reference
dieselReference
4-cylinderReference
air-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
Power52.2 kWReference
Rated RPM2300Reference
Starter typeelectricReference
Transmission
12-speed synchronizedReference
TransmissionTW56.11Reference
TypesynchronizedReference
Gears12 forward and 4 reverseReference
Four gears (1-4) in three ranges (L/M/H) plus reverse (R) range.Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow40.1 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2600 kgReference
Rear lift3300 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase241 cmReference
4WD Wheelbase242 cmReference
Weight7121 to 7915 poundsReference
Front tire7.50-20Reference
2WD Rear tire16.9-38Reference
2WD Standard tires (ag)Front: 7.50-20. Rear: 16.9-38Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 16.9-34Reference
2WD Length402 cmReference
4WD Length403 cmReference
Width209 cmReference
Height (cab)257 cmReference
2WD Ground clearance53 cmReference
4WD Ground clearance42 cmReference
2WD Front tread148 to 198 cmReference
4WD Front tread150/180 cmReference
Rear tread151 to 201 cmReference
2WD Cab Operating3230 kgReference
4WD Cab Operating3590 kgReference
Capacities
Max capacity5000 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
