Tractor · 1981Unverified

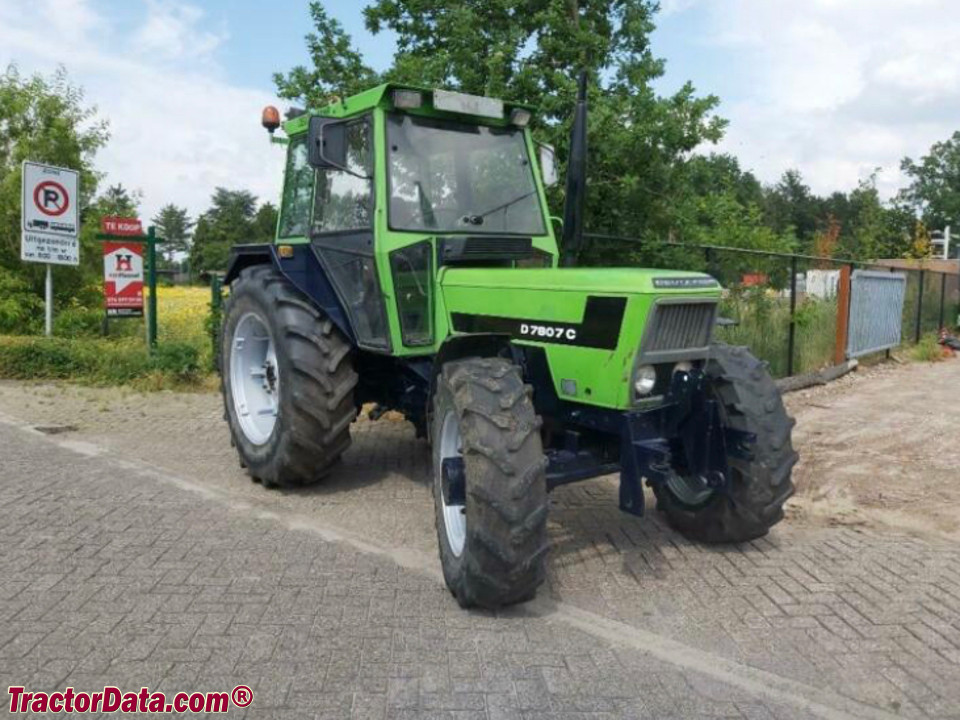

Deutz-Fahr D 7807
Deutz-Fahr D 7807 — 07 Series · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
6614 to 8091 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic drum brakesReference
Four-post ROPS. Cab available with heat.Reference
Variants
D7807CcabReference
Engine
Deutz 4.1L 4-cyl dieselReference
Fuel tank90.1 LReference
Engine55.9 kWReference
Deutz F4L 913Reference
dieselReference
4-cylinderReference
air-cooledReference
Displacement4.1 LReference
Bore/Stroke100 x 123 mmReference
Power55.9 kWReference
Rated RPM2300Reference
Starter typeelectricReference
Transmission
12-speed synchronizedReference
TransmissionTW56.21Reference
TypesynchronizedReference
Gears12 forward and 4 reverseReference
Four gears (1-4) in three ranges (L/M/H) plus reverse (R) range.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure175.0 barReference
Valves1 to 3Reference
Pump flow40.1 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2600 kgReference
Rear lift3300 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase240 cmReference
4WD Wheelbase243 cmReference
Weight6614 to 8091 poundsReference
Front tire7.50-20Reference
2WD Rear tire16.9-38Reference
2WD Standard tires (ag)Front: 7.50-20. Rear: 16.9-38Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 16.9-34Reference
2WD Length402 cmReference
4WD Length403 cmReference
Width209 cmReference
Height (ROPS)257 cmReference
Height (cab)255 cmReference
2WD Ground clearance57 cmReference
4WD Ground clearance41 cmReference
2WD Front tread150 to 199 cmReference
4WD Front tread150/180 cmReference
Rear tread150 to 199 cmReference
2WD ROPS Operating3000 kgReference
4WD ROPS Operating3369 kgReference
2WD Cab Operating3299 kgReference
4WD Cab Operating3670 kgReference
Capacities
Max capacity5000 kgReference
Speeds
With 16.9-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
