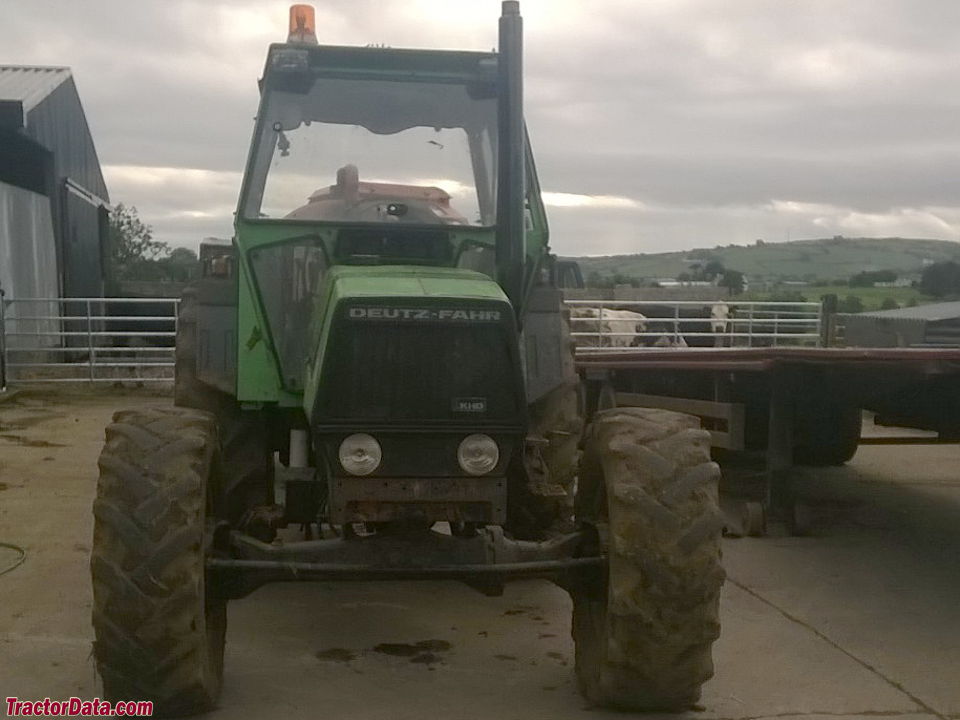

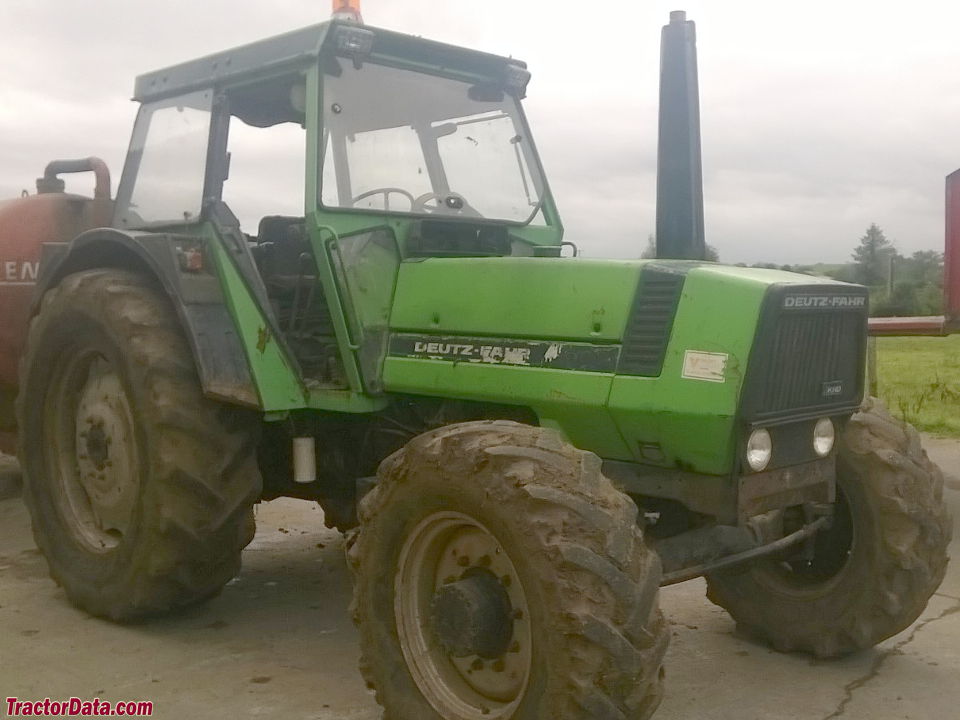

The Deutz-Fahr DX 110 is a tractor with a rated power output of 102 hp, a mid-range figure for its class. Produced between 1978 and 1983, this tractor is equipped with a 6-cylinder diesel air-cooled engine and four-wheel drive, matched to a 15-speed gearbox. The DX 110 has an operating weight of 4670 kg and is suited to operations covering an area of 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
102 hp
Weight
4670 kg
Catalogue coverage
Variants represented
2
Richest spec table
39 rows
Recorded power
102 hp
Recorded weight
4670 kg
Transmissions
15-speed
Production years
1978-1983
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Dry disc brakesReference
Variants
DX 1102WDReference
DX 110A4WDReference
Engine
Deutz 5.7L 6-cyl dieselReference
Fuel tank120.0 LReference
Engine76.1 kWReference
Deutz F6L 912Reference
dieselReference
6-cylinderReference
air-cooledReference
Displacement5.7 LReference
Bore/Stroke100 x 120 mmReference
Power76.1 kWReference
Rated RPM2300Reference
Transmission
15-speedReference
Gears15 forward and 5 reverseReference
Clutchdry discReference
PTO & Hydraulics
Typeopen centerReference
Pressure171.3 barReference
Pump flow56.0 lpmReference
Rear TypeIIReference
Rear lift4355 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase268 cmReference
Weight4670 kgReference
Front tire10.00-16Reference
Rear tire18.4-38Reference
2WD Ag front10.00-16Reference
4WD Ag front14.9-24Reference
Ag rear18.4-38Reference
Length446 cmReference
Height272 cmReference
2WD 11245 4WD} Weight4670 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
