Tractor · 1981Unverified

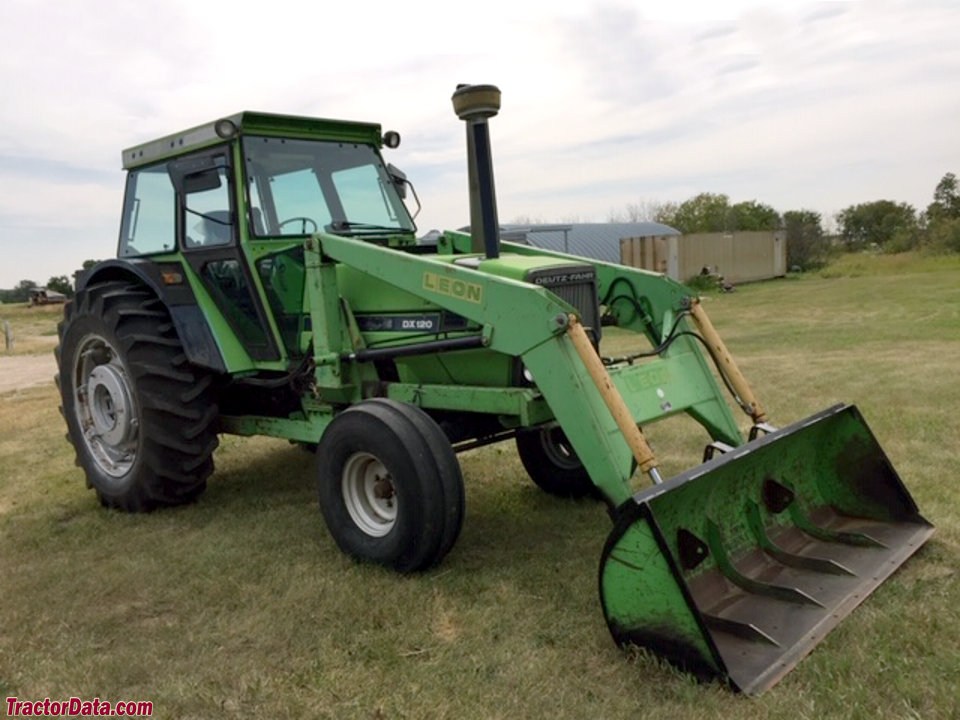

Deutz-Fahr DX 120
Deutz-Fahr DX 120 — DX Series · 111 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
111 hp
Max power
69.2 kW
Weight
4900 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Final drivesbull gearReference
Power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Deutz 6.1L 6-cyl dieselReference
Fuel tank120.0 LReference
Drawbar (tested)69.2 kWReference
DeutzReference
dieselReference
6-cylinderReference
air-cooledReference
Displacement6.1 LReference
Bore/Stroke102 x 125 mmReference
Compression17:1Reference
Rated RPM2300Reference
Starter volts12Reference
Oil capacity15.0 LReference
Power at rated engine speed83.0 kWReference
Max power69.2 kWReference
Transmission
15-speed synchronizedReference
TypesynchronizedReference
Gears15 forward and 5 reverseReference
Clutchdry discReference
Oil capacity48.0 LReference
Five gears (1-5) in three ranges (low, medium, high).Reference
PTO & Hydraulics
PTO (claimed)82.0 kWReference
PTO (tested)83.0 kWReference
Typeopen centerReference
Pump flow56.0 lpmReference
Rear TypeIIReference
Rear lift5200 kgReference
Rear PTO Type540/1000Reference
Power at rated PTO speed76.0 kWReference
Dimensions
Wheelbase268 cmReference
Weight4900 kgReference
Front tire14.9-24Reference
Rear tire18.4-38Reference
Ag front14.9-24Reference
Ag rear18.4-38Reference
Length449 cmReference
Height275 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 15-speed 2WDSeptember 17 - 24, 1981Link: Nebraska Tractor Test 1405 fileReference
PTO performanceReference
Fuel use26.1 l/hourReference
Fuel use23.5 l/hourReference
Drawbar performanceReference
Fuel use25.7 l/hourReference
Gear 1H used for power test.Reference
Max pull5722 kgReference
Gear 1M used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
