Tractor · 1980Unverified

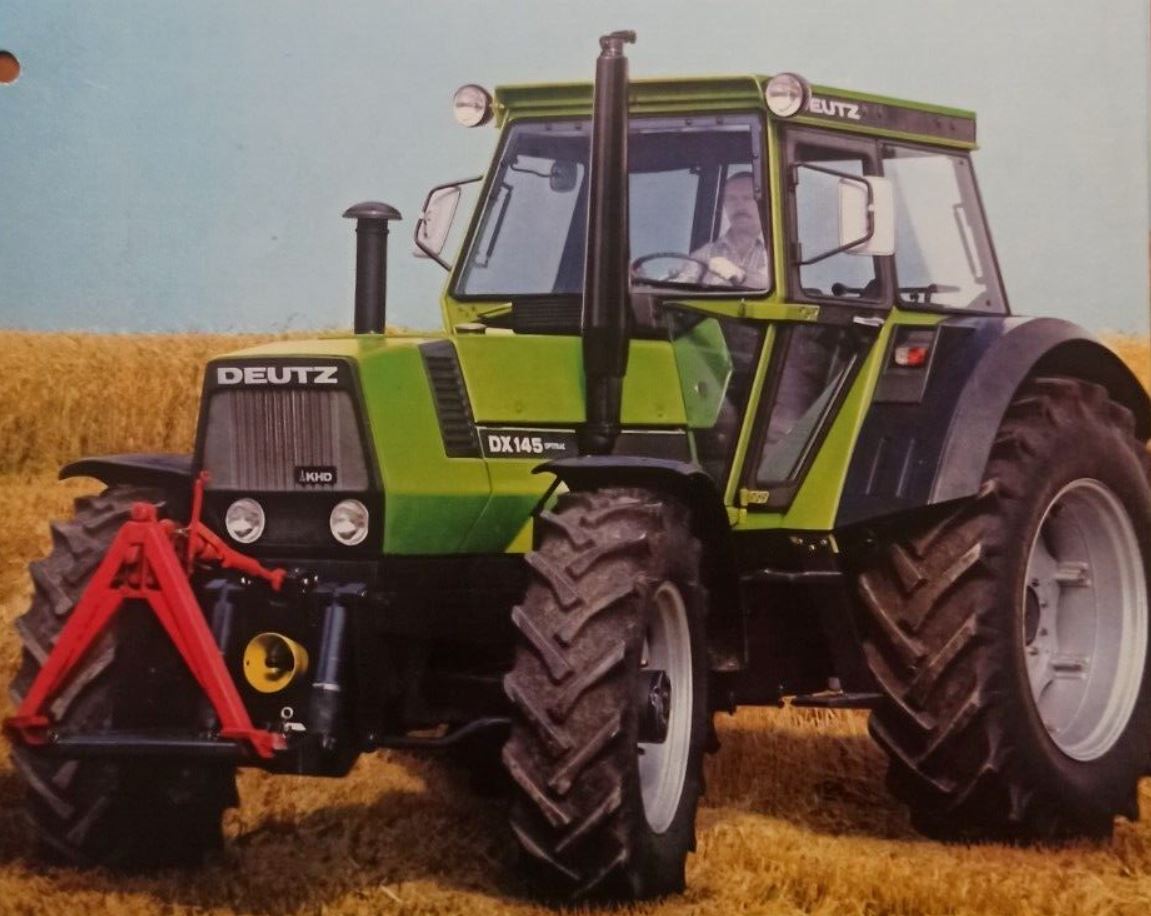

Deutz-Fahr DX 145

Name: Deutz-Fahr DX 145
Brand: Deutz-Fahr

Deutz-Fahr DX 145 · 132 hp. Reference specifications; pending source verification.

The Deutz-Fahr DX 145 is a tractor with a rated power of 132 hp, categorising it as a powerful model within its class. Manufactured from 1980 to 1983, it features a 6-cylinder turbocharged diesel engine, paired with four-wheel drive and a 15-speed gearbox. The operating weight of the Deutz-Fahr DX 145 is listed as 5750 kg, suitable for operations covering areas of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

132 hp

Weight

5750 kg

Catalogue coverage

Variants represented

Richest spec table

27 rows

Recorded power

132 hp

Recorded weight

5750 kg

Transmissions

15-speed

Production years

1980-1983

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerDeutz-FahrReference

Four-wheel driveReference

Engine

Deutz 6.1L 6-cyl dieselReference

Fuel tank149.9 LReference

Engine98.4 kWReference

DeutzReference

turbo dieselReference

6-cylinderReference

Displacement6.1 LReference

Bore/Stroke102 x 125 mmReference

Power98.4 kWReference

Rated RPM2300Reference

Transmission

15-speedReference

40-speedReference

Gears15 forward and 5 reverseReference

Gears40 forward and 10 reverseReference

PTO & Hydraulics

Pump flow55.6 lpmReference

Rear lift6500 kgReference

Rear PTO Type540, 1000Reference

Dimensions

Wheelbase278 cmReference

Weight5750 kgReference

Front tire14.9-28Reference

Rear tire20.8-38Reference

Ag front14.9-28Reference

Ag rear20.8-38Reference

Length462 cmReference

Height289 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
