Tractor · 1978Unverified

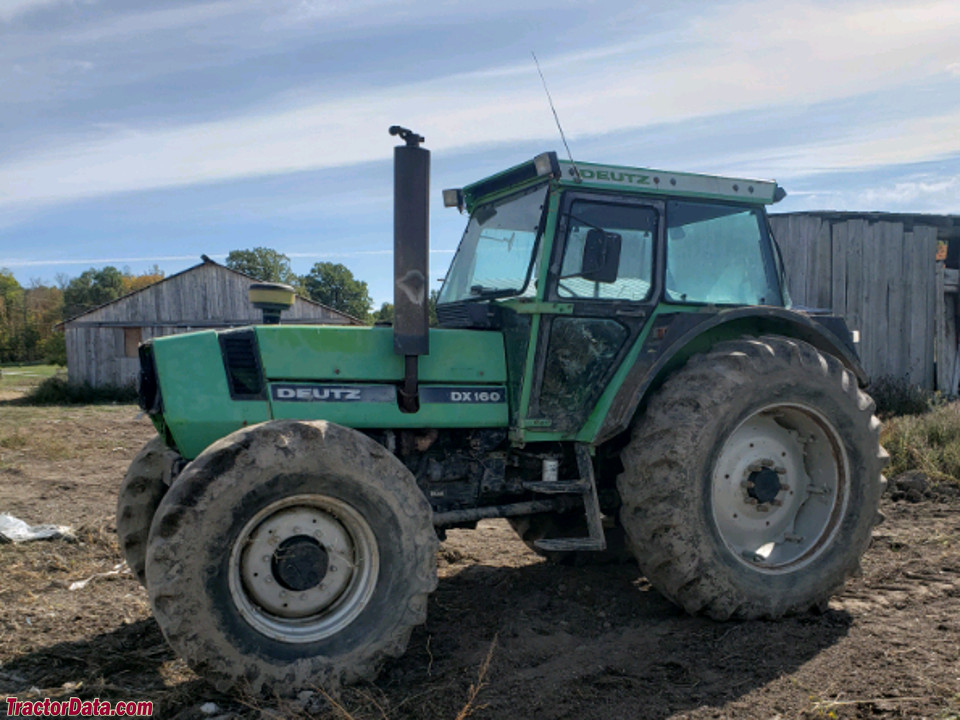

Deutz-Fahr DX 160
Deutz-Fahr DX 160 — DX Series · 145 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
145 hp
Max power
90.7 kW
Weight
12171 to 14840 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockhydraulic foot-operatedReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Engine
Deutz 6.1L 6-cyl dieselReference
Fuel tank249.8 LReference
Engine111.9 kWReference
Drawbar (tested)90.7 kWReference
Deutz BF6L 913Reference
turbocharged dieselReference
6-cylinderReference
air-cooledReference
Displacement6.1 LReference
Bore/Stroke102 x 125 mmReference
Power111.9 kWReference
Compression15.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity16.0 LReference
Power at rated engine speed108.4 kWReference
Max power90.7 kWReference
Transmission
24-speed partially synchronizedReference
TransmissionTriple RangeReference
Typepartially synchronizedReference
Gears24 forward and 8 reverseReference
Clutchdry discReference
Oil capacity75.0 LReference
Four gears (1-4) in three ranges (low, medium, high) with two-speed power shift.Reference
PTO & Hydraulics
PTO (tested)108.4 kWReference
Typeopen centerReference
Pressure175.0 barReference
Valves1 to 3Reference
Pump flow57.9 lpmReference
Total flow102.2 lpmReference
Rear TypeIIIReference
Rear lift (at ends)6500 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type540/1000Reference
Engine RPM1000@1920Reference
Power at rated PTO speed105.1 kWReference
Dimensions
Wheelbase283 cmReference
Weight12171 to 14840 poundsReference
Front tire11.00-16Reference
Rear tire20.8x38 (2WD)Reference
Standard tires (ag)Front: 11.00-16. Rear: 20.8x38 (2WD)Reference
Standard tires (ag)Front: 14.9-28. Rear: 20.8x38 (4WD)Reference
Length471 cmReference
Width236 cmReference
Height284 cmReference
Rear tread177 to 218 cmReference
2WD5520 kgReference
4WD5980 kgReference
Operating6731 kgReference
Ballasted8486 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 24-speed 2WDApril 24 - May 2, 1979Link: Nebraska Tractor Test 1307 fileReference
PTO performanceReference
Fuel use31.8 l/hourReference
Fuel use29.9 l/hourReference
Drawbar performanceReference
Gear 3ZH used for power test.Reference
Max pull6882 kgReference
Gear 1ZH used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
