Tractor · 1984Unverified

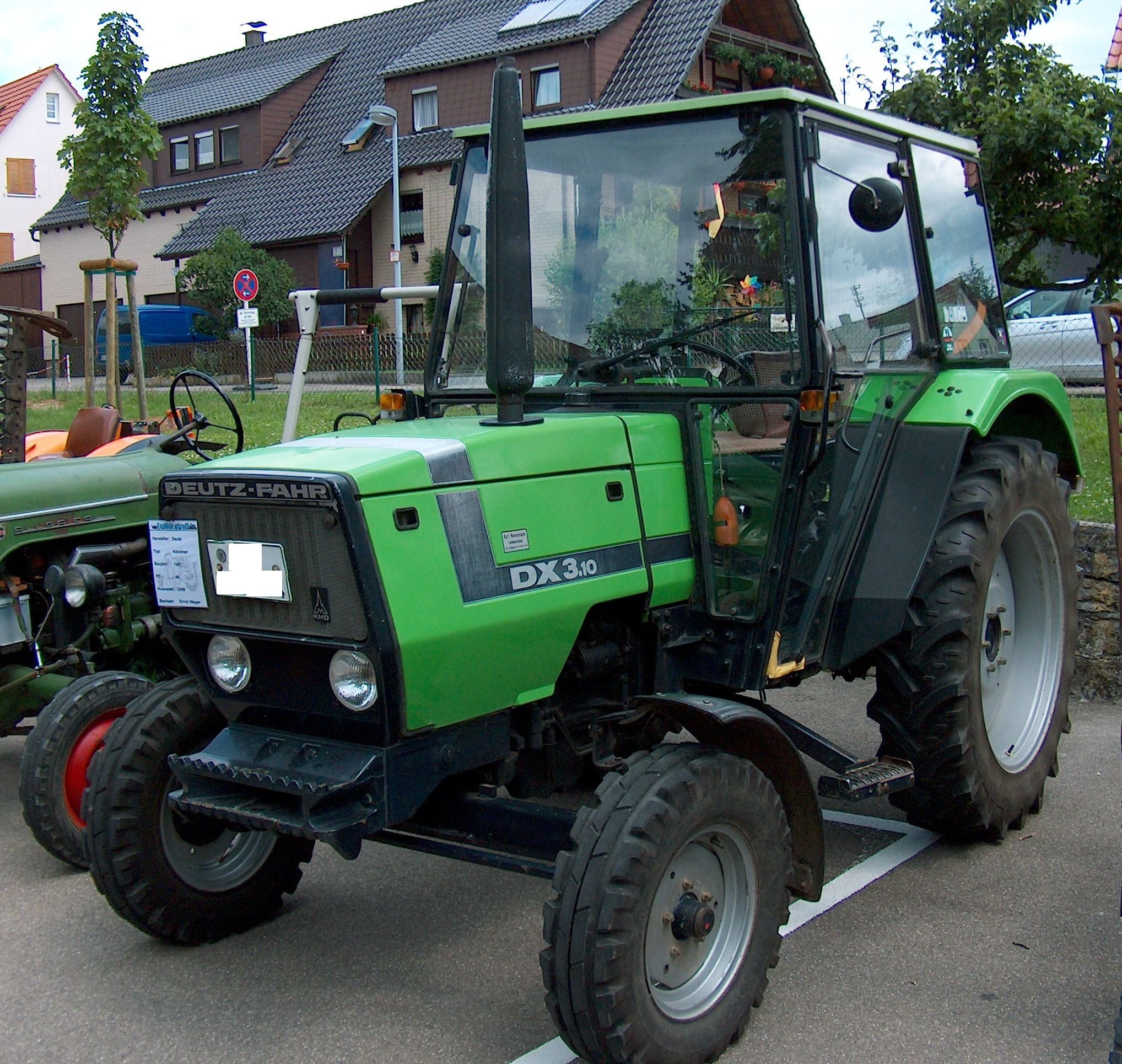

Deutz-Fahr DX 3.10
Deutz-Fahr DX 3.10 — DX 3 Series · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Weight
5776 to 6173 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Built in GermanyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical drum brakesReference
Four-post ROPS with canopy.Reference
Engine
Deutz 2.8L 3-cyl dieselReference
Engine34.3 kWReference
Deutz F3L 912Reference
dieselReference
3-cylinderReference
air-cooledReference
Displacement2.8 LReference
Bore/Stroke100 x 120 mmReference
Power34.3 kWReference
Rated RPM2150Reference
Oil capacity8.0 LReference
Transmission
8-speed partially synchronizedReference
12-speed partially synchronizedReference
16-speed two-speed power shiftReference
24-speed two-speed power shiftReference
Typepartially synchronizedReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
Oil capacity20.0 LReference
Four synchronized gears (1-4) in two ranges (low/high) plus reverse range.Reference
Gears12 forward and 4 reverseReference
Four synchronized gears (1-4) in three ranges (creeper/low/high) plus reverse range.Reference
TransmissionDual-SplitReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Dual-split adds a two-speed high/low shift to the basic transmission. Four gears in two forward ranges and one reverse range.Reference
Gears24 forward and 8 reverseReference
Dual-split adds a two-speed high/low shift to the basic transmission. Four gears in three forward ranges and one reverse range.Reference
Capacities
Fuel74.9 LReference
PTO & Hydraulics
Hydraulic system15.1 LReference
Hydraulic system28.4 LReference
Typeopen centerReference
Capacity15.1 LReference
Capacity28.4 LReference
Pressure175.0 barReference
Rear valves1 to 3Reference
Front valves2Reference
Pump flow37.1 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift1900 kgReference
Front HitchIIReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Front PTOindependentReference
Clutchdry discReference
Front PTO Type1000Reference
Dimensions
2WD Wheelbase200 cmReference
4WD Wheelbase208 cmReference
Weight5776 to 6173 poundsReference
Front tire7.50x16Reference
2WD Rear tire14.9x28Reference
2WD Standard tires (ag)Front: 7.50x16. Rear: 14.9x28Reference
4WD Standard tires (ag)Front: 10.5x20. Rear: 14.9x28Reference
2WD Optional tires (ag)Front: 7.50x16. Rear: 16.9x24Reference
Length356 cmReference
Width209 cmReference
Height (ROPS)224 cmReference
2WD Weight2619 kgReference
4WD Weight2800 kgReference
Rear tread149 to 190 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
