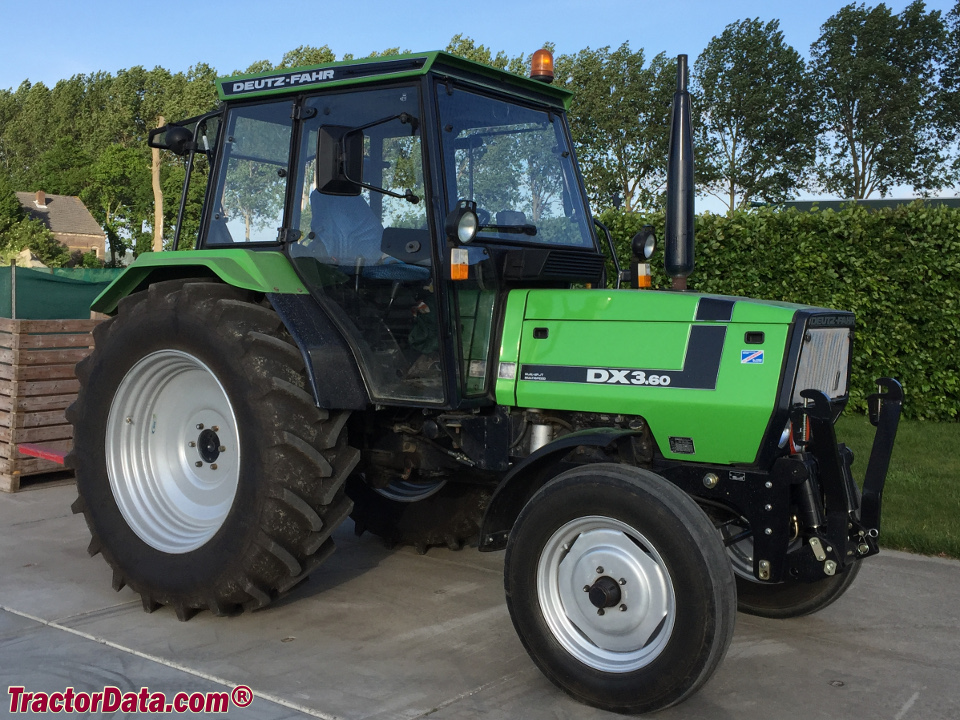

The Deutz-Fahr DX 3.60 is a tractor with a rated power output of 65 hp, a mid-range figure for its class. This model was produced from 1986 to 1995. It features a 4-cylinder diesel air-cooled engine paired with a powershift transmission and four-wheel drive. The operating weight of the DX 3.60 ranges from 6758 to 7441 pounds.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
6758 to 7441 pounds
Catalogue coverage
Variants represented
2
Richest spec table
39 rows
Recorded power
65 hp
Recorded weight
3065 kg
Transmissions
16-speed two-speed power shift
Production years
1986-1995
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Built in GermanyReference
Two- or four-wheel driveReference
Power steeringReference
Star cab.Reference
Engine
Deutz 3.8L 4-cyl dieselReference
Fuel tank82.9 LReference
Engine48.5 kWReference
Deutz F4L 912Reference
dieselReference
4-cylinderReference
air-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
Power48.5 kWReference
Rated RPM2350Reference
Transmission
16-speed two-speed power shiftReference
24-speed two-speed power shiftReference
TransmissionDual SplitReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Four gears in two ranges with two-speed power shift.Reference
Gears24 forward and 8 reverseReference
PTO & Hydraulics
Pump flow40.1 lpmReference
Rear TypeIIReference
Rear lift2400 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase225 cmReference
Weight6758 to 7441 poundsReference
Front tire7.50-18Reference
2WD Rear tire16.9R30Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 16.9R30Reference
4WD Standard tires (ag)Front: 11.2R24. Rear: 16.9R30Reference
Length373 cmReference
Height252 cmReference
2WD Weight3065 kgReference
4WD Weight3375 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
