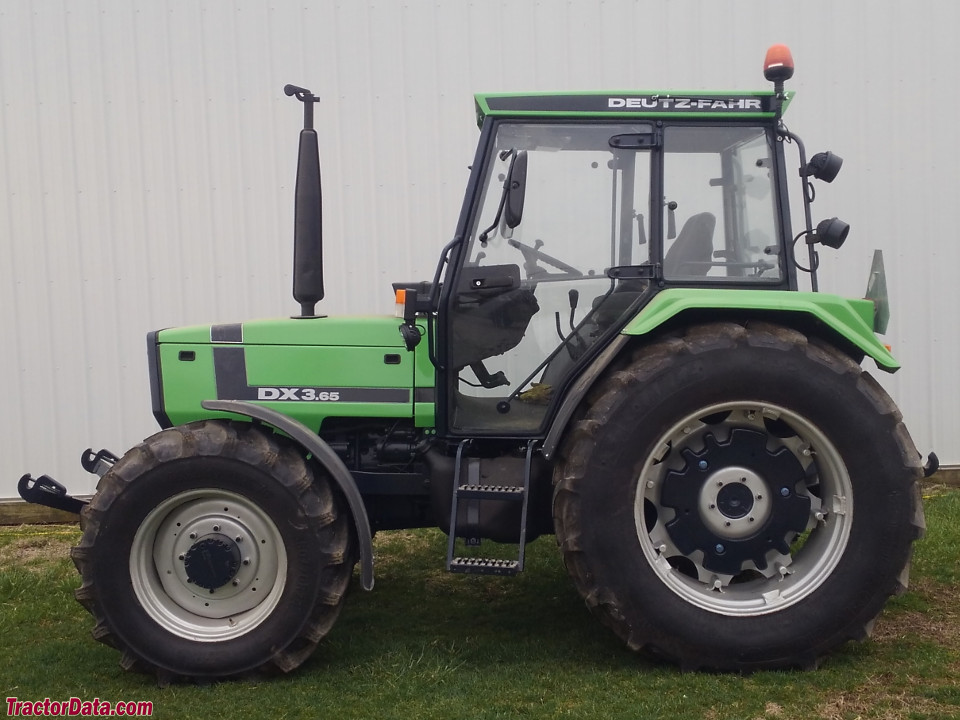

The Deutz-Fahr DX 3.65 is a tractor with a rated output of 70 hp, placing it in the middle of its class for power. Produced from 1988 to 1995, the DX 3.65 features a 4-cylinder diesel air-cooled engine, driving through four-wheel drive with a powershift transmission. The listed weight of the tractor is 3610 kg. It is suited to jobs involving around 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
3610 kg
Catalogue coverage
Variants represented
2
Richest spec table
37 rows
Recorded power
70 hp
Recorded weight
3610 kg
Transmissions
16-speed two-speed power shift
Production years
1988-1995
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Built in GermanyReference
Four-wheel driveReference
Power steeringReference
Star cab.Reference
Engine
Deutz 3.8L 4-cyl dieselReference
Fuel tank82.9 LReference
Engine52.2 kWReference
Deutz F4L 912Reference
dieselReference
4-cylinderReference
air-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
Power52.2 kWReference
Rated RPM2350Reference
Transmission
16-speed two-speed power shiftReference
24-speed two-speed power shiftReference
TransmissionDual SplitReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Four gears in two ranges with two-speed power shift.Reference
Gears24 forward and 8 reverseReference
PTO & Hydraulics
Pump flow40.1 lpmReference
Rear TypeIIReference
Rear lift3300 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase225 cmReference
Weight3610 kgReference
Front tire12.4R24Reference
Rear tire16.9R34Reference
Ag front12.4R24Reference
Ag rear16.9R34Reference
Length379 cmReference
Height258 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
