Tractor · 1983Unverified

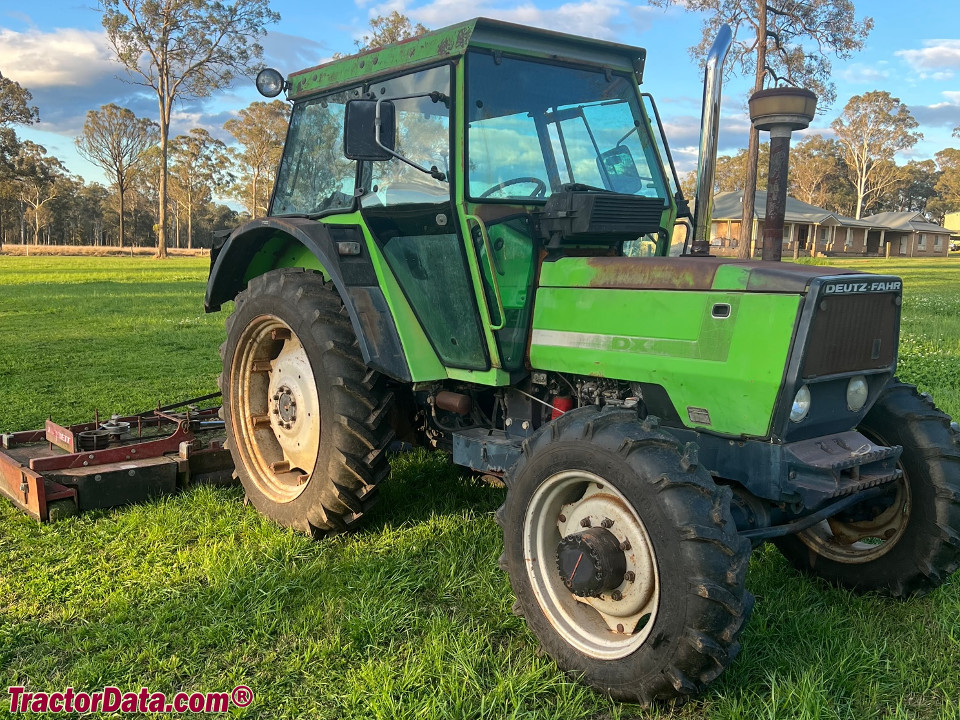

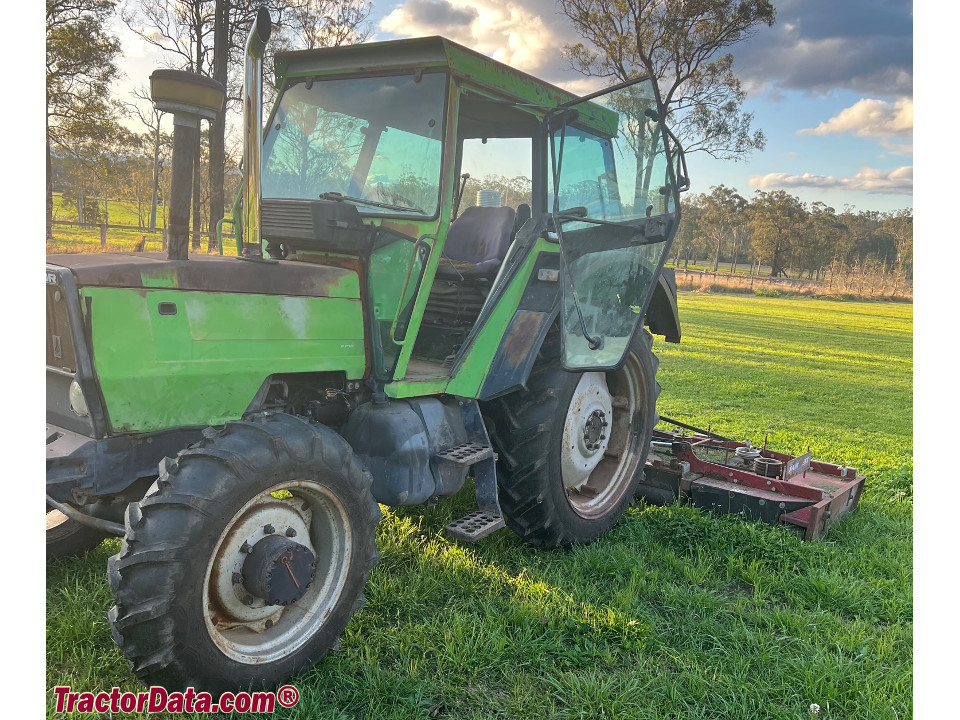

Deutz-Fahr DX 4.30

Name: Deutz-Fahr DX 4.30
Brand: Deutz-Fahr

Deutz-Fahr DX 4.30 — DX4 Series · 74 hp. Reference specifications; pending source verification.

The Deutz-Fahr DX 4.30 is a tractor with a rated output of 74 hp, positioning it in the middle of its class for power. Manufactured from 1983 to 1989, this model features a 4-cylinder diesel air-cooled engine, which drives through a four-wheel drive system with a 15-speed gearbox. The listed weight of the DX 4.30 ranges from 7937 to 8642 pounds, making it suitable for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

74 hp

Weight

7937 to 8642 pounds

Catalogue coverage

Variants represented

Richest spec table

57 rows

Recorded power

74 hp

Transmissions

15-speed synchronized

Production years

1983-1989

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerDeutz-FahrReference

Utility tractorReference

Two- or four-wheel driveReference

Power steeringReference

Hydraulic drum brakesReference

Engine

Deutz 4.1L 4-cyl dieselReference

Fuel tank120.0 LReference

Engine55.0 kWReference

Deutz F4L 913Reference

dieselReference

4-cylinderReference

air-cooledReference

Displacement4.1 LReference

Bore/Stroke100 x 123 mmReference

Power55.0 kWReference

Rated RPM2300Reference

StarterelectricReference

Starter volts12Reference

Transmission

15-speed synchronizedReference

20-speed creeperReference

TypesynchronizedReference

Gears15 forward and 5 reverseReference

Five gears (1-5) in three ranges (L/M/H) plus reverse (R) range.Reference

TypecreeperReference

Gears20 forward and 5 reverseReference

PTO & Hydraulics

Pressure175.0 barReference

Pump flow40.1 lpmReference

Rear TypeIIReference

Rear lift3803 kgReference

Front HitchIIReference

Front lift1799 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

2WD Wheelbase232 cmReference

4WD Wheelbase240 cmReference

Weight7937 to 8642 poundsReference

Front tire9.00-16Reference

2WD Rear tire18.4-34Reference

2WD Standard tires (ag)Front: 9.00-16. Rear: 18.4-34Reference

4WD Standard tires (ag)Front: 13.6-24. Rear: 18.4-34Reference

2WD Length404 cmReference

4WD Length414 cmReference

Width202 cmReference

Height263 cmReference

2WD Ground clearance52 cmReference

4WD Ground clearance42 cmReference

2WD Front tread152 to 202 cmReference

4WD Front tread151 to 188 cmReference

Rear tread160 to 199 cmReference

2WD3600 kgReference

4WD3920 kgReference

Capacities

2WD Max capacity5400 kgReference

4WD Max capacity5699 kgReference

Speeds

With 18.4-34 rear tiresReference

With 18.4-34 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
