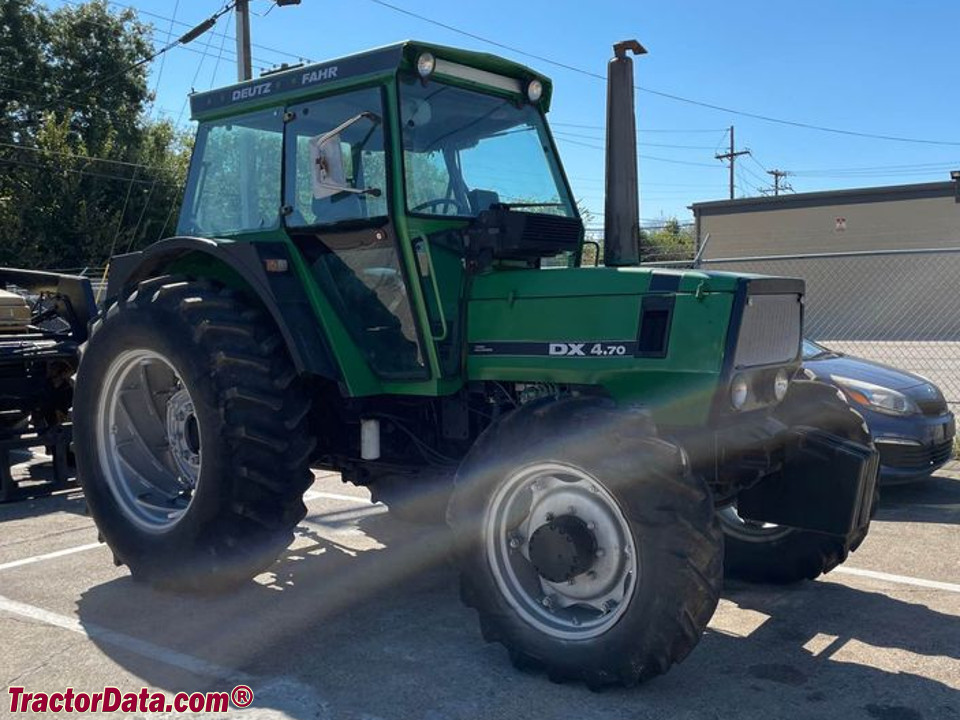

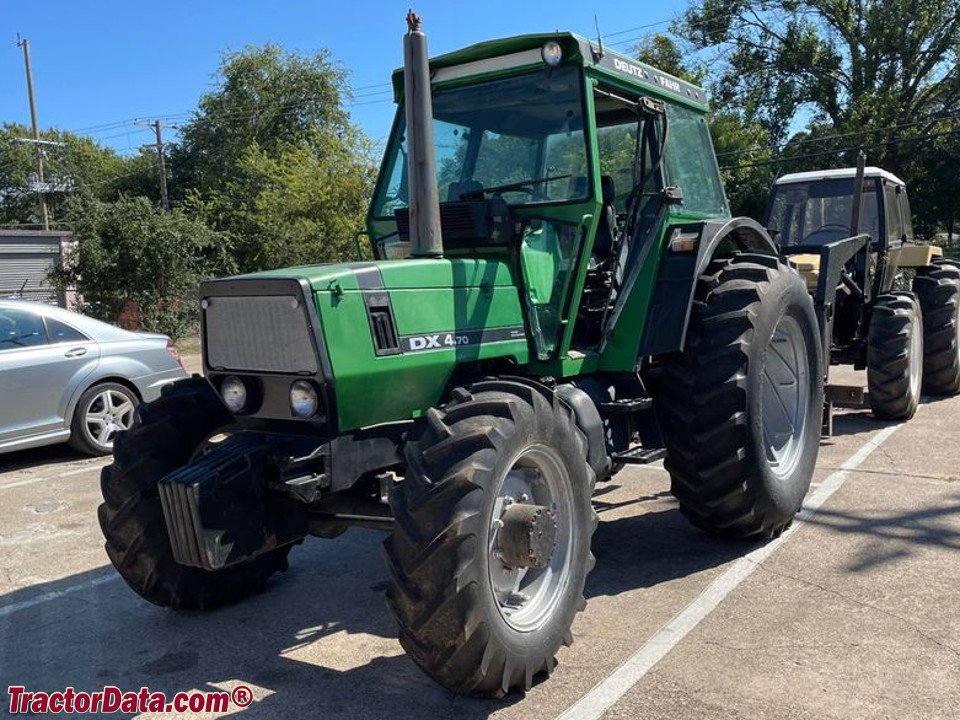

Deutz-Fahr DX 4.70
Deutz-Fahr DX 4.70 — DX4 Series · 85 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Max power
54.6 kW
Weight
8466 to 9193 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Differential lockOPTITRAC frontReference
Power steeringReference
Hydraulic dry disc brakesReference

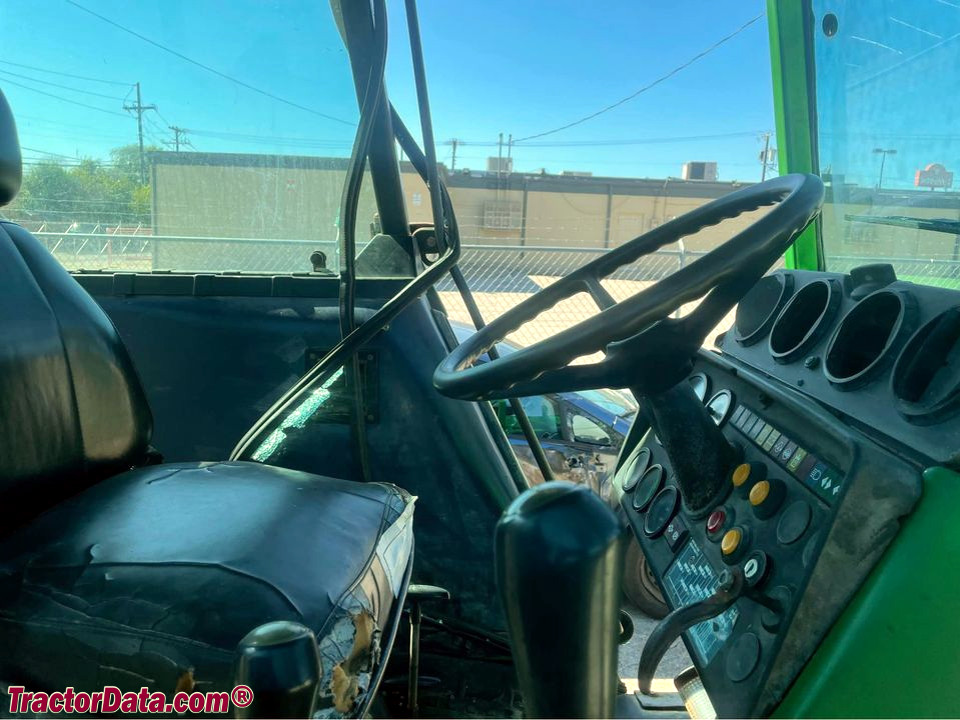

Mastercab standard with air-conditioning.Reference
Engine
Deutz 4.1L 4-cyl dieselReference
Fuel tank120.0 LReference
Engine67.1 kWReference
Drawbar (tested)54.6 kWReference
Deutz BF4L913Reference
turbocharged dieselReference
4-cylinderReference
air-cooledReference
Displacement4.1 LReference
Bore/Stroke100 x 123 mmReference
Power67.1 kWReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity11.4 LReference
Power at rated engine speed63.5 kWReference
Max power54.6 kWReference
Transmission
15-speed fully synchronizedReference
20-speed creeperReference
Typefully synchronizedReference
Gears15 forward and 5 reverseReference
Clutchcerametallic discReference
Oil capacity38.0 LReference
Five gears (1-5) in three ranges (L/M/H) plus reverse (R) range.Reference
TypecreeperReference
Gears20 forward and 5 reverseReference
PTO & Hydraulics
PTO (claimed)62.6 kWReference
PTO (tested)63.5 kWReference
Typeopen centerReference
Pressure175.0 barReference
Valves1 to 3Reference
Pump flow74.2 lpmReference
Rear TypeIIReference
Rear lift (at ends)3799 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2025Reference
Engine RPM1000@2110Reference
Front PTOindependentReference
Front PTO Type1000Reference
Power at rated PTO speed62.9 kWReference
Dimensions
2WD Wheelbase233 cmReference
4WD Wheelbase240 cmReference
Weight8466 to 9193 poundsReference
Front tire10.00x16Reference
2WD Rear tire18.4x34Reference
2WD Standard tires (ag)Front: 10.00x16. Rear: 18.4x34Reference
4WD Standard tires (ag)Front: 13.6x24. Rear: 18.4x34Reference
Optional tires (ag)Front: 13.6x28. Rear: 18.4x38Reference
Length408 cmReference
2WD Height264 cmReference
4WD Height271 cmReference
2WD Weight3840 kgReference
4WD Weight4169 kgReference
Rear tread149 to 199 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 15-speed 4WDSeptember 10 - 19, 1985Link: Nebraska Tractor Test 1575 fileReference
PTO performanceReference
Fuel use19.7 l/hourReference
Fuel use18.9 l/hourReference
Drawbar performanceReference
Fuel use19.3 l/hourReference
Gear 3M used for power test.Reference
Max pull4763 kgReference
Gear 3L used for pull test.Reference
Speeds
With 18.4-34 rear tiresReference
With 18.4-34 rear tires.Reference
