Tractor · 1987Unverified

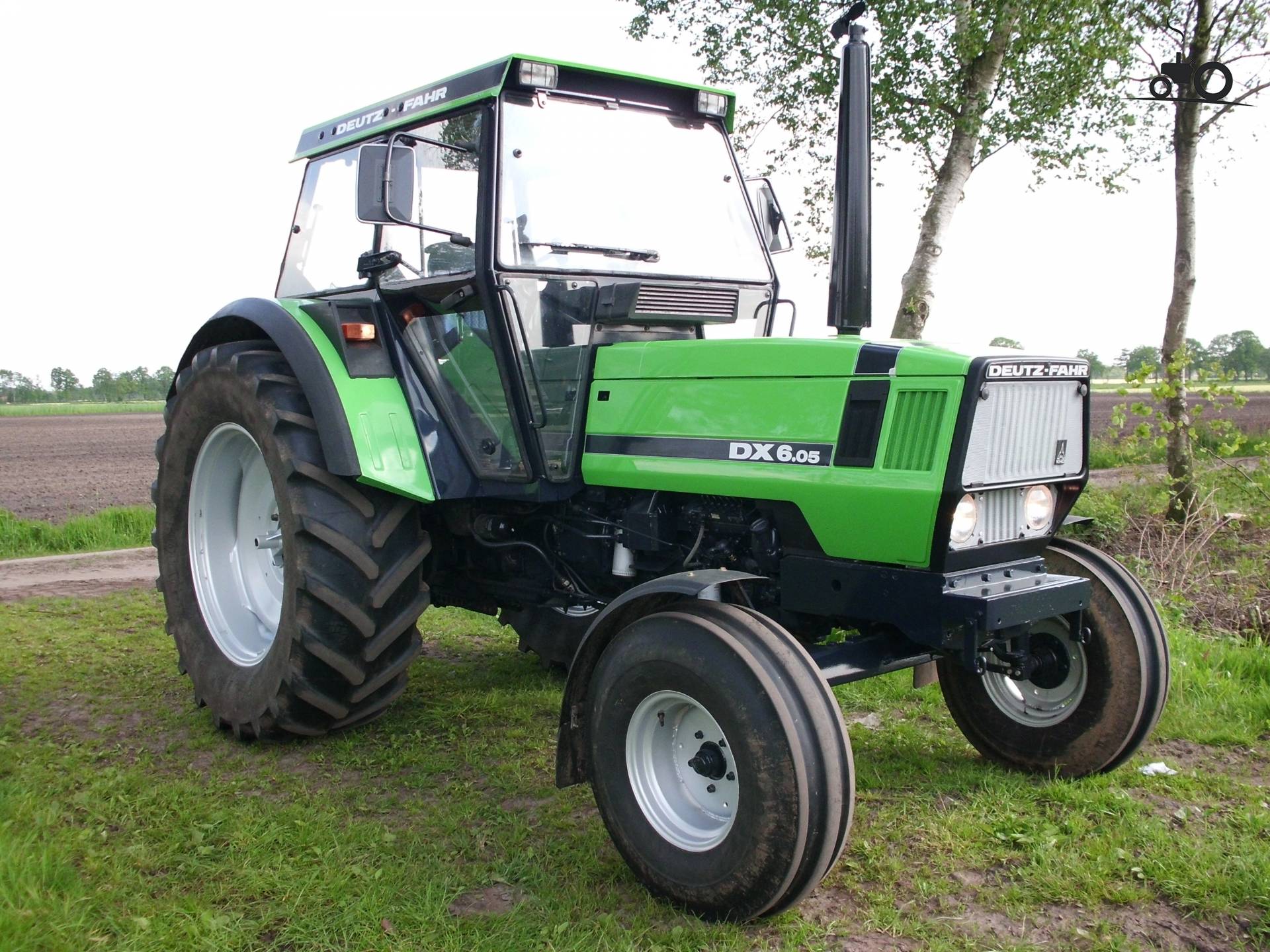

Deutz-Fahr DX 6.05
Deutz-Fahr DX 6.05 — DX6 Series · 98 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
98 hp
Weight
4530 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Four-wheel driveReference
Engine
Deutz 5.7L 6-cyl dieselReference
Fuel tank120.0 LReference
Engine73.1 kWReference
Deutz F6L 912Reference
dieselReference
6-cylinderReference
air-cooledReference
Displacement5.7 LReference
Bore/Stroke100 x 120 mmReference
Power73.1 kWReference
Rated RPM2300Reference
Transmission
18-speedReference
24-speedReference
TransmissionTW 902Reference
Gears18 forward and 6 reverseReference
Six gears (1-6) in three ranges (L/M/H) plus reverse range (R).Reference
Gears24 forward and 6 reverseReference
Six gears (1-6) in four ranges (LL/L/M/H) plus reverse range (R).Reference
PTO & Hydraulics
Pump flow46.9 lpmReference
Rear lift5200 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase270 cmReference
Weight4530 kgReference
Front tire13.6R28Reference
Rear tire18.4R38Reference
Ag front13.6R28Reference
Ag rear18.4R38Reference
Length445 cmReference
Height273 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
