Tractor · 1983Unverified

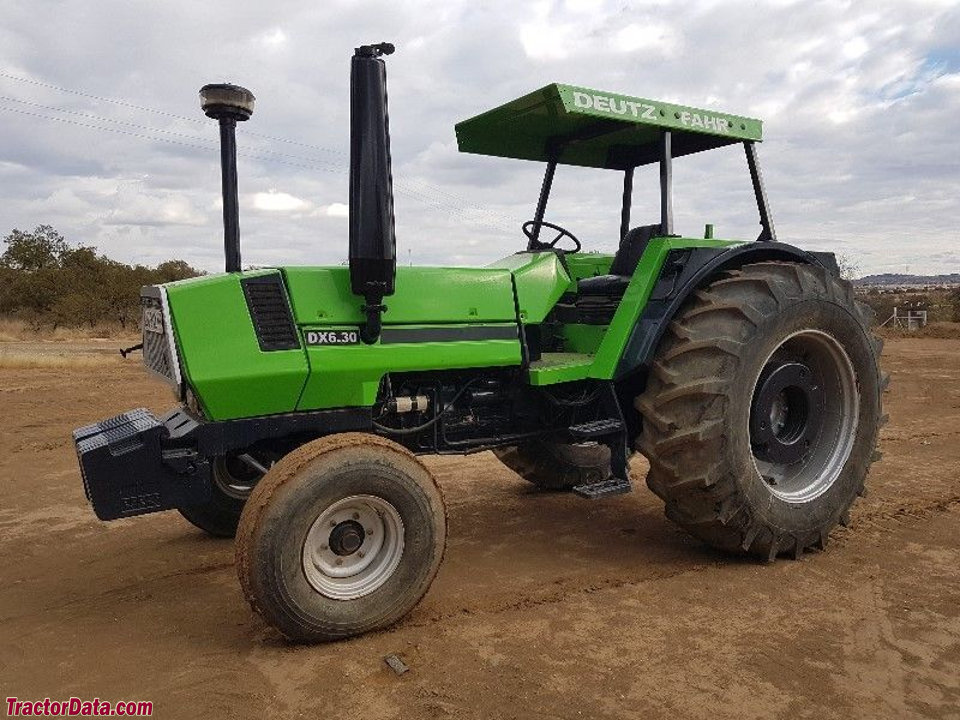

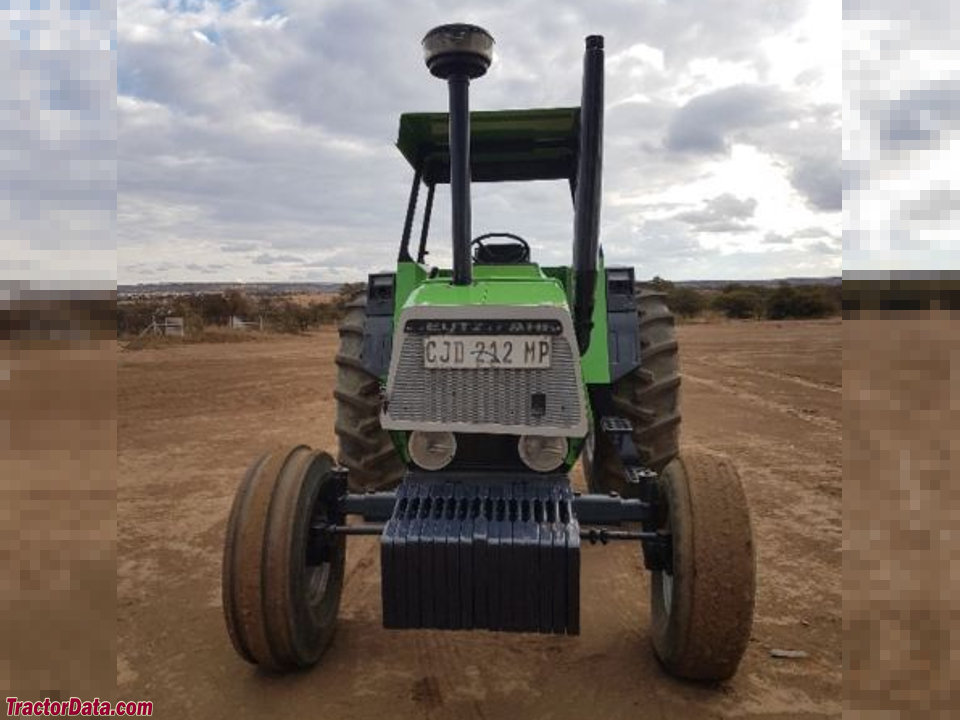

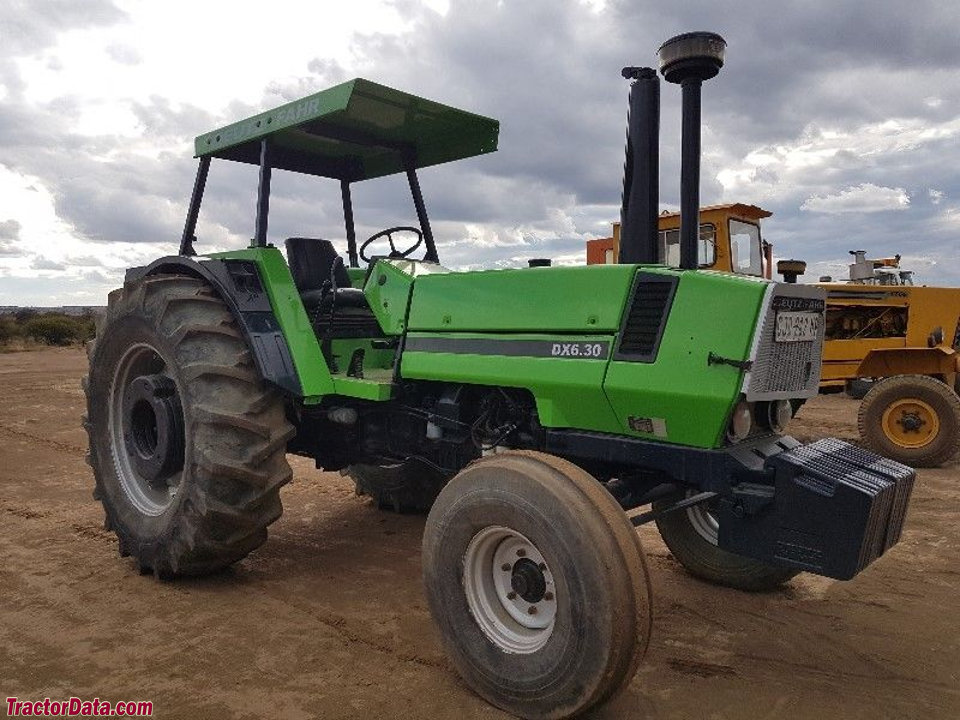

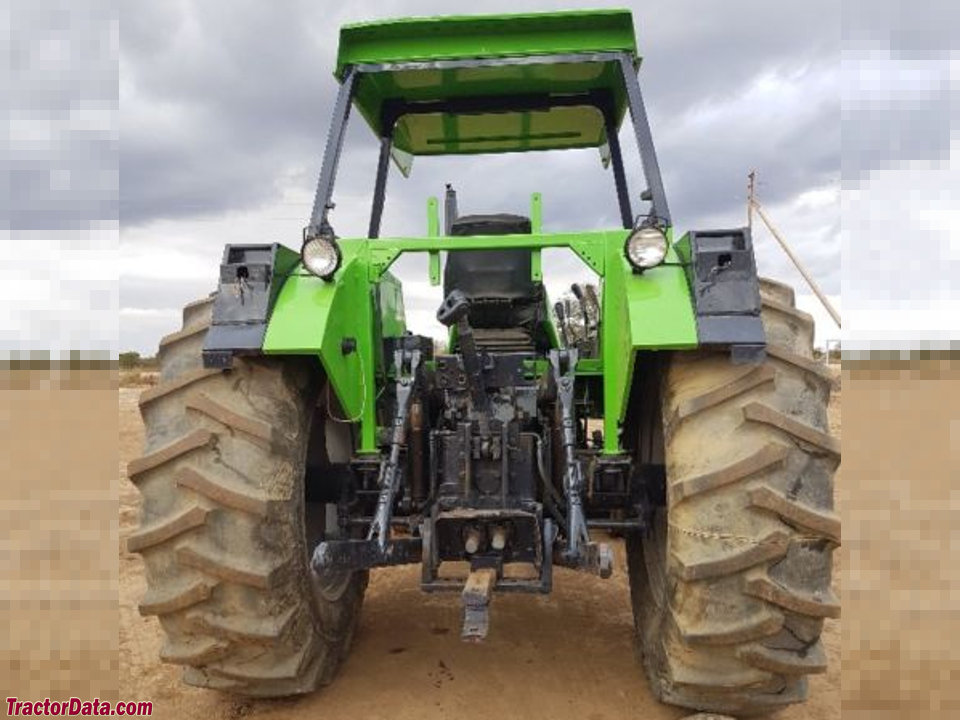

Deutz-Fahr DX 6.30
Deutz-Fahr DX 6.30 — DX6 Series · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Weight
9700 to 10670 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Differential lockOPTITRAC frontReference
Power steeringReference
Hydraulic dry disc brakesReference
Mastercab standard with air-conditioning.Reference
Engine
Deutz 6.1L 6-cyl dieselReference
Fuel tank120.0 LReference
Fuel tank219.5 LReference
Engine85.8 kWReference
Deutz F6L 913Reference
dieselReference
6-cylinderReference
air-cooledReference
Displacement6.1 LReference
Bore/Stroke102 x 125 mmReference
Power85.8 kWReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity15.1 LReference
Transmission
15-speed fully synchronizedReference
20-speedReference
Typefully synchronizedReference
Gears15 forward and 5 reverseReference
Clutchcerametallic discReference
Oil capacity48.0 LReference
Five gears (1-5) in three ranges (L/M/H) plus reverse (R) range.Reference
TransmissionTW 904Reference
Gears20 forward and 5 reverseReference
Five gears (1-5) in four ranges (LL/L/M/H) plus reverse (R) range.Reference
PTO & Hydraulics
PTO (claimed)82.0 kWReference
Typeopen centerReference
Pressure175.0 barReference
Valves1 to 3Reference
Pump flow90.8 lpmReference
Rear TypeIIReference
Rear lift (at ends)5099 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2200Reference
Engine RPM1000@2200Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
2WD Wheelbase268 cmReference
4WD Wheelbase270 cmReference
Weight9700 to 10670 poundsReference
Front tire11.00x16Reference
2WD Rear tire18.4x38Reference
2WD Standard tires (ag)Front: 11.00x16. Rear: 18.4x38Reference
4WD Standard tires (ag)Front: 14.9x28. Rear: 18.4x38Reference
Length454 cmReference
Width229 cmReference
2WD Height272 cmReference
4WD Height284 cmReference
2WD Weight4399 kgReference
4WD Weight4839 kgReference
Rear tread162 to 223 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Speeds
With 18.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
