Tractor · 1984Unverified

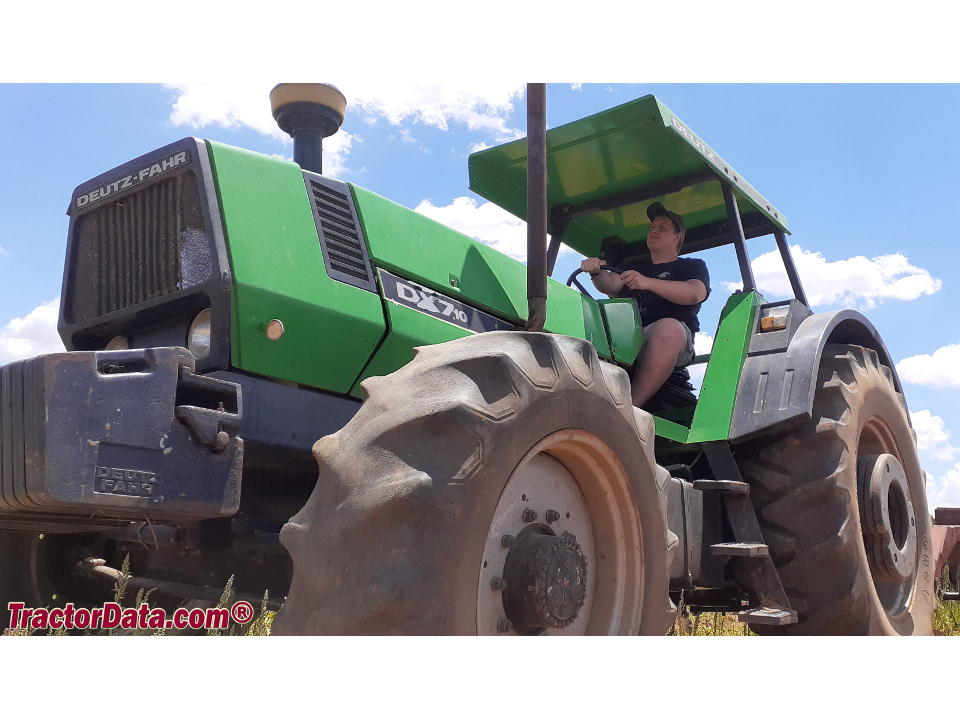

Deutz-Fahr DX 7.10
Deutz-Fahr DX 7.10 — DX Series · 145 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
145 hp
Weight
11905 to 12897 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Differential lockOPTITRAC frontReference
Power steeringReference
Hydraulic dry disc brakesReference
Mastercab standard with air-conditioning.Reference
Engine
Deutz 6.1L 6-cyl dieselReference
Fuel tank249.8 LReference
Engine119.3 kWReference
Deutz F6L 913Reference
turbocharged dieselReference
6-cylinderReference
air-cooledReference
Displacement6.1 LReference
Bore/Stroke102 x 125 mmReference
Power119.3 kWReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity16.1 LReference
Transmission
24-speed two-speed power shiftReference
32-speedReference
TransmissionPowermaticReference
Typetwo-speed power shiftReference
Gears24 forward and 8 reverseReference
Clutchcerametallic discReference
Oil capacity75.0 LReference
Gears32 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)108.1 kWReference
Typeopen centerReference
Pressure175.0 barReference
Valves1 to 3Reference
Pump flow103.3 lpmReference
Rear TypeIIIReference
Rear lift (at ends)8500 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1920Reference
Engine RPM1000@1920Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
2WD Wheelbase262 cmReference
4WD Wheelbase282 cmReference
Weight11905 to 12897 poundsReference
Front tire11.00x16Reference
2WD Rear tire20.8x38Reference
2WD Standard tires (ag)Front: 11.00x16. Rear: 20.8x38Reference
4WD Standard tires (ag)Front: 16.9x28. Rear: 20.8x38Reference
2WD Optional tires (ag)Front: 11.00x16. Rear: 18.4x38Reference
4WD Optional tires (ag)Front: 14.9x28. Rear: 18.4x38Reference
Length477 cmReference
Width236 cmReference
Height278 cmReference
2WD Weight5400 kgReference
4WD Weight5850 kgReference
Rear tread162 to 223 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
