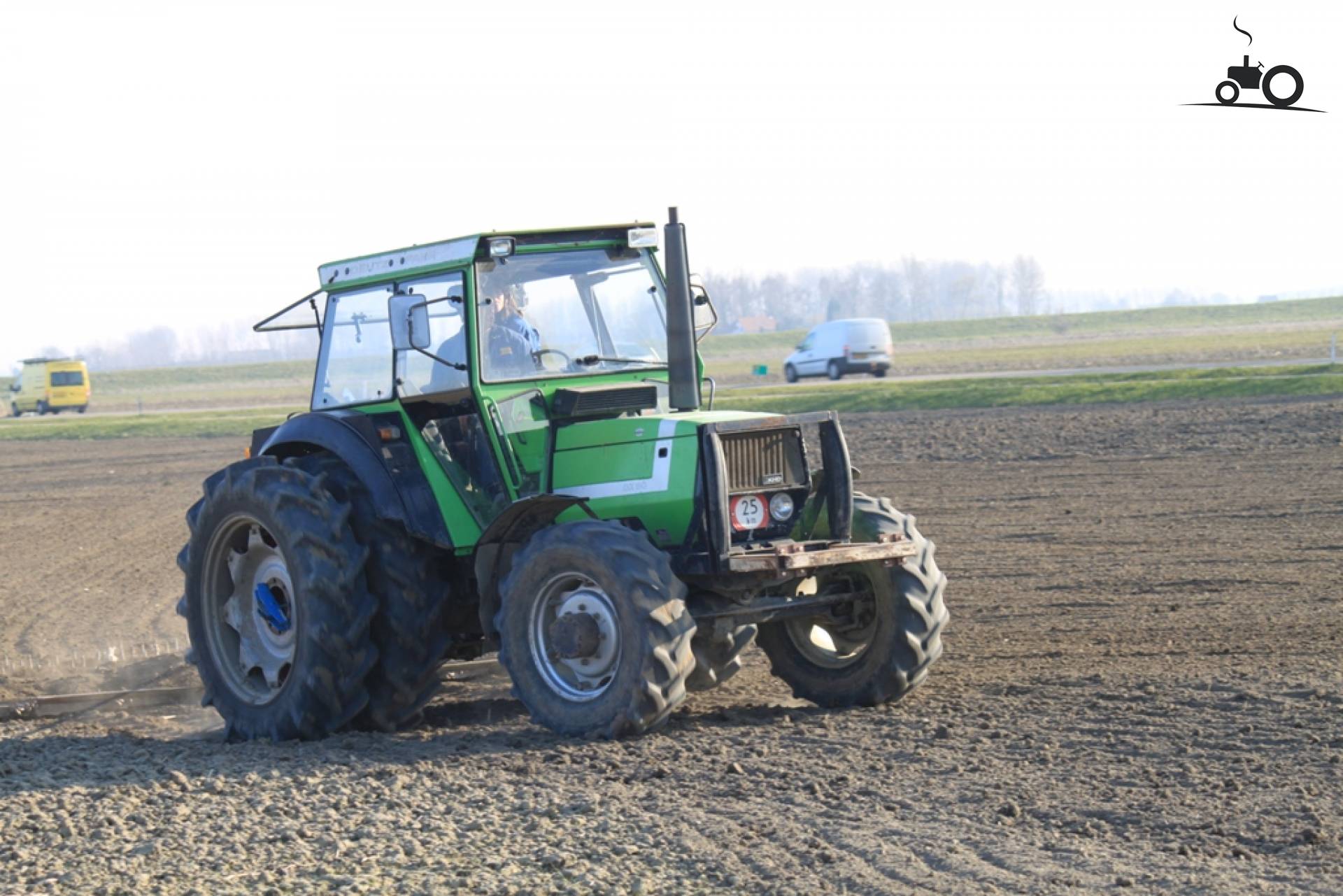

The Deutz-Fahr DX 80 is a tractor rated at 75 hp, placing it in the middle of its class for power output. Manufactured between 1982 and 1983, the DX 80 features a 4-cylinder diesel engine, driving a mechanical front-wheel drive system with a 15-speed gearbox. The listed weight of the DX 80 is 3600 kg, and it is suited for applications involving around 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
3600 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
75 hp
Recorded weight
3600 kg
Transmissions
15-speed
Production years
1982-1983
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Engine
Deutz 4.1L 4-cyl dieselReference
Fuel tank120.0 LReference
Engine55.9 kWReference
DeutzReference
dieselReference
4-cylinderReference
Displacement4.1 LReference
Bore/Stroke100 x 123 mmReference
Power55.9 kWReference
Rated RPM2300Reference
Transmission
15-speedReference
18-speedReference
Gears15 forward and 5 reverseReference
Gears18 forward and 6 reverseReference
PTO & Hydraulics
Pump flow40.1 lpmReference
Rear lift3800 kgReference
Rear PTO Type540, 1000Reference
Dimensions
Wheelbase240 cmReference
Weight3600 kgReference
Front tire10.00-16Reference
Rear tire18.4R34Reference
Ag front10.00-16Reference
Ag front13.6R24 (4WD)Reference
Ag rear18.4R34Reference
Length408 cmReference
Height267 cmReference
Weight3600 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
