Tractor · 1983Unverified

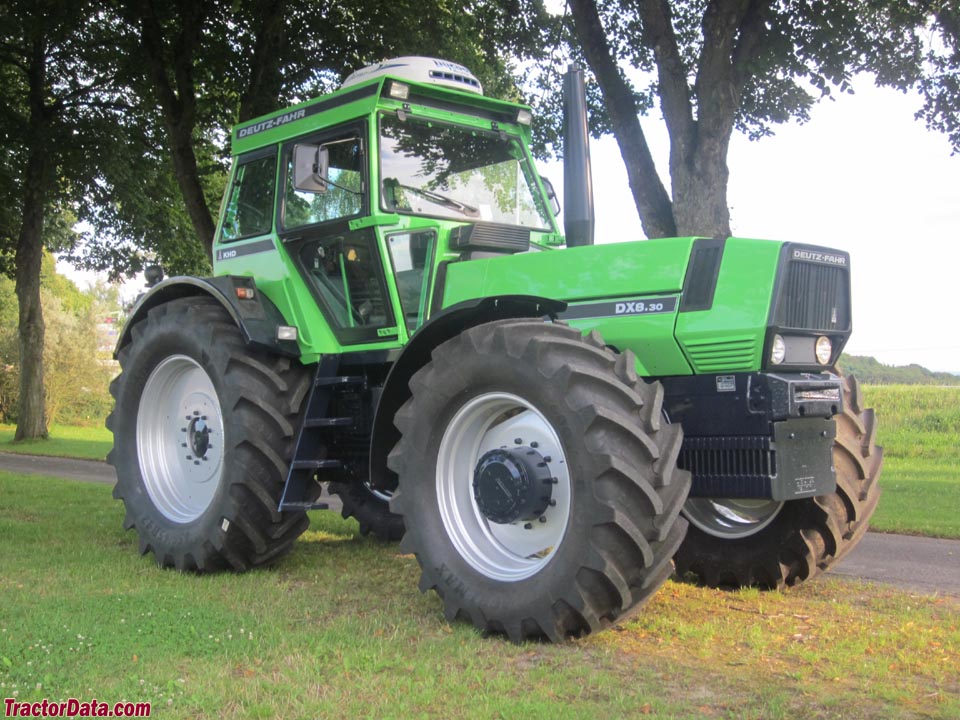

Deutz-Fahr DX 8.30
Deutz-Fahr DX 8.30 — Row-Crop tractor · 190 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
190 hp
Weight
9249 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Engine
Deutz 9.6L 6-cyl dieselReference
Fuel tank300.2 LReference
Fuel tank400.1 LReference
Engine164.1 kWReference
Deutz BF6L413FRReference
turbocharged dieselReference
6-cylinderReference
air-cooledReference
Displacement9.6 LReference
Bore/Stroke125 x 130 mmReference
Power164.1 kWReference
Rated RPM2200Reference
Starter typeelectricReference
Transmission
18-speed three-speed power shiftReference
TransmissionZF Powermatic-SReference
Typethree-speed power shiftReference
Gears18 forward and 6 reverseReference
ZF T-6636 transmission. Three forward power shift groups in six synchronized ranges.Reference
PTO & Hydraulics
PTO (claimed)141.7 kWReference
Pressure175.0 barReference
Pump flow81.0 lpmReference
Steering flow46.2 lpmReference
Steering press.150.0 barReference
Rear lift8157 kgReference
Rear PTO Type1000Reference
Dimensions
Wheelbase299 cmReference
Weight9249 kgReference
Front tire15-30Reference
Rear tire18-38Reference
Standard tires (ag)Front: 15-30. Rear: 18-38Reference
Length543 cmReference
Width249 cmReference
Height (cab)310 cmReference
Operating weight9249 kgReference
Max weight11999 kgReference
Ground clearance52 cmReference
Front tread195 to 226 cmReference
Rear tread184 to 219 cmReference
Speeds
With 18-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
