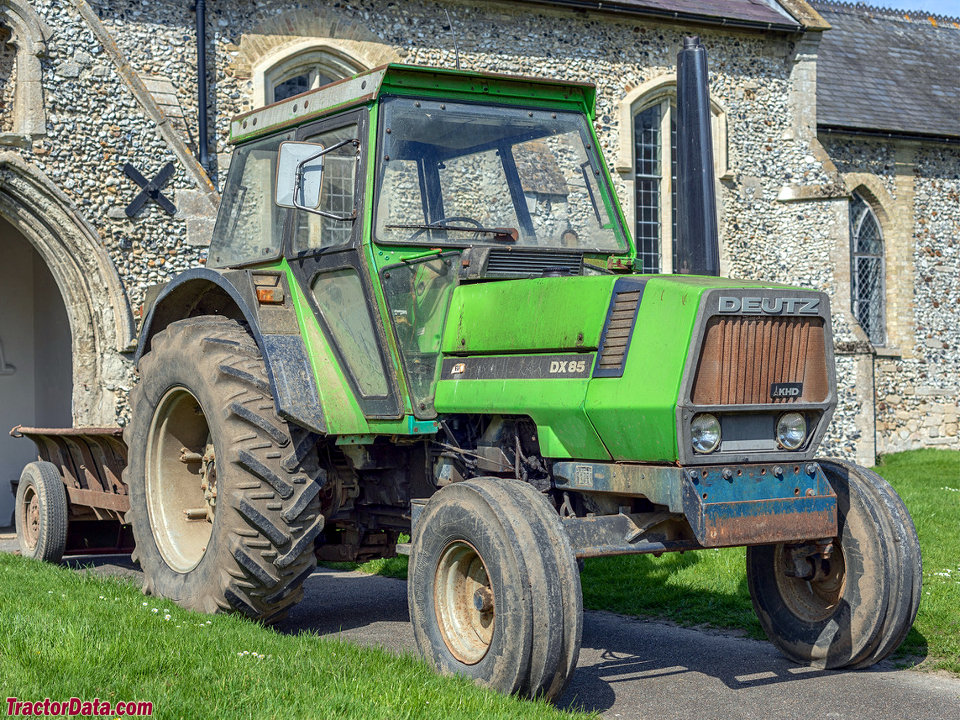

The Deutz-Fahr DX 85 is a tractor of 80 hp, positioned in the middle of its class in terms of power output. Manufactured between 1978 and 1982, it features a 5-cylinder diesel air-cooled engine powering four-wheel drive with a 15-speed gearbox. The listed weight of the tractor ranges from 9856 to 10650 pounds. It is suited to tasks covering approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
9856 to 10650 pounds
Catalogue coverage
Variants represented
2
Richest spec table
37 rows
Recorded power
80 hp
Recorded weight
4470 kg
Transmissions
15-speed fully synchronized
Production years
1978-1982
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Cab standard with air-conditioning.Reference
Engine
Deutz 4.7L 5-cyl dieselReference
Fuel tank120.0 LReference
Engine59.7 kWReference
Deutz F5L 912Reference
dieselReference
5-cylinderReference
air-cooledReference
Displacement4.7 LReference
Bore/Stroke100 x 120 mmReference
Power59.7 kWReference
Rated RPM2300Reference
Transmission
15-speed fully synchronizedReference
Typefully synchronizedReference
Gears15 forward and 5 reverseReference
Clutchdry discReference
Five gears (1-5) in three ranges (low, medium, high).Reference
PTO & Hydraulics
Pump flow39.4 lpmReference
Rear TypeIIReference
Rear lift3500 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase256 cmReference
Weight9856 to 10650 poundsReference
Front tire10.00-16Reference
Rear tire14.9-38Reference
Ag front10.00-16Reference
Ag front12.4-24 (4WD)Reference
Ag rear14.9-38Reference
Length432 cmReference
Height260 cmReference
2WD Weight4470 kgReference
4WD Weight4830 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
