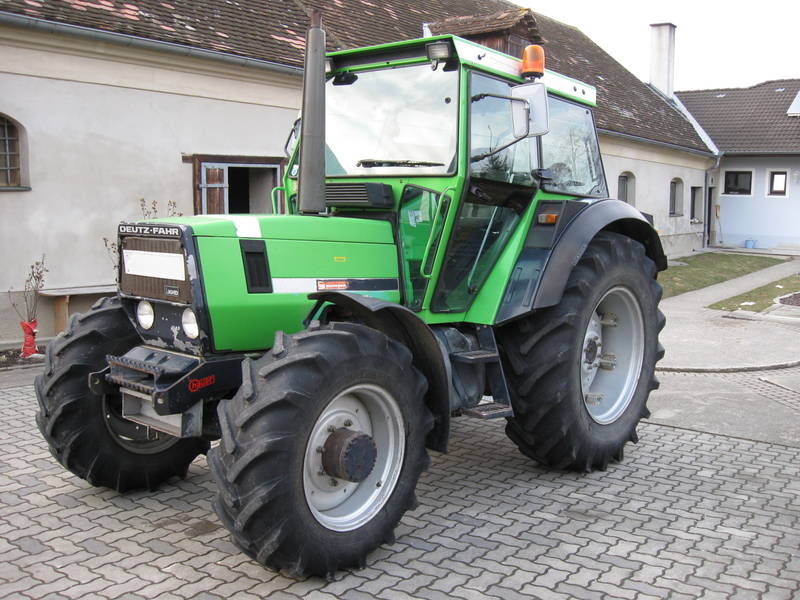

The Deutz-Fahr DX 86 is a tractor with an approximate engine rating of 82 horsepower, a typical power output for its category. It was manufactured from 1982 to 1983. This model is equipped with a 4-cylinder turbocharged diesel engine and features mechanical front-wheel drive with a 15-speed gearbox. The Deutz-Fahr DX 86 has a specified operating weight of 3750 kg and is designed for use on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
82 hp
Weight
3750 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
82 hp
Recorded weight
3750 kg
Transmissions
15-speed
Production years
1982-1983
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Engine
Deutz 4.1L 4-cyl dieselReference
Fuel tank120.0 LReference
Engine61.1 kWReference
DeutzReference
turbo dieselReference
4-cylinderReference
Displacement4.1 LReference
Bore/Stroke100 x 123 mmReference
Power61.1 kWReference
Rated RPM2300Reference
Transmission
15-speedReference
18-speedReference
Gears15 forward and 5 reverseReference
Gears18 forward and 6 reverseReference
PTO & Hydraulics
Pump flow40.1 lpmReference
Rear lift3800 kgReference
Rear PTO Type540, 1000Reference
Dimensions
Wheelbase240 cmReference
Weight3750 kgReference
Front tire10.00-16Reference
Rear tire18.4R34Reference
Ag front10.00-16Reference
Ag front13.6R24 (4WD)Reference
Ag rear18.4R34Reference
Length408 cmReference
Height267 cmReference
Weight3750 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
