Tractor · 1978Unverified

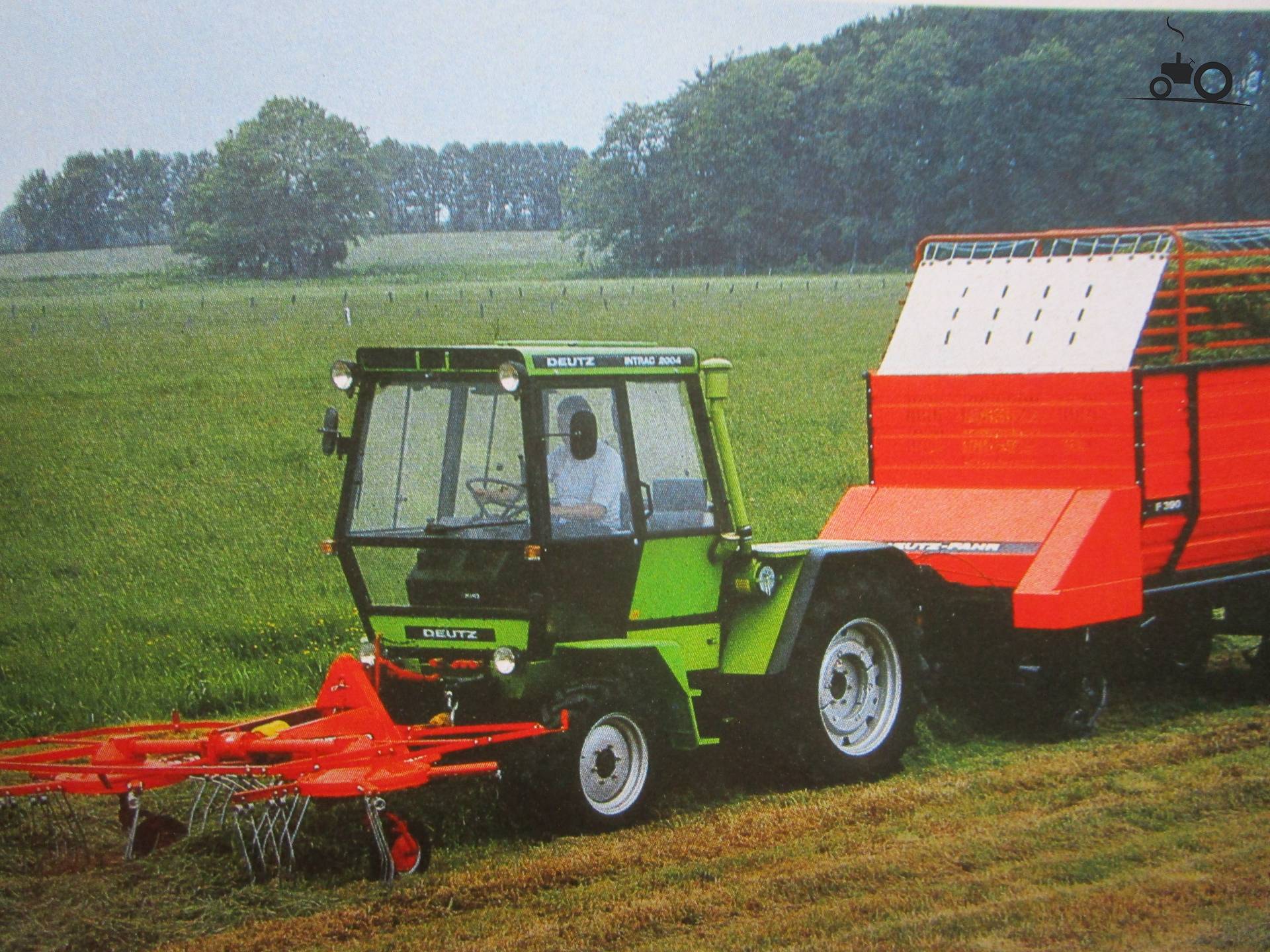

Deutz-Fahr Intrac 2004

Name: Deutz-Fahr Intrac 2004
Brand: Deutz-Fahr

Deutz-Fahr Intrac 2004 — Intrac 2000 Series · 70 hp. Reference specifications; pending source verification.

The Deutz-Fahr Intrac 2004 is a tractor model with a rated power output of 70 hp, positioning it in the middle of its class. Manufactured between 1978 and 1989, this model is equipped with a 4-cylinder diesel air-cooled engine, which is connected to a 12-speed gearbox and drives all four wheels. The listed weight of the Deutz-Fahr Intrac 2004 is 3630 kg, and it is designed for tasks covering areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

70 hp

Weight

3630 kg

Catalogue coverage

Variants represented

Richest spec table

31 rows

Recorded power

70 hp

Recorded weight

3630 kg

Transmissions

12-speed synchronized

Production years

1978-1989

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerDeutz-FahrReference

Tool Carrier tractorReference

Four-wheel driveReference

Engine

Deutz 3.8L 4-cyl dieselReference

Fuel tank87.1 LReference

Engine52.2 kWReference

Deutz F4L912Reference

dieselReference

4-cylinderReference

air-cooledReference

Displacement3.8 LReference

Bore/Stroke100 x 120 mmReference

Power52.2 kWReference

Rated RPM2300Reference

Transmission

12-speed synchronizedReference

8-speedReference

TypesynchronizedReference

Gears12 forward and 4 reverseReference

Four gears in three ranges, plus reverse range.Reference

Gears8 forward and 4 reverseReference

PTO & Hydraulics

Rear lift1000 kgReference

Rear PTO Type540/1000Reference

Front PTO Type1000Reference

Dimensions

Wheelbase219 cmReference

Weight3630 kgReference

Front tire10.5-20Reference

Rear tire16.9-30Reference

Ag front10.5-20Reference

Ag rear16.9-30Reference

Length440 cmReference

Height249 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
