Tractor · 1987Unverified

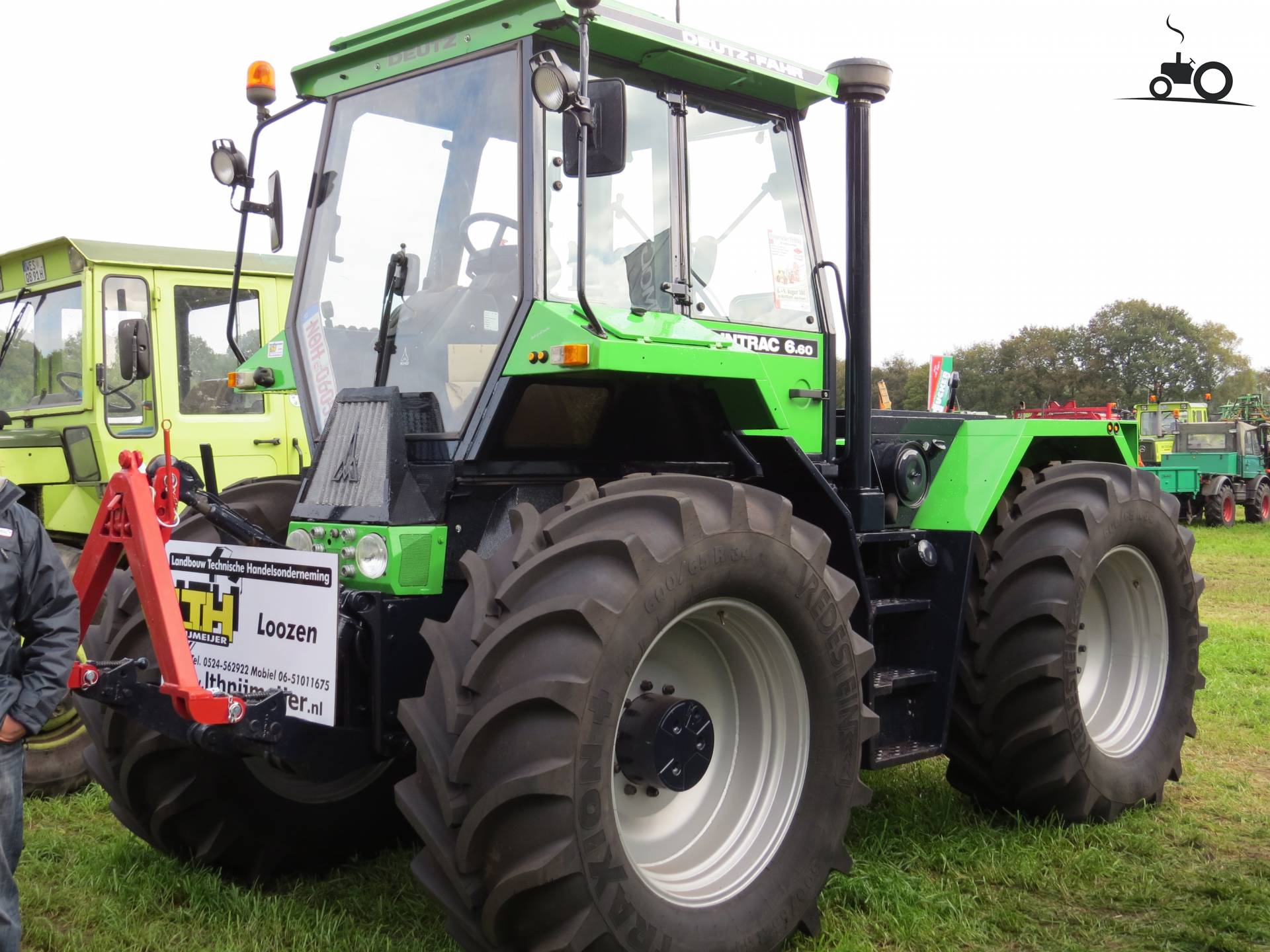

Deutz-Fahr Intrac 6.60
Deutz-Fahr Intrac 6.60 — Intrac 6 Series · 150 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
150 hp
Weight
6300 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Tool Carrier tractorReference
Drive4x4 4WDReference
Engine
Deutz 6.1L 6-cyl dieselReference
Fuel tank249.8 LReference
Engine111.9 kWReference
Deutz BF6L913Reference
turbocharged dieselReference
6-cylinderReference
air-cooledReference
Displacement6.1 LReference
Bore/Stroke102 x 125 mmReference
Power111.9 kWReference
Rated RPM2300Reference
Torque535.1 NmReference
Torque RPM1650Reference
Transmission
15-speedReference
30-speedReference
Gears15 forward and 5 reverseReference
Gears30 forward and 10 reverseReference
PTO & Hydraulics
Pressure175.0 barReference
Pump flow56.0 lpmReference
Rear lift4080 kgReference
Rear PTO Type540/1000Reference
Front PTO Type1000Reference
Dimensions
Wheelbase270 cmReference
Weight6300 kgReference
Front tire18.4R34Reference
Rear tire18.4R34Reference
Ag front18.4R34Reference
Ag rear18.4R34Reference
Length519 cmReference
Width239 cmReference
Height318 cmReference
Max weight10000 kgReference
Ground clearance57 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
