Tractor · 2007Unverified

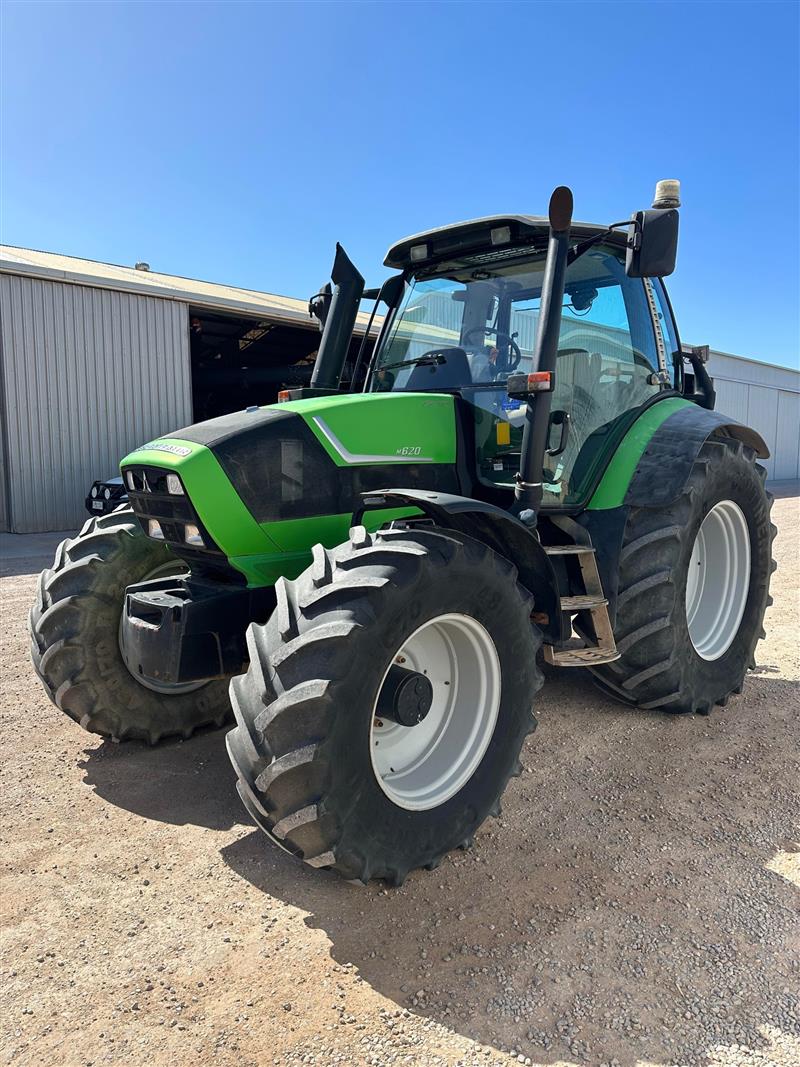

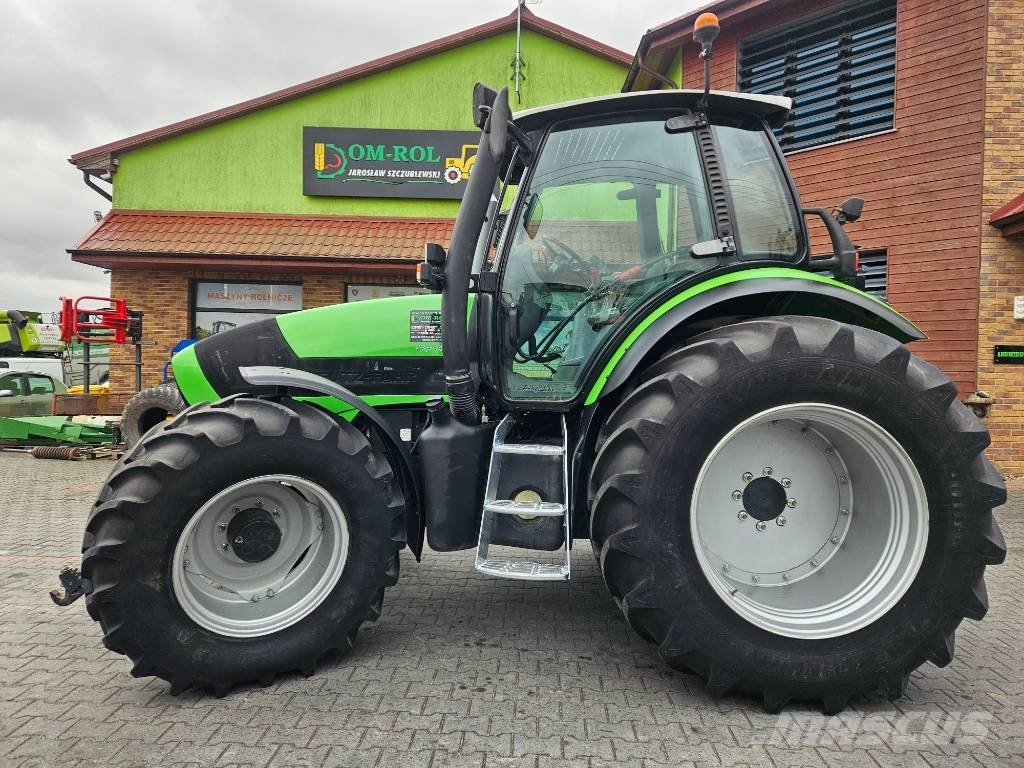

Deutz-Fahr M620

Name: Deutz-Fahr M620
Brand: Deutz-Fahr

Deutz-Fahr M620 — Agrotron M Series · 155 hp. Reference specifications; pending source verification.

The Deutz-Fahr M620 is a tractor with a rated power of 155 hp, positioning it at the more powerful end of its class. It was manufactured from 2007 to 2009. The tractor features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. Its listed operating weight is 5774 kg, making it suitable for operations covering 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

155 hp

Weight

5774 kg

Catalogue coverage

Variants represented

Richest spec table

69 rows

Recorded power

155 hp

Recorded weight

5774 kg

Transmissions

24-speed partial power shift

Production years

2007-2009

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerDeutz-FahrReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Deutz 6.1L 6-cyl dieselReference

Engine115.6 kWReference

DeutzReference

turbocharged intercooled dieselReference

6-cylinder 12-valveReference

liquid-cooledReference

Displacement6.1 LReference

Bore/Stroke101 x 126 mmReference

Power115.6 kWReference

Maximum Power123.8 kWReference

Rated RPM2100Reference

Torque655.1 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Transmission

24-speed partial power shiftReference

40-speed creeperReference

TransmissionZF 7200Reference

Typepartial power shiftReference

Gears24 forward and reverseReference

Clutchwet discReference

Four power shift gears in six synchronized ranges with power shuttle.Reference

ManufacturerZFReference

TypecreeperReference

Gears40 forward and reverseReference

Optional creeper provides an additional four ranges (with four speeds each) to the main transmission.Reference

Capacities

Fuel269.9 LReference

PTO & Hydraulics

Hydraulic system40.1 LReference

Typeopen centerReference

Typeload sensingReference

Capacity40.1 LReference

Pressure200.0 barReference

Rear valves4Reference

Pump flow82.9 lpmReference

Pump flow120.0 lpmReference

Steering flow41.6 lpmReference

Steering press.179.3 barReference

Rear TypeIII/IIReference

Controlposition and draft controlReference

Rear lift6187 kgReference

Rear lift9180 kgReference

Front HitchIIReference

Front lift3991 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM540@1995Reference

Engine RPM540E@1610Reference

Engine RPM1000@1995Reference

Engine RPM1000E@1610Reference

Front PTOindependentReference

Front PTO Type1000Reference

Engine RPM1000@1960Reference

Dimensions

Wheelbase264 cmReference

Weight5774 kgReference

Front tire480/70R24Reference

Rear tire520/70R38Reference

Standard tires (ag)Front: 480/70R24. Rear: 520/70R38Reference

Length458 cmReference

Height (cab)292 cmReference

Electrical

Charging systemalternatorReference

Charging amps150Reference

Battery volts12Reference

Battery AH143Reference

Battery AH190Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
