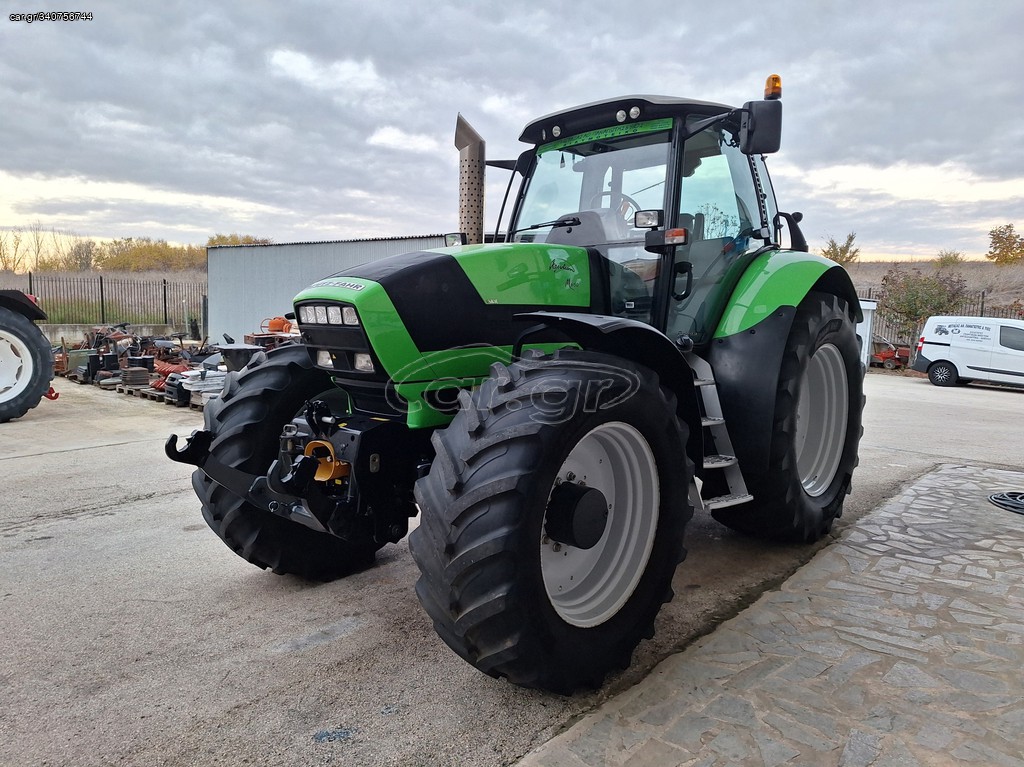

Deutz-Fahr M650
Deutz-Fahr M650 — Agrotron M Series · 181 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
181 hp
Weight
6749 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Deutz 6.1L 6-cyl dieselReference
Engine135.0 kWReference
DeutzReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.1 LReference
Bore/Stroke101 x 126 mmReference
Power135.0 kWReference
Maximum Power143.2 kWReference
Rated RPM2100Reference
Torque708.4 NmReference
Torque RPM1100Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed partial power shiftReference
40-speed creeperReference
TransmissionZF 7200Reference
Typepartial power shiftReference
Gears24 forward and reverseReference
Clutchwet discReference
Four power shift gears in six synchronized ranges with power shuttle.Reference
ManufacturerZFReference
TypecreeperReference
Gears40 forward and reverseReference
Optional creeper provides an additional four ranges (with four speeds each) to the main transmission.Reference
Capacities
Fuel305.1 LReference
PTO & Hydraulics
Hydraulic system40.1 LReference
Typeload sensingReference
Capacity40.1 LReference
Pressure200.0 barReference
Rear valves4Reference
Pump flow120.0 lpmReference
Steering flow41.6 lpmReference
Steering press.179.3 barReference
Rear TypeIII/IIReference
Controlposition and draft controlReference
Rear lift9180 kgReference
Front HitchIIReference
Front lift4490 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1995Reference
Engine RPM540E@1610Reference
Engine RPM1000@1995Reference
Engine RPM1000E@1610Reference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@1960Reference
Dimensions
Wheelbase281 cmReference
Weight6749 kgReference
Front tire540/65R34Reference
Rear tire650/65R42Reference
Standard tires (ag)Front: 540/65R34. Rear: 650/65R42Reference
Length481 cmReference
Height (cab)311 cmReference
Electrical
Charging systemalternatorReference
Charging amps200Reference
Battery volts12Reference
Battery AH190Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
