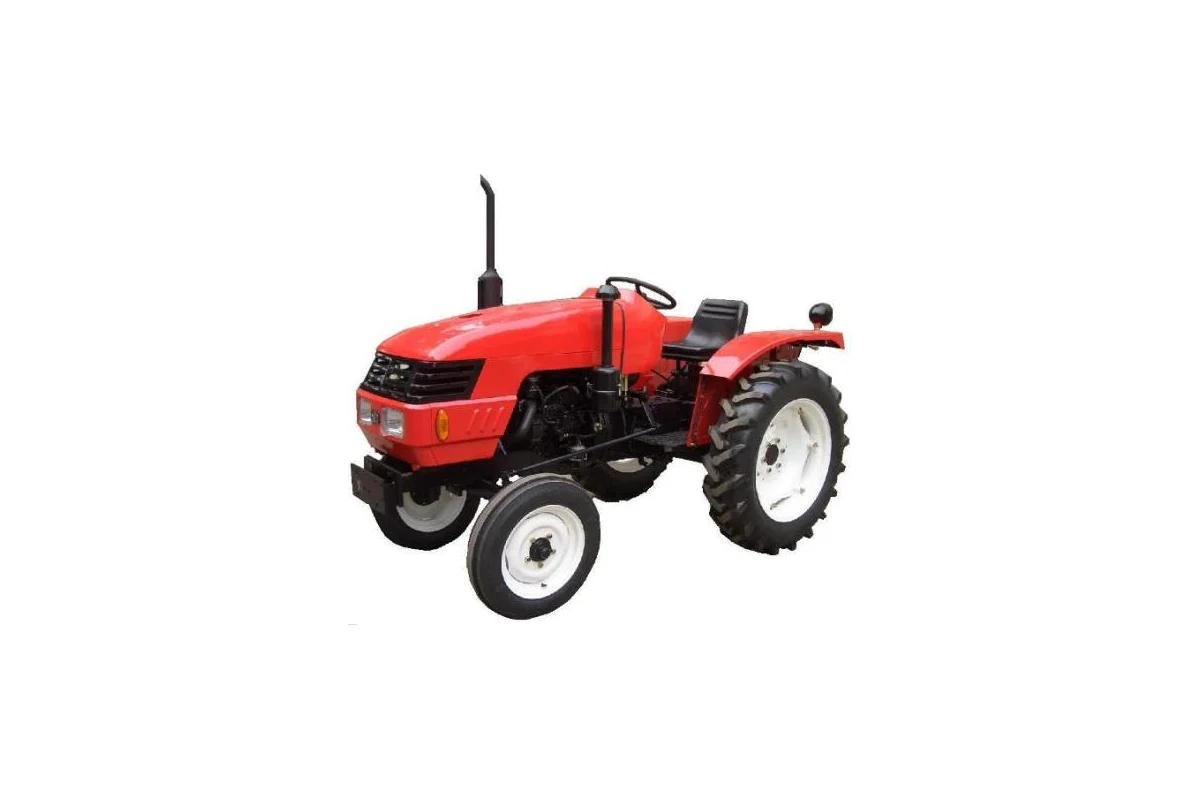

The Dongfeng DF-300 is a tractor with a rated output of 30 hp — making it one of the more compact options in its class. Under the hood is a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a 8-speed gearbox. Listed weight is 1240 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1240 kg
Catalogue coverage
Variants represented
2
Richest spec table
46 rows
Recorded power
30 hp
Recorded weight
1240 kg
Transmissions
8-speed gear
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerDongfengReference
Compact Utility tractorReference
Built in Changzhou, Jiangsu, ChinaReference
Two-wheel driveReference
Final drivesspur gearReference
SteeringpowerReference
Dry disc brakesReference
Two-post ROPS.Reference
Variants
DF-3044WDReference
Engine
Changchai 1.8L 3-cyl dieselReference
Engine22.4 kWReference
Changchai ZN390TReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.8 LReference
Bore/Stroke90 x 95 mmReference
Power22.4 kWReference
Fuel systemindirect injectionReference
Compression18:1Reference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Four gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Typeopen centerReference
Rear TypeIReference
Rear lift (at 24"/610mm)496 kgReference
Rear PTOlive (2-stage clutch)Reference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2187Reference
Engine RPM1000@2238Reference
Dimensions
Wheelbase170 cmReference
Weight1240 kgReference
Front tire5.00-15Reference
Rear tire11.2-24Reference
Ag front5.00-15Reference
Ag rear11.2-24Reference
Length323 cmReference
Width138 cmReference
Height153 cmReference
Ground clearance37 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
