Tractor · Unverified

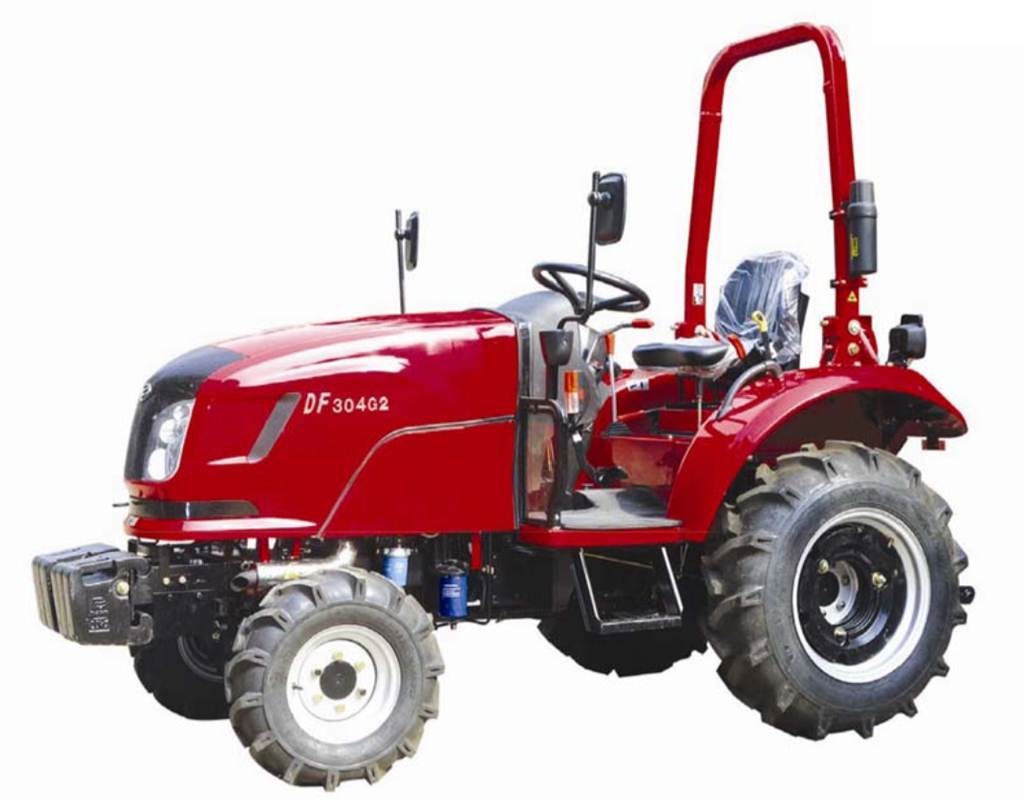

Dongfeng DF-304
Dongfeng DF-304 — Compact Utility tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1330 kg
Hover a source tag to verify
Overview
ManufacturerDongfengReference
Compact Utility tractorReference
Built in Changzhou, Jiangsu, ChinaReference
Four-wheel driveReference
Power steeringReference
Disc brakesReference
Variants
DF-3002WDReference
Engine
Changchai 1.8L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine22.4 kWReference
Changchai ZN390TReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.8 LReference
Bore/Stroke90 x 95 mmReference
Power22.4 kWReference
Fuel systemindirect injectionReference
Compression18:1Reference
Rated RPM2500Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Oil capacity25.0 LReference
Four gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Typeopen centerReference
Total flow26.1 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)496 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2187Reference
Engine RPM1000@2240Reference
Dimensions
Wheelbase169 cmReference
Weight1330 kgReference
Front tire6.5-16Reference
Rear tire11.2-24Reference
Ag front6.5-16Reference
Ag rear11.2-24Reference
Length323 cmReference
Width148 cmReference
Height153 cmReference
Ground clearance35 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
