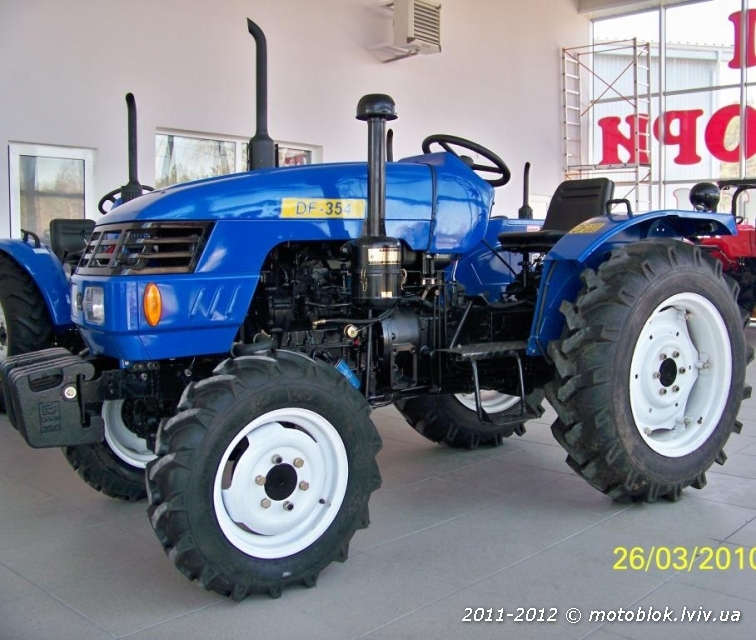

Dongfeng DF-354
Dongfeng DF-354 · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1385 kg
Hover a source tag to verify
Overview
ManufacturerDongfengReference
Built in Changzhou, Jiangsu, ChinaReference
Four-wheel driveReference
SteeringpowerReference
Disc brakesReference
Variants
DF-3502WDReference
Engine
2.2L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine26.1 kWReference
TY395Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke95 x 105 mmReference
Power26.1 kWReference
Compression22:1Reference
Rated RPM2400Reference
Oil capacity4.5 LReference
Coolant capacity8.2 LReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Oil capacity25.0 LReference
4/1 transmission with high and low rangesReference
PTO & Hydraulics
Total flow21.2 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)580 kgReference
Rear PTOlive (2-stage clutch)Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase173 cmReference
Weight1385 kgReference
Front tire6.5-16Reference
Rear tire11.2-24Reference
Ag front6.5-16Reference
Ag front7.50-16Reference
Ag rear11.2-24Reference
Ag rear12.4-24Reference
Lawn/turf front6.00x16Reference
Lawn/turf rear12.4x24Reference
Industrial front10x16.5Reference
Industrial rear16.5x22.5Reference
Length337 cmReference
Width150 cmReference
Height162 cmReference
Height240 cmReference
Ground clearance35 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
