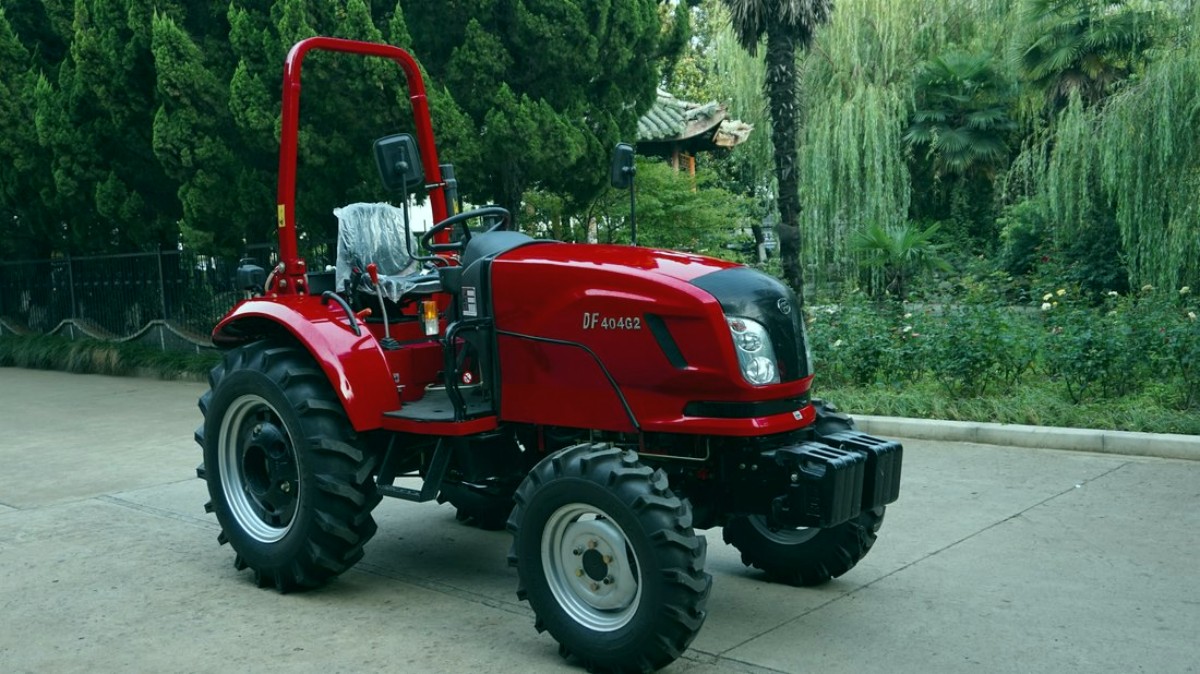

Dongfeng DF-404
Dongfeng DF-404 — Compact Utility tractor · 39 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
39 hp
Weight
2877 to 3170 pounds
Hover a source tag to verify
Overview
ManufacturerDongfengReference
Compact Utility tractorReference
Built in ChinaReference
Four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Disc brakesReference
Two-post ROPS.Reference
Variants
DF-4002WDReference
DF-4044WDReference
Engine
Changchai 2.5L 4-cyl dieselReference
Engine29.4 kWReference
Changchai ZN490BTReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke90 x 100 mmReference
Power29.4 kWReference
Fuel systemdirect injectionReference
Rated RPM2400Reference
Starter typeelectricReference
Transmission
8-speed gearReference
8-speed shuttleReference
TypegearReference
Gears8 forward and 2 reverseReference
TypeshuttleReference
Gears8 forward and reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear lift (at 24"/610mm)664 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Dimensions
2WD Wheelbase179 cmReference
4WD Wheelbase181 cmReference
Weight2877 to 3170 poundsReference
Front tire5.00-15Reference
2WD Rear tire12.4-24Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 12.4-24Reference
4WD Standard tires (ag)Front: 7.50-16. Rear: 12.4-24Reference
Length345 cmReference
Width149 cmReference
Height153 cmReference
2WD Weight1305 kgReference
4WD Weight1437 kgReference
2WD Ground clearance41 cmReference
4WD Ground clearance40 cmReference
2WD Front tread109/119/130 cmReference
4WD Front tread119 cmReference
Rear tread119/130/139 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
