Tractor · Unverified

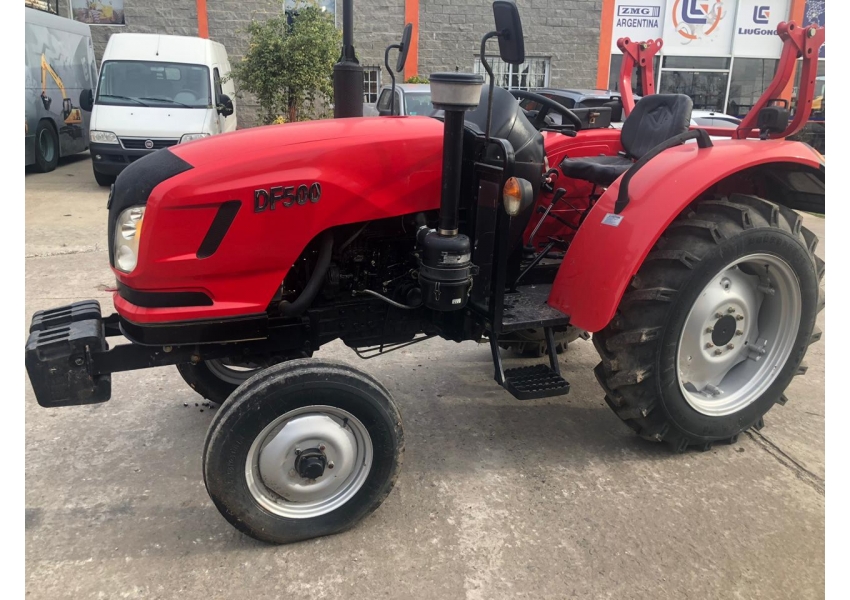

Dongfeng DF-500
Dongfeng DF-500 · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
2220 kg
Hover a source tag to verify
Overview
ManufacturerDongfengReference
Built in Changzhou, Jiangsu, ChinaReference
Two-wheel driveReference
Steeringhydraulic powerReference
Wet disc brakesReference
Variants
DF-5044WDReference
Engine
4.3L 4-cyl dieselReference
Engine41.0 kWReference
LR4105TReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke105 x 125 mmReference
Power41.0 kWReference
Rated RPM2300Reference
Transmission
12-speedReference
Gears12 forward and 3 reverseReference
PTO & Hydraulics
Rear TypeIIReference
Rear lift (at 24"/610mm)1122 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase105 cmReference
Weight2220 kgReference
Front tire6.00-16Reference
Rear tire13.6-28Reference
Ag front6.00-16Reference
Ag rear13.6-28Reference
Length388 cmReference
Width182 cmReference
Height244 cmReference
Ground clearance44 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
