Tractor · Unverified

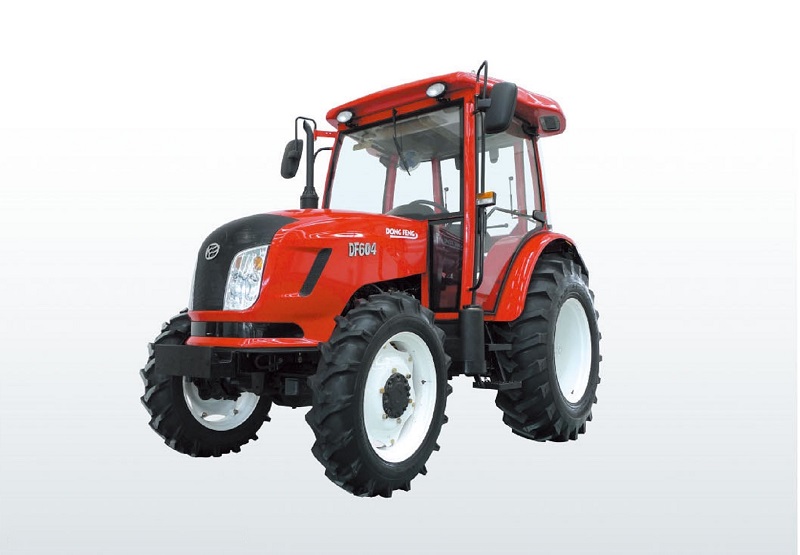

Dongfeng DF-604
Dongfeng DF-604 · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
2380 kg
Hover a source tag to verify
Overview
ManufacturerDongfengReference
Built in Changzhou, Jiangsu, ChinaReference
Four-wheel driveReference
Steeringhydraulic powerReference
Wet disc brakesReference
Variants
DF-6002WDReference
Engine
4.3L 4-cyl dieselReference
Engine44.7 kWReference
LR4105TReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke105 x 125 mmReference
Power44.7 kWReference
Rated RPM2300Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Rear TypeIIReference
Rear lift (at 24"/610mm)1122 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase208 cmReference
Weight2380 kgReference
Front tire8.3-24Reference
Rear tire14.9-28Reference
Ag front8.3-24Reference
Ag rear14.9-28Reference
Length388 cmReference
Width182 cmReference
Height244 cmReference
Ground clearance35 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
