Tractor · Unverified

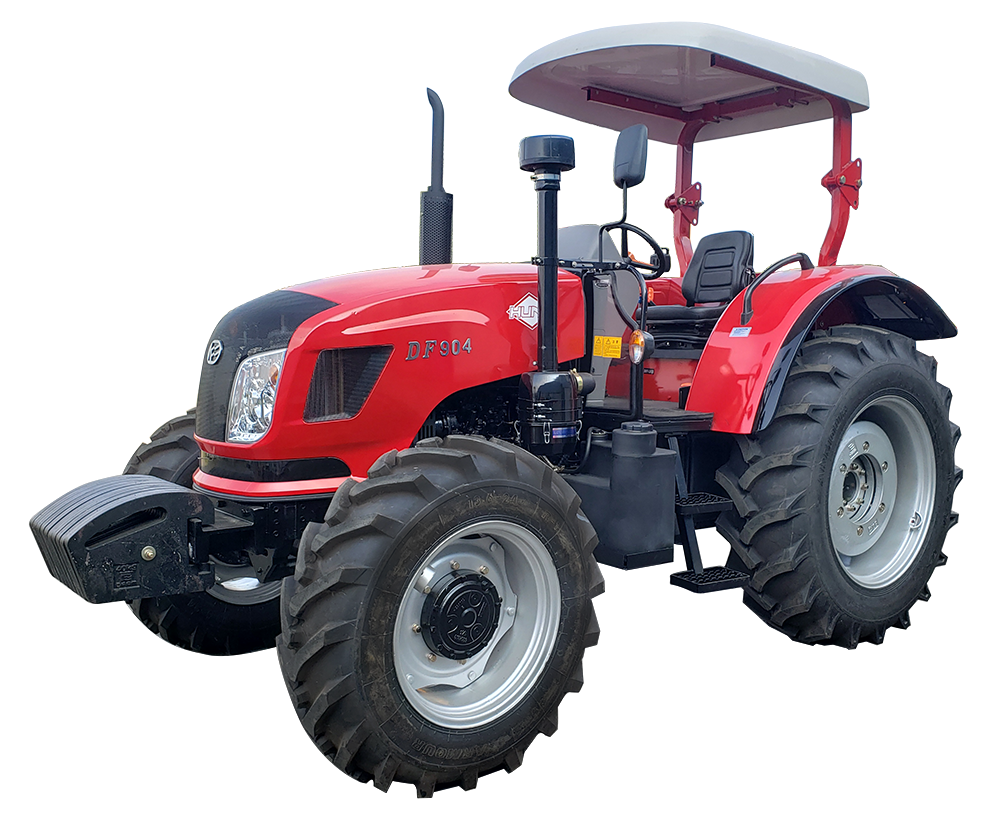

Dongfeng DF-904
Dongfeng DF-904 · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
3575 kg
Hover a source tag to verify
Overview
ManufacturerDongfengReference
Built in Changzhou, Jiangsu, ChinaReference
Four-wheel driveReference
Steeringhydraulic powerReference
Wet disc brakesReference
Variants
DF-9002WDReference
Engine
4.3L 4-cyl dieselReference
Engine67.1 kWReference
M4C66-TReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke108 x 120 mmReference
Power67.1 kWReference
Rated RPM2300Reference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Rear PTOlive (2-stage clutch)Reference
Rear PTO Type540/1000Reference
Rear PTO Type760/1000Reference
Dimensions
Wheelbase219 cmReference
Weight3575 kgReference
Front tire11.2-24Reference
Rear tire16.9-34Reference
Ag front11.2-24Reference
Ag rear16.9-34Reference
Length459 cmReference
Width204 cmReference
Height280 cmReference
Ground clearance37 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
