Tractor · 1930Unverified

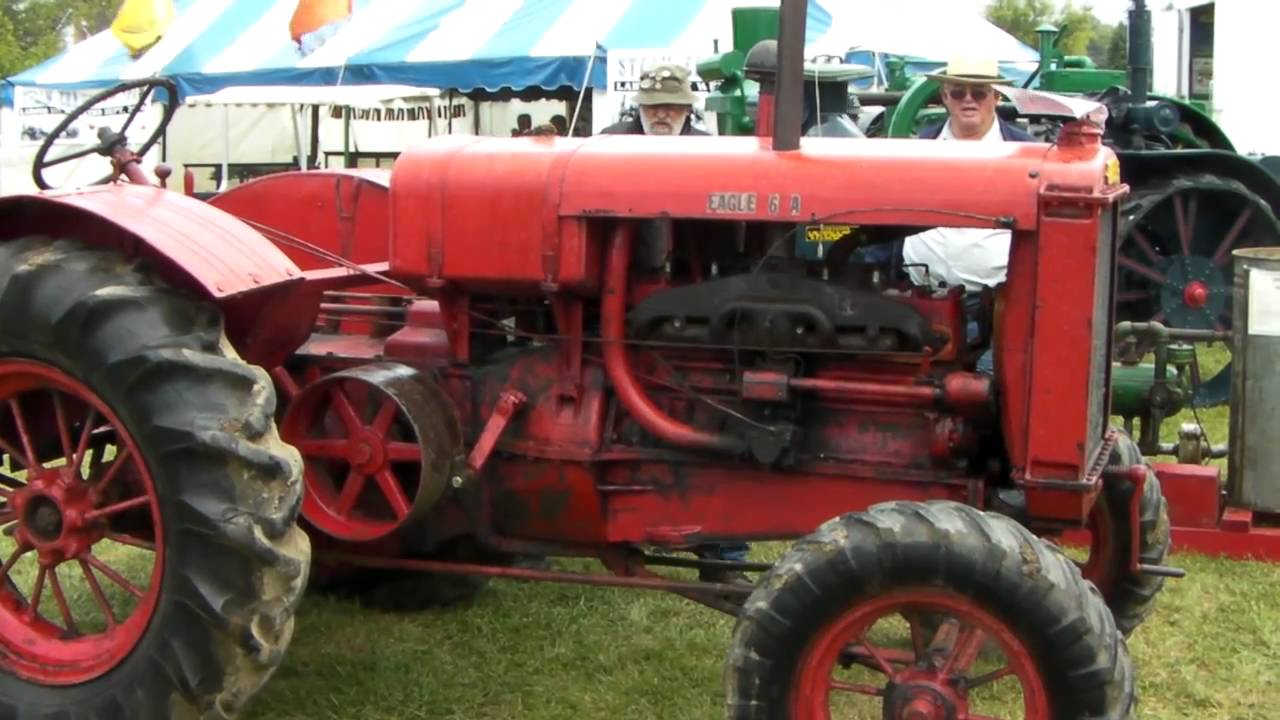

Eagle Manufacturing 6A
Eagle Manufacturing 6A — Standard-tread tractor · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Max power
22.0 kW
Weight
2268 kg
Hover a source tag to verify
Overview
ManufacturerEagle ManufacturingReference
Standard-tread tractorReference
Built in Appleton, Wisconsin, USAReference
Two-wheel driveReference
Final drivesspur gearReference
SteeringmanualReference
Open operator station.Reference
Engine
Hercules 5.6L 6-cyl gasolineReference
Waukesha 5.9L 6-cylReference
Drawbar (claimed)16.4 kWReference
Belt (claimed)27.6 kWReference
Plows3-4 (14-inch)Reference
Drawbar (tested)22.0 kWReference
Belt (tested)30.1 kWReference
HerculesReference
gasolineReference
6-cylinder 12-valveReference
liquid-cooledReference
Displacement5.6 LReference
Bore/Stroke102 x 114 mmReference
Fuel systemZenith carburetorReference
Rated RPM1416Reference
WaukeshaReference
6-cylinderReference
Displacement5.9 LReference
Bore/Stroke102 x 121 mmReference
Belt power (max)30.1 kWReference
Max power22.0 kWReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Clutchdry discReference
Dimensions
Weight2268 kgReference
Rear tire48x12Reference
Ag rear48x12 (steel)Reference
Length340 cmReference
Width177 cmReference
Height154 cmReference
Capacities
Diameter40 cmReference
Width20 cmReference
RPM625Reference
Speed792.48 meters/minReference
Test results
Hercules 3-speed 2WDOctober 21 - November 1, 1930Link: Nebraska Tractor Test 184 fileReference
Belt fuel use (max)16.3 l/hourReference
Drawbar performanceReference
Gear 2 used for power test.Reference
Max pull2109 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
