Tractor · 1913Unverified

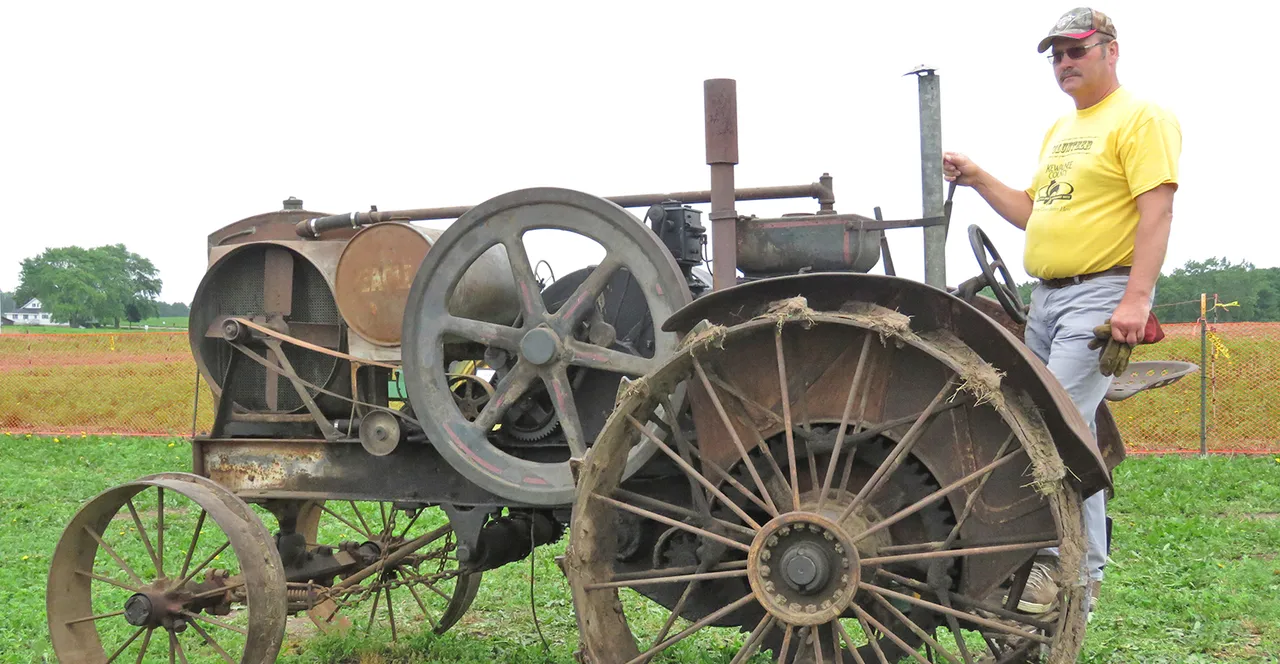

Eagle Manufacturing D 16-30

Name: Eagle Manufacturing D 16-30
Brand: Eagle Manufacturing

Eagle Manufacturing D 16-30 — Standard-tread tractor · 16 hp. Reference specifications; pending source verification.

The Eagle Manufacturing D 16-30 is a compact tractor model with a power rating of 16 hp. Manufactured from 1913 to 1916, it features a 2-cylinder liquid-cooled engine and a 2-speed gearbox for two-wheel drive operation. Suitable for use on areas of up to 200 acres, this model's specifications are provided in both UK and US units.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

16 hp

Catalogue coverage

Variants represented

Richest spec table

28 rows

Recorded power

16 hp

Transmissions

2-speed gear

Production years

1913-1916

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerEagle ManufacturingReference

Standard-tread tractorReference

Built in Appleton, Wisconsin, USAReference

Two-wheel driveReference

Final drivesspur gearReference

SteeringmanualReference

Open operator station.Reference

Engine

Eagle Manufacturing 13.2L 2-cyl keroseneReference

Drawbar (claimed)11.9 kWReference

Belt (claimed)22.4 kWReference

Plows4-5 (14-inch)Reference

Eagle ManufacturingReference

keroseneReference

2-cylinder 4-valveReference

liquid-cooledReference

Displacement13.2 LReference

Bore/Stroke203 x 203 mmReference

Fuel systemLinga carburetorReference

Rated RPM425Reference

Starter typehand-crankReference

Transmission

2-speed gearReference

TypegearReference

Gears2 forward and 1 reverseReference

Dimensions

Rear tire52x12Reference

Ag rear52x12 (steel)Reference

Length358 cmReference

Width177 cmReference

Height198 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
