Tractor · 1916Unverified

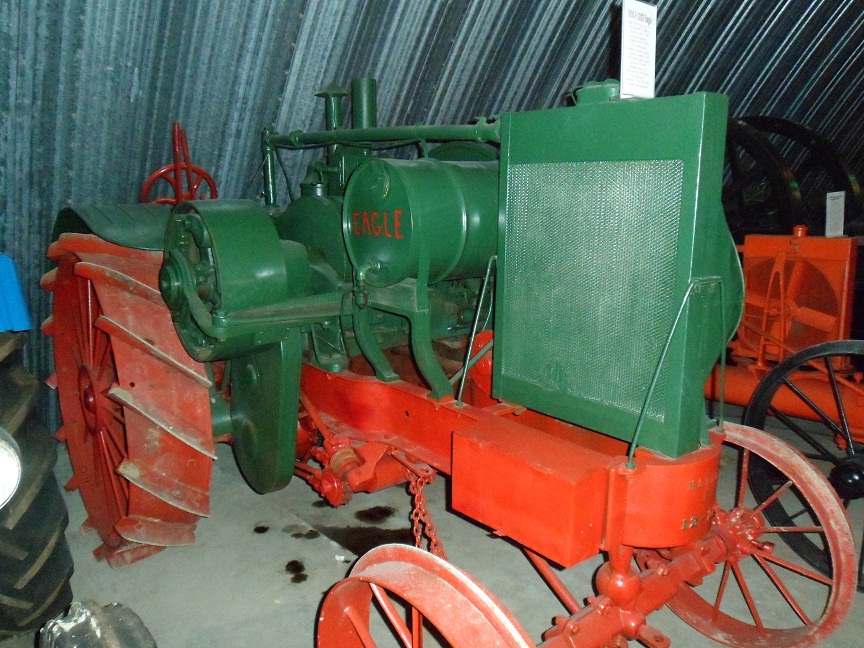

Eagle Manufacturing F 12-22

Name: Eagle Manufacturing F 12-22
Brand: Eagle Manufacturing

Eagle Manufacturing F 12-22 — Standard-tread tractor · 12 hp. Reference specifications; pending source verification.

The Eagle Manufacturing F 12-22 is a compact tractor model with a rated output of 12 hp. It was manufactured from 1916 to 1922 and features a 2-cylinder liquid-cooled engine, which drives through a two-wheel drive system with a 2-speed gearbox. The F 12-22 has a listed weight of 2653 kg and is suitable for tasks covering areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

12 hp

Max power

11.0 kW

Weight

2653 kg

Catalogue coverage

Variants represented

Richest spec table

43 rows

Recorded power

12 hp

Recorded weight

2653 kg

Transmissions

2-speed gear

Production years

1916-1922

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerEagle ManufacturingReference

Standard-tread tractorReference

Built in Appleton, Wisconsin, USAReference

Two-wheel driveReference

Final drivesspur gearReference

SteeringmanualReference

Open operator station.Reference

Engine

Eagle Manufacturing 10.1L 2-cyl keroseneReference

Drawbar (claimed)8.9 kWReference

Belt (claimed)16.4 kWReference

Plows3 (14-inch)Reference

Drawbar (tested)11.0 kWReference

Belt (tested)17.4 kWReference

Eagle ManufacturingReference

keroseneReference

2-cylinder 4-valveReference

liquid-cooledReference

Displacement10.1 LReference

Bore/Stroke178 x 203 mmReference

Fuel systemSchebler carburetorReference

Rated RPM450Reference

Starter typehand-crankReference

Belt power (max)17.4 kWReference

Max power11.0 kWReference

Transmission

2-speed gearReference

TypegearReference

Gears2 forward and 1 reverseReference

Dimensions

Weight2653 kgReference

Rear tire48x12Reference

Ag rear48x12 (steel)Reference

Length335 cmReference

Width165 cmReference

Height193 cmReference

Capacities

Diameter50 cmReference

Width21 cmReference

RPM450Reference

Speed716.28 meters/minReference

Test results

Kerosense 2-speed 2WDAugust 18 - 21, 1921Link: Nebraska Tractor Test 81 fileReference

Belt fuel use (max)12.1 l/hourReference

Drawbar performanceReference

Gear 1 used for power test.Reference

Max pull1231 kgReference

Gear 1 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
