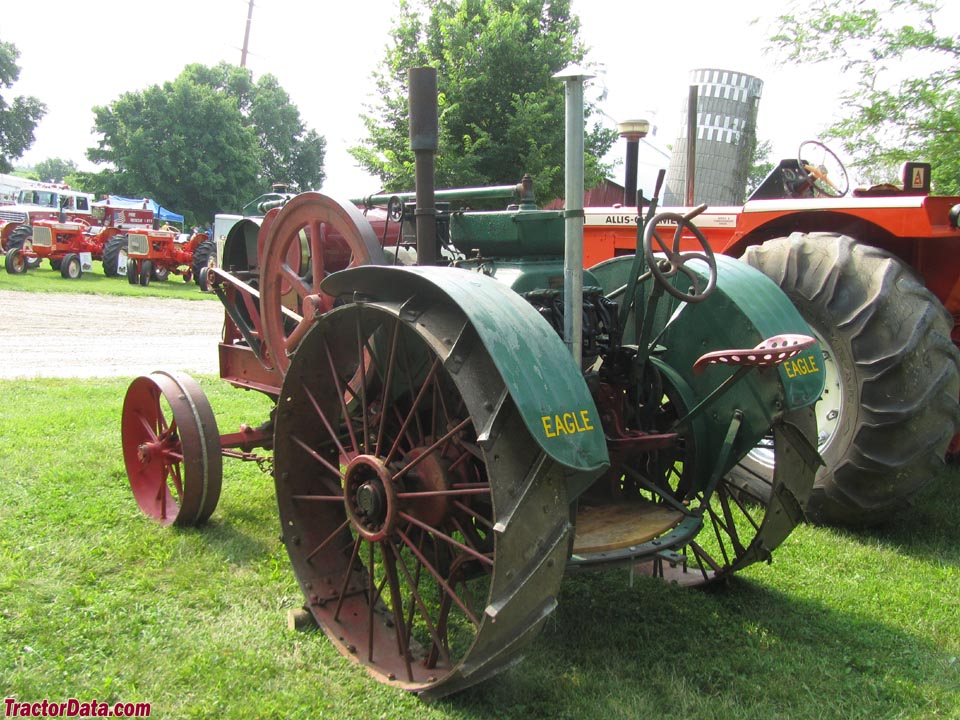

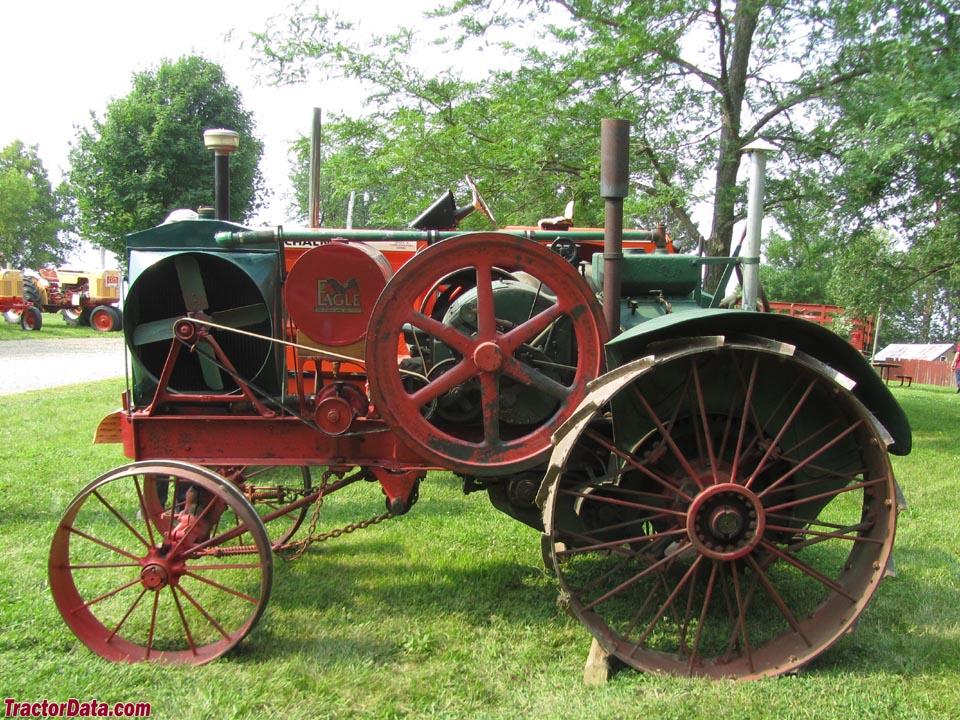

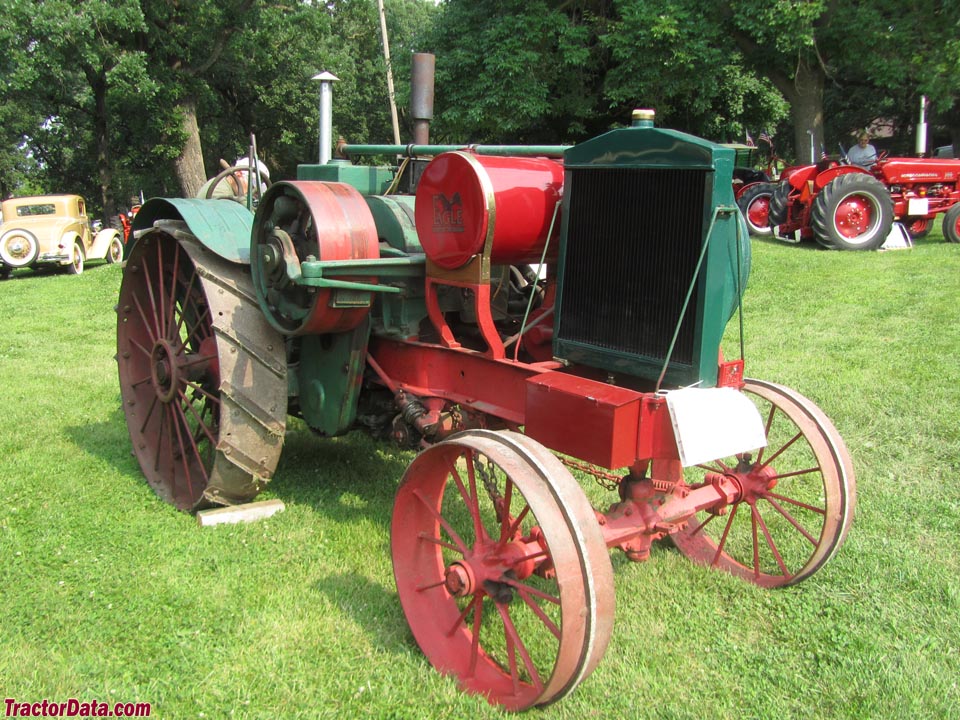

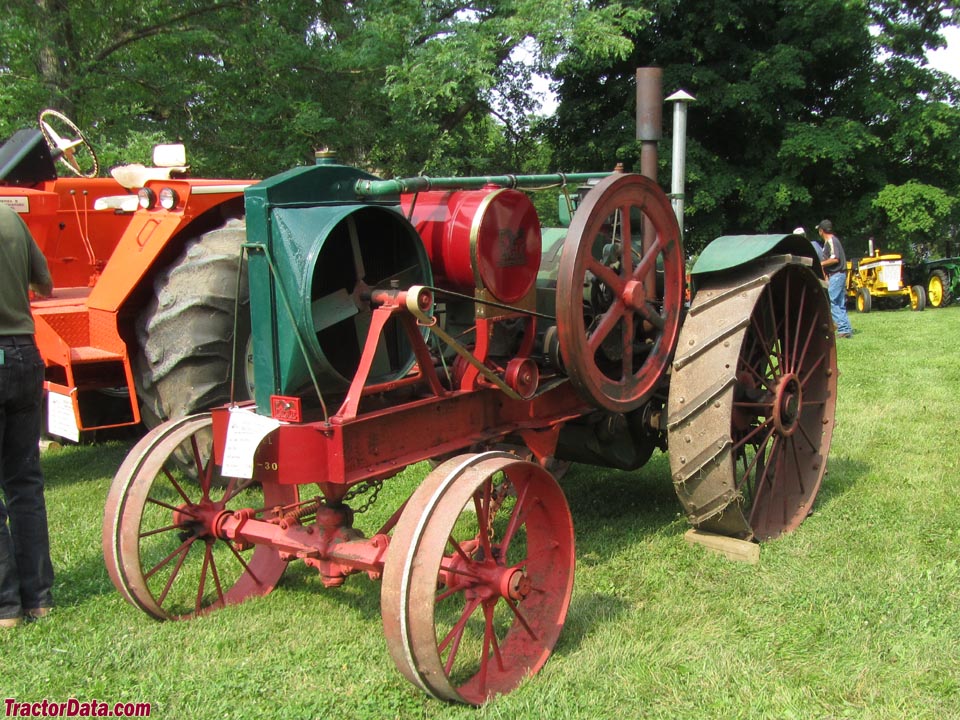

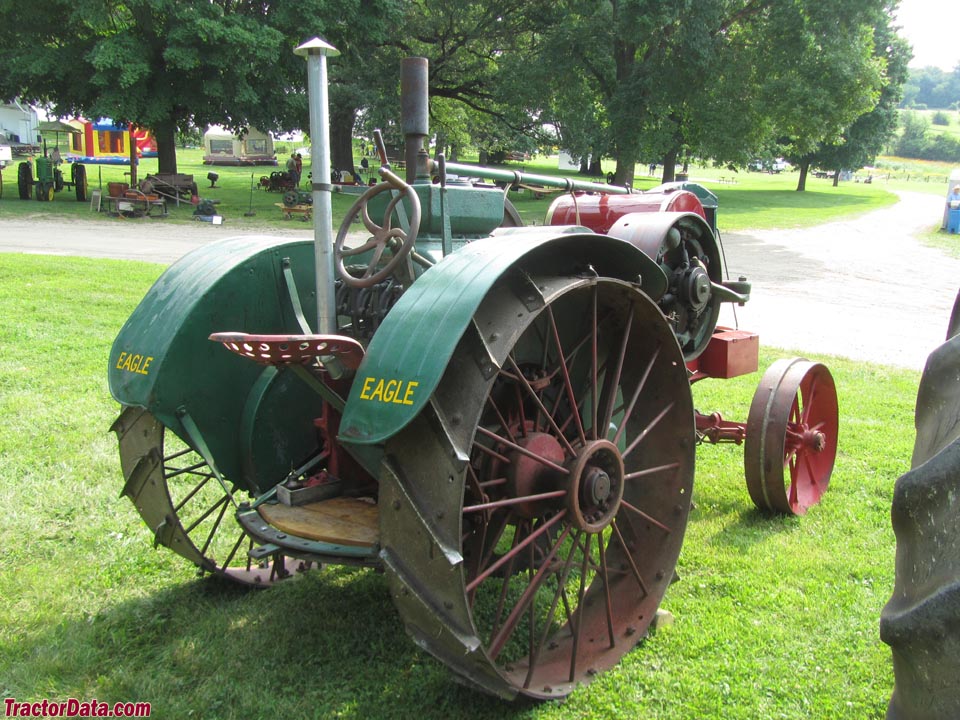

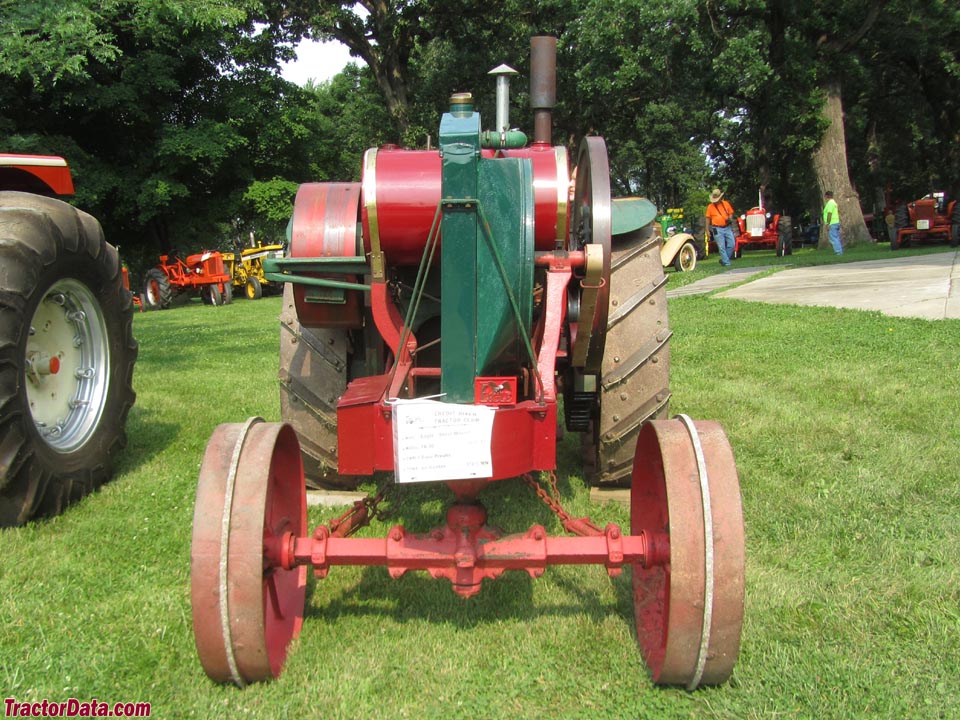

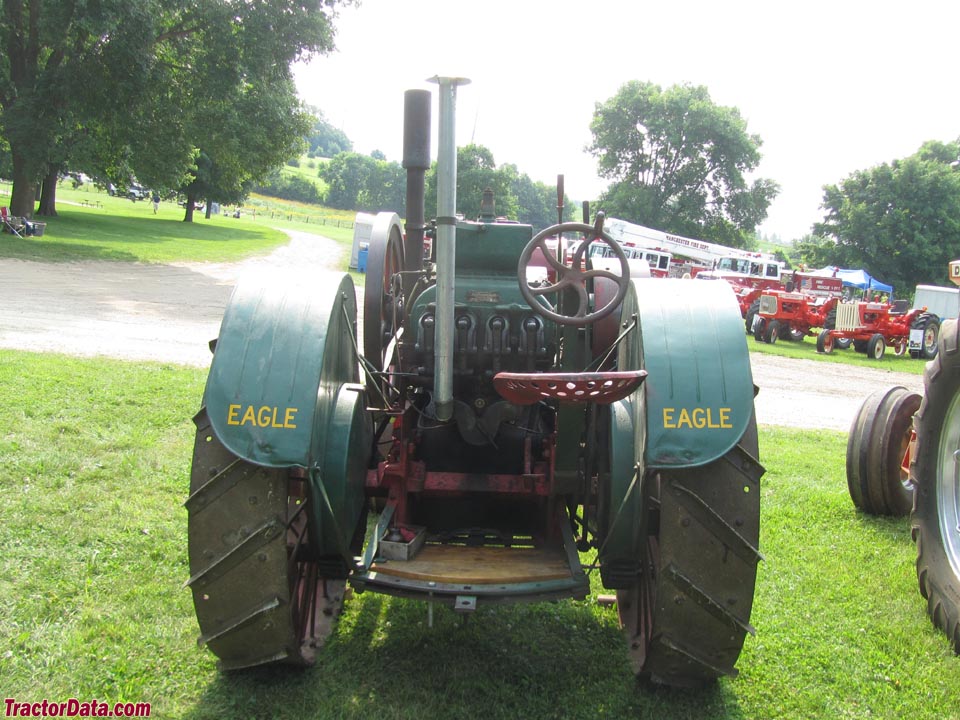

Eagle Manufacturing F 16-30
Eagle Manufacturing F 16-30 — Standard-tread tractor · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Max power
14.9 kW
Weight
3220 kg
Hover a source tag to verify
Overview
ManufacturerEagle ManufacturingReference
Standard-tread tractorReference
Built in Appleton, Wisconsin, USAReference
Two-wheel driveReference
Final drivesspur gearReference
SteeringmanualReference
Open operator station.Reference
Engine
Eagle Manufacturing 13.2L 2-cyl keroseneReference
Drawbar (claimed)11.9 kWReference
Belt (claimed)22.4 kWReference
Plows4 (14-inch)Reference
Drawbar (tested)14.9 kWReference
Belt (tested)23.7 kWReference
Eagle ManufacturingReference
keroseneReference
2-cylinder 4-valveReference
liquid-cooledReference
Displacement13.2 LReference
Bore/Stroke203 x 203 mmReference
Fuel systemSchebler carburetorReference
Rated RPM450Reference
Starter typehand-crankReference
Belt power (max)23.7 kWReference
Max power14.9 kWReference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
Dimensions
Weight3220 kgReference
Rear tire52x12Reference
Ag rear52x12 (steel)Reference
Length358 cmReference
Width177 cmReference
Height198 cmReference
F 16-30 Serial Number Location
Serial number plate ahead of operator platform.Reference
Capacities
Diameter60 cmReference
Width25 cmReference
RPM450Reference
Speed853.44 meters/minReference
Test results
Kerosene 2-speed 2WDAugust 17 - 25, 1921Link: Nebraska Tractor Test 80 fileReference
Belt fuel use (max)15.9 l/hourReference
Drawbar performanceReference
Gear 1 used for power test.Reference
Max pull1639 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
