Tractor · 1922Unverified

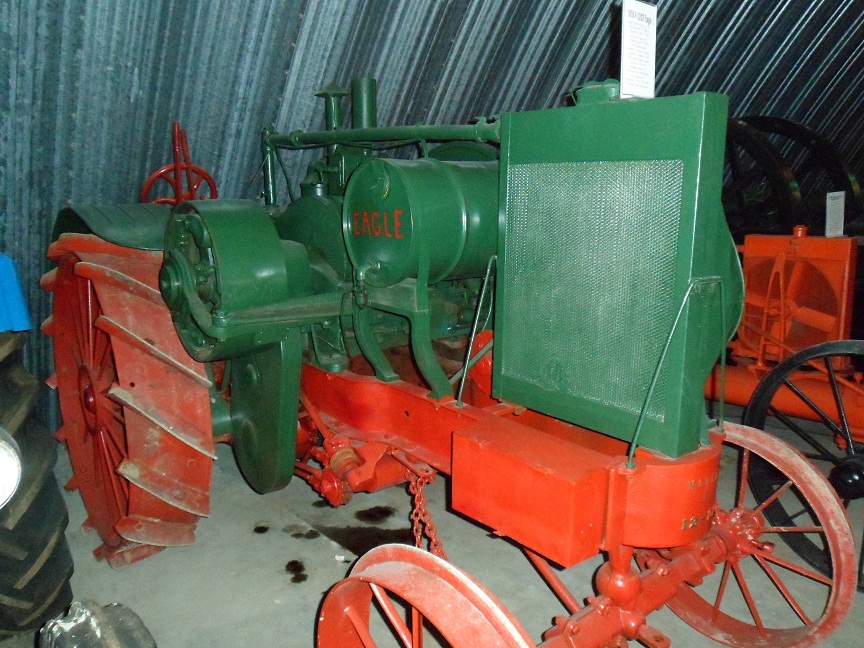

Eagle Manufacturing H 13-25
Eagle Manufacturing H 13-25 — Standard-tread tractor · 13 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
2630 kg
Hover a source tag to verify
Overview
ManufacturerEagle ManufacturingReference
Standard-tread tractorReference
Built in Appleton, Wisconsin, USAReference
Two-wheel driveReference
Final drivesspur gearReference
SteeringmanualReference
Open operator station.Reference
Engine
Eagle Manufacturing 10.1L 2-cyl keroseneReference
Drawbar (claimed)9.7 kWReference
Belt (claimed)18.6 kWReference
Plows3 (14-inch)Reference
Eagle ManufacturingReference
keroseneReference
2-cylinder 4-valveReference
liquid-cooledReference
Displacement10.1 LReference
Bore/Stroke178 x 203 mmReference
Fuel systemSchebler carburetorReference
Rated RPM450Reference
Starter typehand-crankReference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
Dimensions
Weight2630 kgReference
Rear tire48x12Reference
Ag rear48x12 (steel)Reference
Length335 cmReference
Width165 cmReference
Height193 cmReference
Capacities
Diameter50 cmReference
Width21 cmReference
RPM450Reference
Speed716.28 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
