Tractor · 1922Unverified

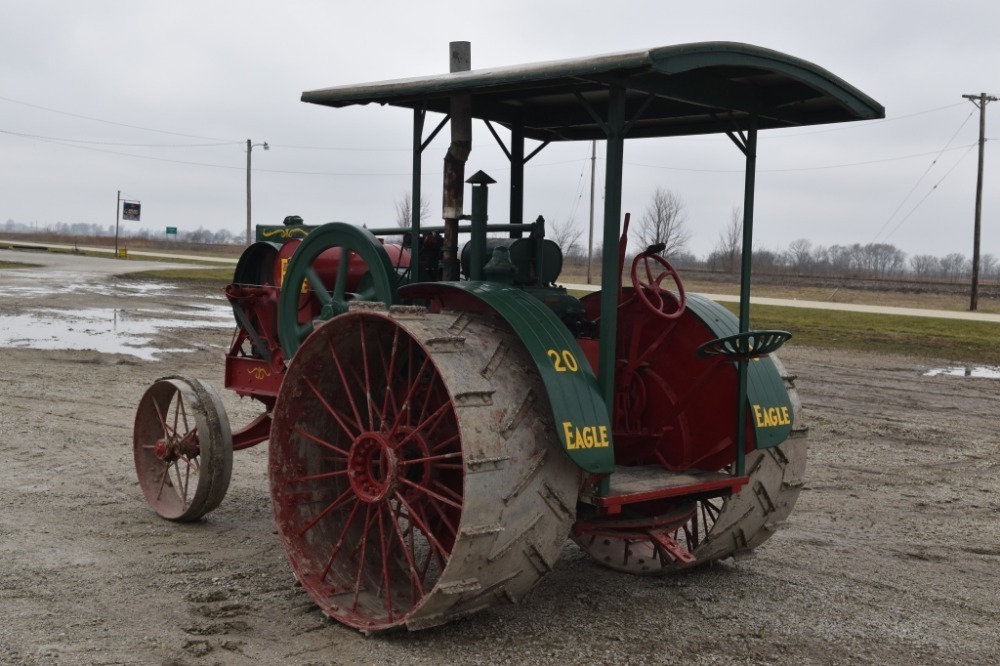

Eagle Manufacturing H 20-40

Name: Eagle Manufacturing H 20-40
Brand: Eagle Manufacturing

Eagle Manufacturing H 20-40 — Standard-tread tractor · 20 hp. Reference specifications; pending source verification.

The Eagle Manufacturing H 20-40 is a tractor with a rated power output of approximately 20 hp, positioning it within the lighter end of its class. In production from 1922 to 1930, this model features a 2-cylinder liquid-cooled engine and two-wheel drive with a 2-speed gearbox. Its listed operating weight is 3556 kg, making it suitable for operations encompassing up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Weight

3556 kg

Catalogue coverage

Variants represented

Richest spec table

32 rows

Recorded power

20 hp

Recorded weight

3556 kg

Transmissions

2-speed gear

Production years

1922-1930

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerEagle ManufacturingReference

Standard-tread tractorReference

Built in Appleton, Wisconsin, USAReference

Two-wheel driveReference

Final drivesspur gearReference

SteeringmanualReference

Open operator station.Reference

Engine

Eagle Manufacturing 16.5L 2-cyl keroseneReference

Drawbar (claimed)14.9 kWReference

Belt (claimed)29.8 kWReference

Eagle ManufacturingReference

keroseneReference

2-cylinder 4-valveReference

liquid-cooledReference

Displacement16.5 LReference

Bore/Stroke203 x 254 mmReference

Fuel systemSchebler carburetorReference

Rated RPM450Reference

Starter typehand-crankReference

Transmission

2-speed gearReference

TypegearReference

Gears2 forward and 1 reverseReference

Dimensions

Weight3556 kgReference

Rear tire52x18Reference

Ag rear52x18 (steel)Reference

Length373 cmReference

Width195 cmReference

Height203 cmReference

Capacities

Diameter60 cmReference

Width25 cmReference

RPM450Reference

Speed853.44 meters/minReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
