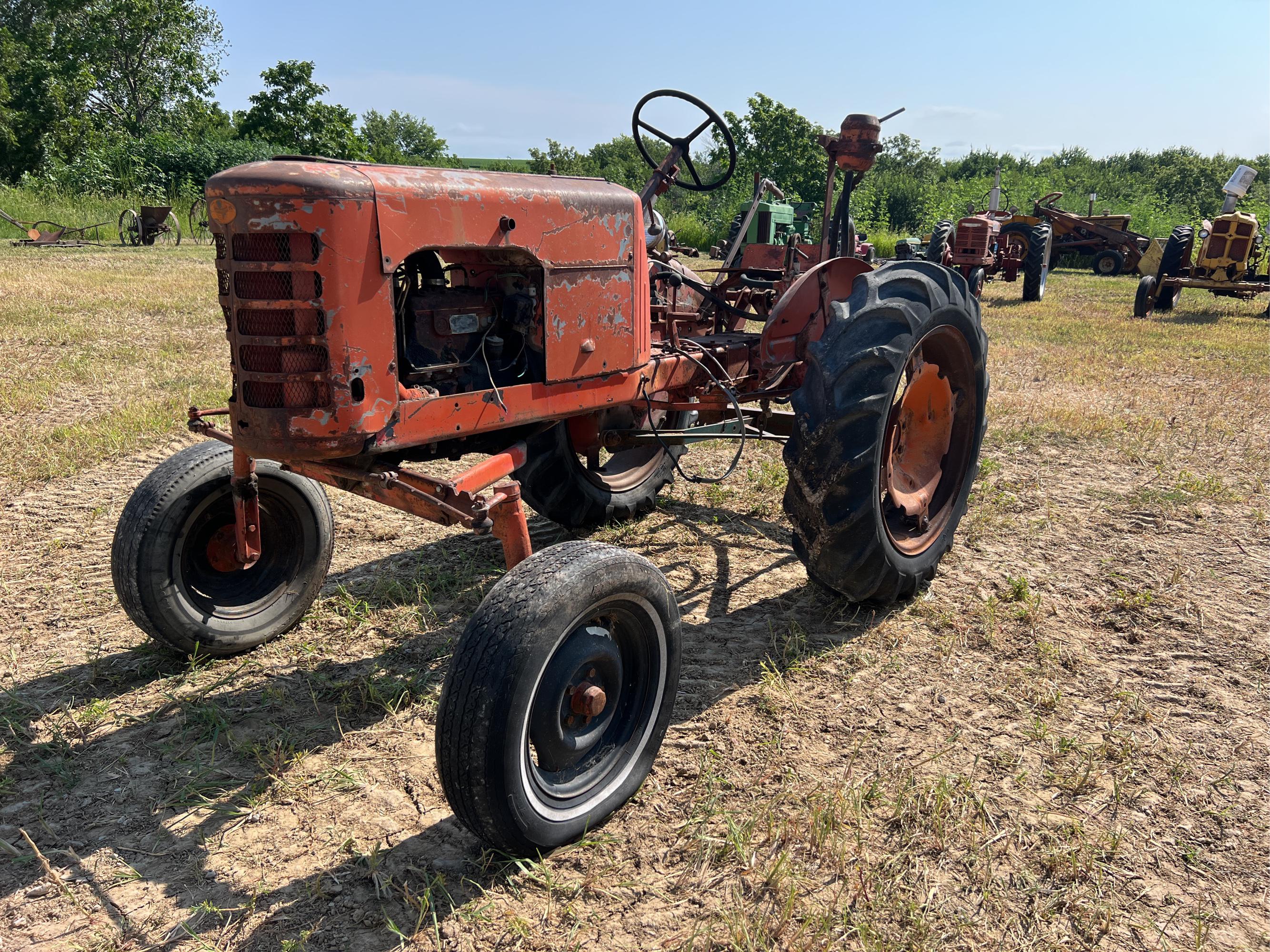

The Earthmaster DH is a tractor model that was produced in 1948. Its powerplant consists of a 4-cylinder petrol liquid-cooled engine coupled with a two-wheel drive system and a 3-speed gearbox. This tractor is suited for various operations. Detailed specifications for both UK and US markets are provided in the accompanying table.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Catalogue coverage
Variants represented
2
Richest spec table
36 rows
Transmissions
3-speed
Production years
1948-1948
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerEarthmasterReference
Built in Burbank, California, USAReference
Two-wheel driveReference
Disc brakesReference
Engine
Continental 1.0L 4-cyl gasolineReference
Fuel tank26.5 LReference
Plows1 (14-inch)Reference
Continental N62Reference
gasolineReference
4-cylinderReference
liquid-cooled vertical L-headReference
Displacement1.0 LReference
Bore/Stroke61 x 89 mmReference
Rated RPM2000Reference
Torque50.2 NmReference
Torque RPM1600Reference
Coolant capacity5.7 LReference
Oil capacity3.8 LReference
Transmission
3-speedReference
Gears3 forward and 1 reverseReference
Oil capacity2.4 LReference
Oil type[0oC]Reference
32oF [0oC]↑: SAE140Reference
32oF [0oC]↓: SAE90Reference
PTO & Hydraulics
Rear PTOtransmissionReference
Dimensions
Wheelbase167 cmReference
Front tire4.00x15Reference
Rear tire7-30Reference
Ag front4.00x15Reference
Ag rear7-30Reference
Length254 cmReference
Width180 cmReference
Height162 cmReference
Ground clearance62 cmReference
Capacities
RPM1540Reference
Speed862.58 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
