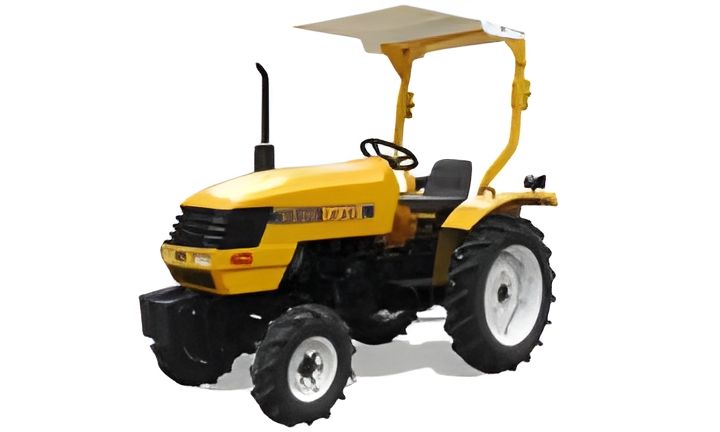

The East Wind DF254 is a compact tractor model rated at 24 hp. It features a 3-cylinder diesel liquid-cooled engine, coupled with a four-wheel drive system and an 8-speed gearbox. This model is suited to tasks involving areas of approximately 200 acres. Specifications for the UK and US are detailed below.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Catalogue coverage
Variants represented
2
Richest spec table
42 rows
Recorded power
24 hp
Transmissions
8-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerEast Wind (a part of Dongfeng)Reference
Four-wheel driveReference
Steeringhydraulic powerReference
Disc brakesReference
Engine
1.5L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine17.9 kWReference
Y385TReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke85 x 90 mmReference
Power17.9 kWReference
Compression22:1Reference
Rated RPM2400Reference
Oil capacity6.0 LReference
Coolant capacity10.0 LReference
Transmission
8-speedReference
Gears8 forward and reverseReference
Gears8 forward and 2 reverseReference
Oil capacity20.0 LReference
4/1 transmission with high and low ranges.Reference
PTO & Hydraulics
Rear TypeIReference
Rear lift (at 24"/610mm)423 kgReference
Rear PTOlive (2-stage clutch)Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase169 cmReference
Front tire6.00-12Reference
Rear tire8.3-24Reference
Ag front6.00-12Reference
Ag rear8.3-24Reference
Ag rear9.5-24Reference
Lawn/turf front7.5x12Reference
Lawn/turf rear11.2x20Reference
Lawn/turf front8.5x12Reference
Lawn/turf rear14x17.5Reference
Length326 cmReference
Width156 cmReference
Height155 cmReference
Height225 cmReference
Ground clearance29 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
