Tractor · Unverified

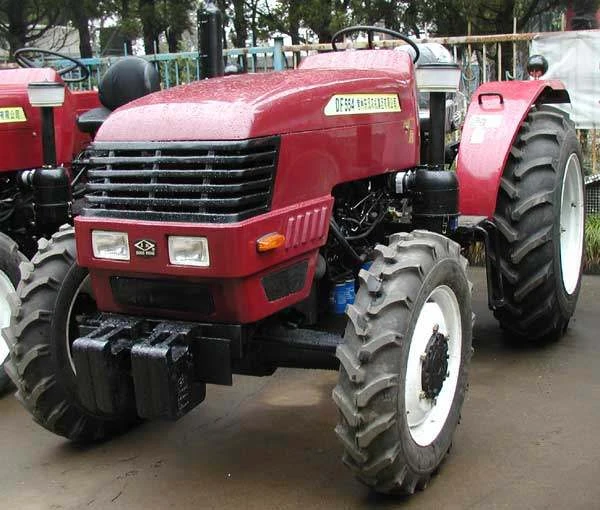

East Wind DF554
East Wind DF554 · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
2370 kg
Hover a source tag to verify
Overview
ManufacturerEast Wind (a part of Dongfeng)Reference
Built in Changzhou, Jiangsu, ChinaReference
Four-wheel driveReference
Steeringhydraulic powerReference
Wet disc brakesReference
Engine
4.3L 4-cyl dieselReference
Fuel tank60.0 LReference
Engine41.0 kWReference
LR4105TReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke105 x 125 mmReference
Power41.0 kWReference
Compression17:1Reference
Rated RPM2300Reference
Oil capacity12.0 LReference
Coolant capacity7.5 LReference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Oil capacity25.0 LReference
PTO & Hydraulics
Valves2Reference
Pump flow36.0 lpmReference
Steering flow23.1 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)1122 kgReference
Rear PTOlive (dual-stage clutch)Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase208 cmReference
Weight2370 kgReference
Front tire7.50-20Reference
Rear tire13.6-28Reference
Ag front7.50-20Reference
Ag front9.5-24Reference
Ag rear13.6-28Reference
Ag rear14.9-30Reference
Length388 cmReference
Width182 cmReference
Height175 cmReference
Height255 cmReference
Ground clearance32 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
