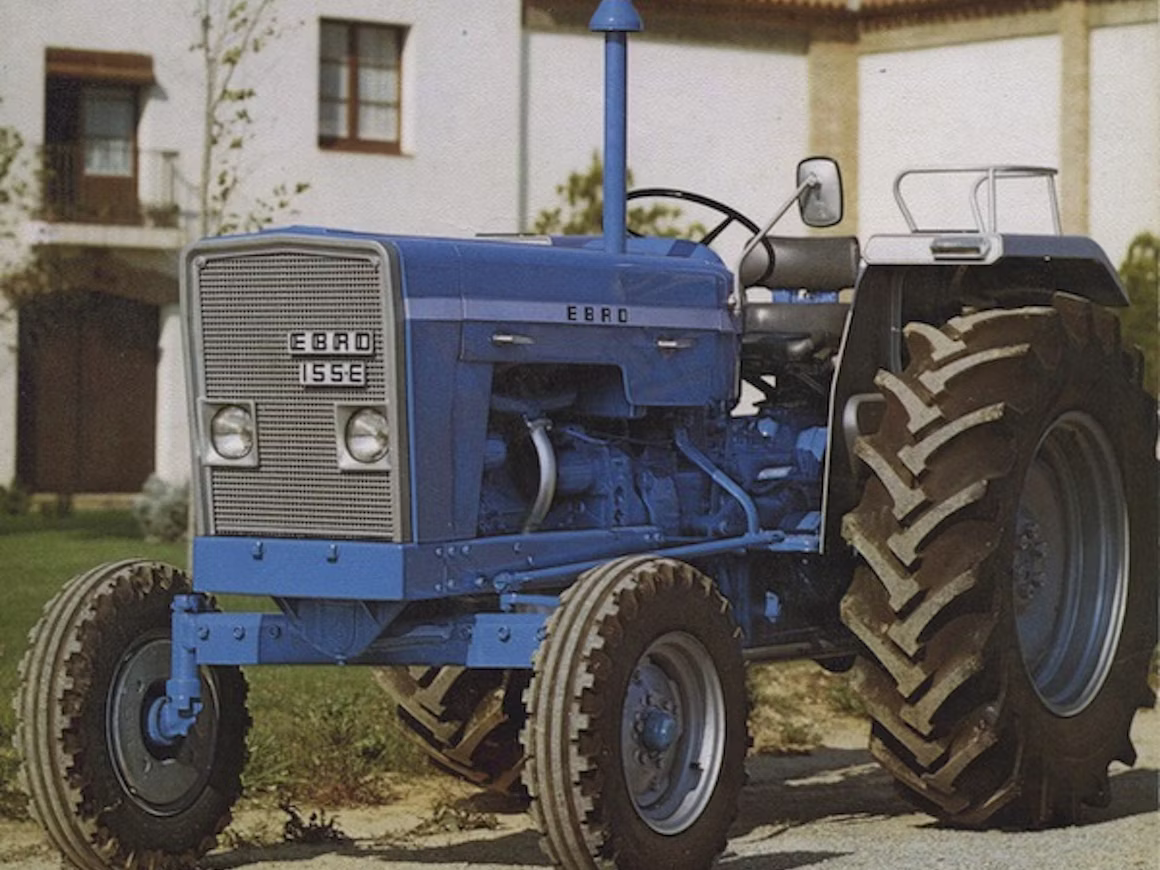

The Ebro 155E is a tractor model with a rated output of 55 hp — making it one of the more compact options in its class. It is powered by a 4-cylinder diesel liquid-cooled engine, driving through two-wheel drive with a 6-speed gearbox. Listed weight is 2300 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
2300 kg
Catalogue coverage
Variants represented
2
Richest spec table
47 rows
Recorded power
55 hp
Recorded weight
2300 kg
Transmissions
6-speed gear
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerEbroReference
Built in SpainReference
Two-wheel driveReference
Manual steeringReference
Wet disc brakesReference
Open operator station.Reference
Engine
Ebro 3.6L 4-cyl dieselReference
Engine41.0 kWReference
EbroReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Power41.0 kWReference
Air cleaneroil bathReference
Compression16.5:1Reference
Rated RPM1800Reference
Starter volts12Reference
Oil capacity6.8 LReference
Coolant capacity15.0 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutch279mm dry discReference
Capacities
Fuel65.1 LReference
PTO & Hydraulics
Hydraulic system40.1 LReference
Capacity40.1 LReference
Rear TypeIIReference
Rear PTO Type540 (1.375)Reference
Engine RPM549@1620Reference
Dimensions
Weight2300 kgReference
Front tire7.00x16Reference
Rear tire11x36Reference
Ag front7.00x16Reference
Ag rear11x36Reference
Ag rear12x16Reference
Ag rear12x38Reference
Ag rear14x30Reference
Length331 cmReference
Width201 cmReference
Height (steering wheel)165 cmReference
Ground clearance40 cmReference
Front tread127 to 186 cmReference
Rear tread132 to 183 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Battery AH12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
