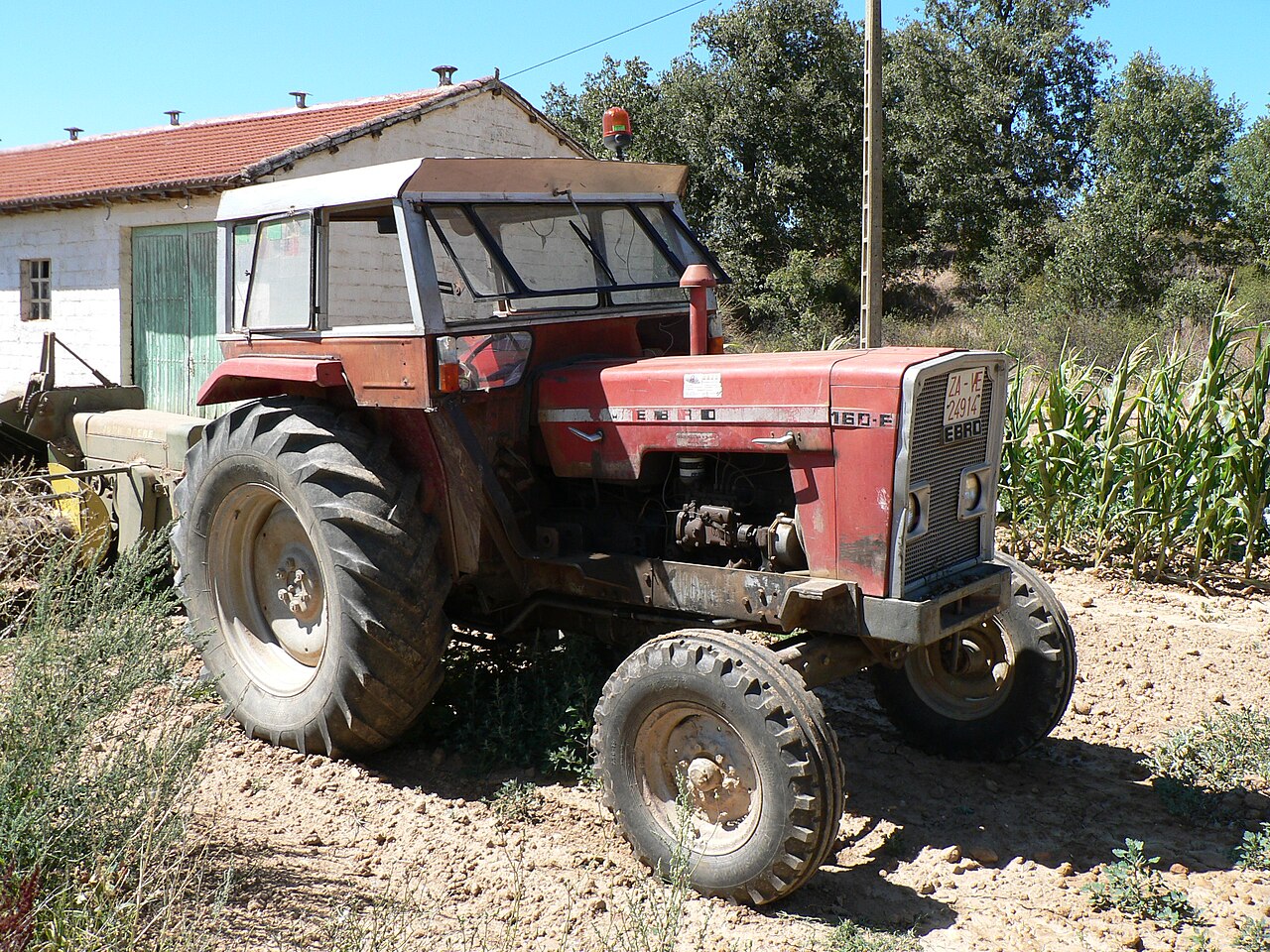

The Ebro 160E is a tractor model with an approximate engine output of 61 hp, positioning it within the lighter category of its class. It features a 4-cylinder diesel liquid-cooled engine, coupled with two-wheel drive and a 6-speed gearbox. The tractor's operating weight is specified at 2399 kg, and it is suitable for operations covering up to 200 ac.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
61 hp
Weight
2399 kg
Catalogue coverage
Variants represented
2
Richest spec table
46 rows
Recorded power
61 hp
Recorded weight
2399 kg
Transmissions
6-speed gear
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerEbroReference
Built in SpainReference
Two-wheel driveReference
Manual steeringReference
Wet disc brakesReference
Open operator station.Reference
Engine
Ebro 3.6L 4-cyl dieselReference
Engine45.5 kWReference
EbroReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Power45.5 kWReference
Air cleaneroil bathReference
Compression16.5:1Reference
Rated RPM2100Reference
Starter volts12Reference
Oil capacity6.8 LReference
Coolant capacity15.0 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutch279mm dry discReference
Capacities
Fuel65.1 LReference
PTO & Hydraulics
Hydraulic system40.1 LReference
Capacity40.1 LReference
Rear TypeIIReference
Rear PTO Type540 (1.375)Reference
Engine RPM543@1950Reference
Dimensions
Weight2399 kgReference
Front tire7.00x16Reference
Rear tire12x36Reference
Ag front7.00x16Reference
Ag rear12x36Reference
Ag rear14x30Reference
Ag rear12x38Reference
Length331 cmReference
Width201 cmReference
Height (steering wheel)165 cmReference
Ground clearance40 cmReference
Front tread127 to 186 cmReference
Rear tread132 to 183 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Battery AH12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
