Tractor · Unverified

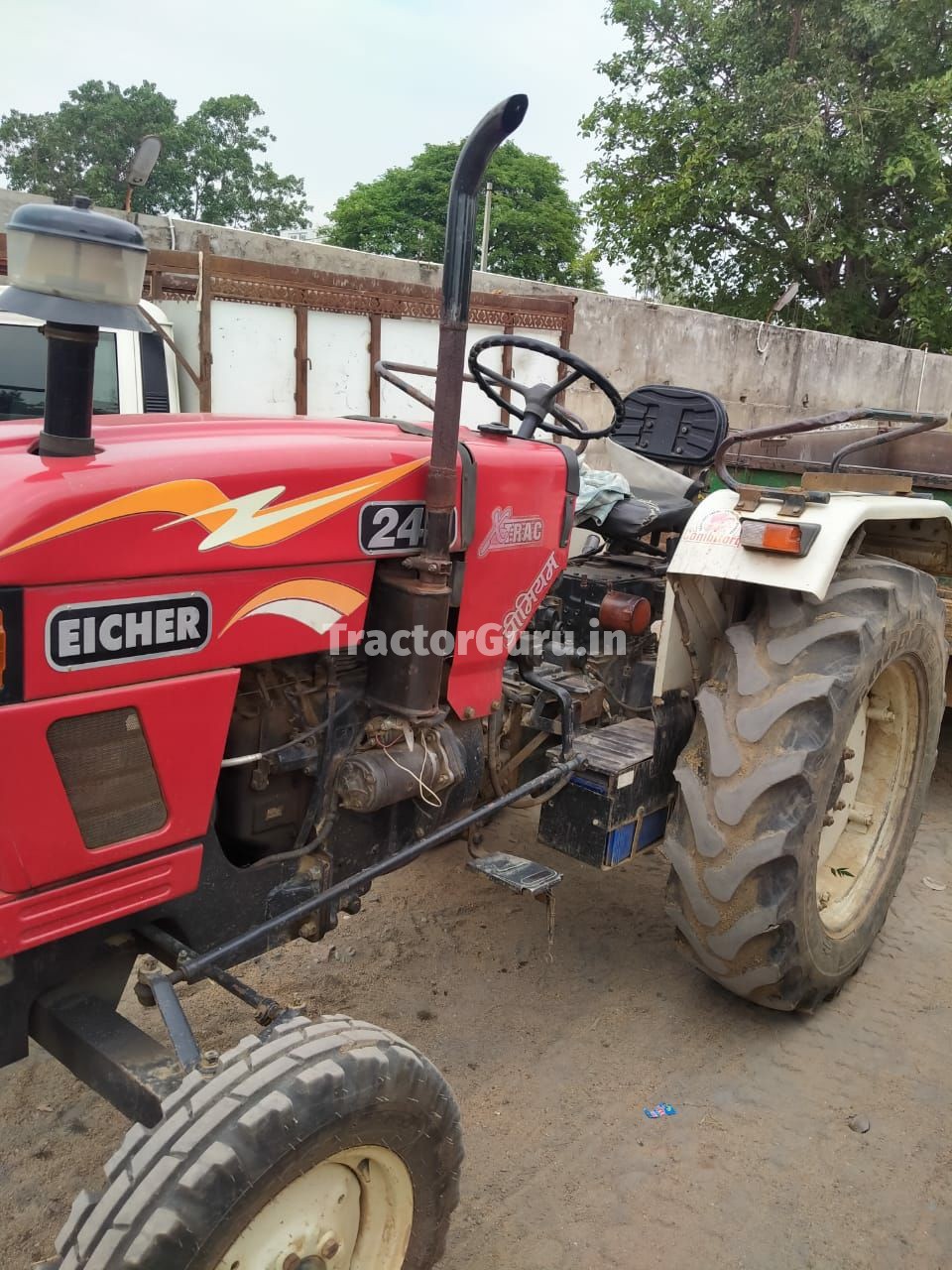

Eicher 242 XTRAC
Eicher 242 XTRAC · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1735 kg
Hover a source tag to verify
Overview
ManufacturerEicher (a part of TAFE)Reference
Built in IndiaReference
Two-wheel driveReference
Manual steeringReference
Mechanical dry disc brakesReference
Open operator station.Reference
Engine
Eicher 1.6L 1-cyl dieselReference
Engine17.9 kWReference
Eicher 115 NCReference
dieselReference
1-cylinderReference
air-cooledReference
Displacement1.6 LReference
Bore/Stroke115 x 150 mmReference
Power17.9 kWReference
Fuel systemdirect injectionReference
Rated RPM1650Reference
StarterelectricReference
Starter volts12Reference
Oil capacity5.5 LReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch232mm mechanical dry discReference
Oil capacity25.0 LReference
Capacities
Fuel34.8 LReference
PTO & Hydraulics
Hydraulic system25.0 LReference
Typeopen centerReference
Capacity25.0 LReference
Rear lift899 kgReference
Rear PTOliveReference
Rear PTO Type1000Reference
Dimensions
Wheelbase188 cmReference
Weight1735 kgReference
Front tire6.00x16Reference
Rear tire12.4x28Reference
Standard tires (ag)Front: 6.00x16. Rear: 12.4x28Reference
Length325 cmReference
Width162 cmReference
Height203 cmReference
Ground clearance40 cmReference
Electrical
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Battery AH88Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
