Tractor · Unverified

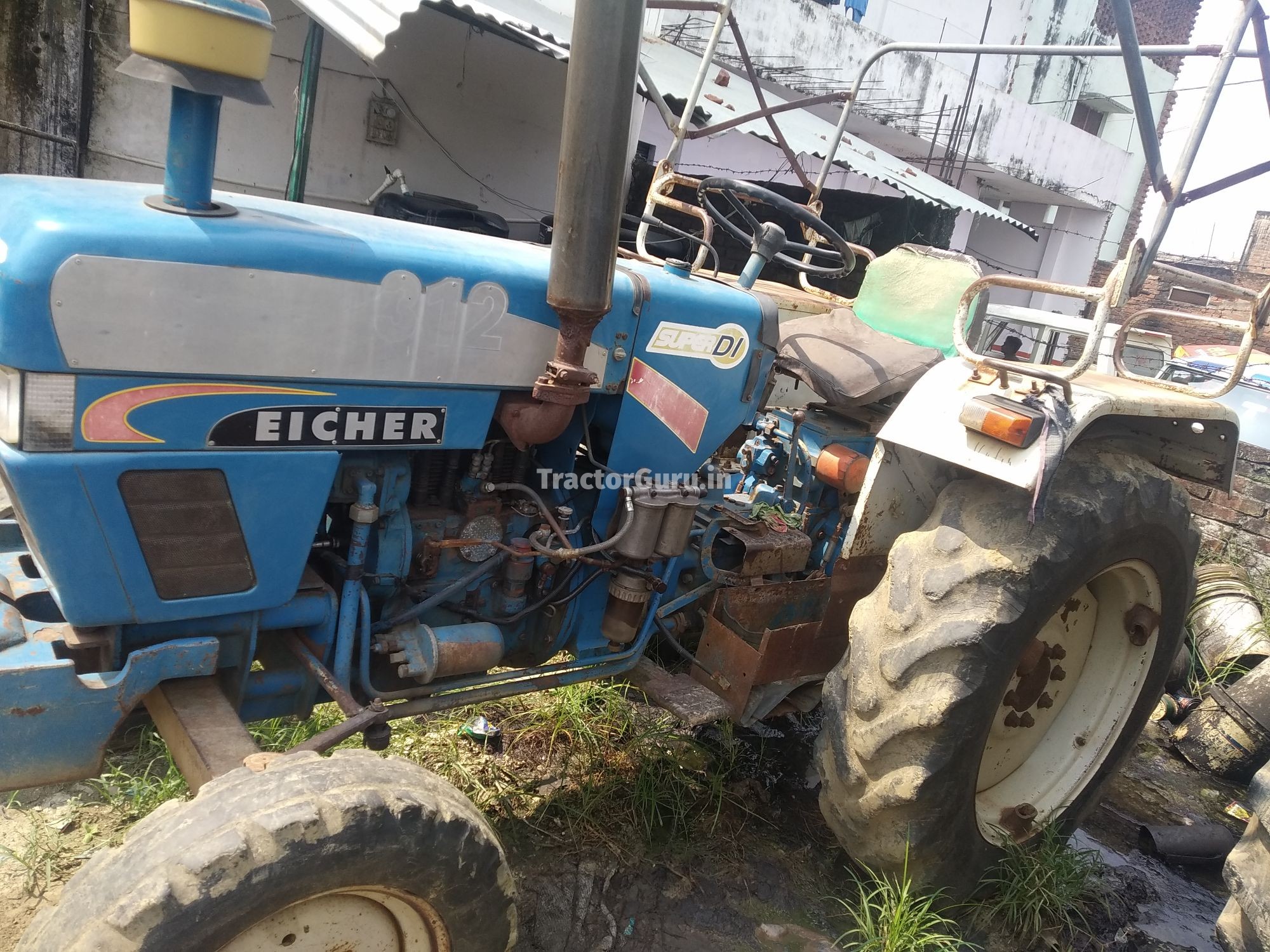

Eicher 312
Eicher 312 · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Weight
1900 kg
Hover a source tag to verify
Overview
ManufacturerEicher (a part of TAFE)Reference
Built in IndiaReference
Two-wheel driveReference
Manual steeringReference
Disc brakesReference
Open operator station.Reference
Engine
Eicher 2.0L 2-cyl dieselReference
Fuel tank45.0 LReference
Engine25.4 kWReference
Eicher 298 EIReference
dieselReference
2-cylinderReference
air-cooledReference
Displacement2.0 LReference
Bore/Stroke100 x 127 mmReference
Power25.4 kWReference
Fuel systemdirect injectionReference
Rated RPM2150Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchmechanical dry discReference
PTO & Hydraulics
Rear lift1000 kgReference
Rear PTOliveReference
Rear PTO Type1000Reference
Dimensions
Wheelbase186 cmReference
Weight1900 kgReference
Front tire6.00x16Reference
Rear tire12.4x28Reference
Standard tires (ag)Front: 6.00x16. Rear: 12.4x28Reference
Length342 cmReference
Width166 cmReference
Height225 cmReference
Ground clearance38 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Battery AH75Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
